Chapter 4: AMI BIOS
4-47
Wake on LAN Enable
Select Enabled to enable the capabiltiy to 'wake-up' the system
through the Ethernet port. The settings are Enabled and Disabled.
Pcie PII SSC
Use this feature PCIE PII SSC. Select Auto to keep the hardware default
with no BIOS override. Range is from 0.0% to 2.0%.

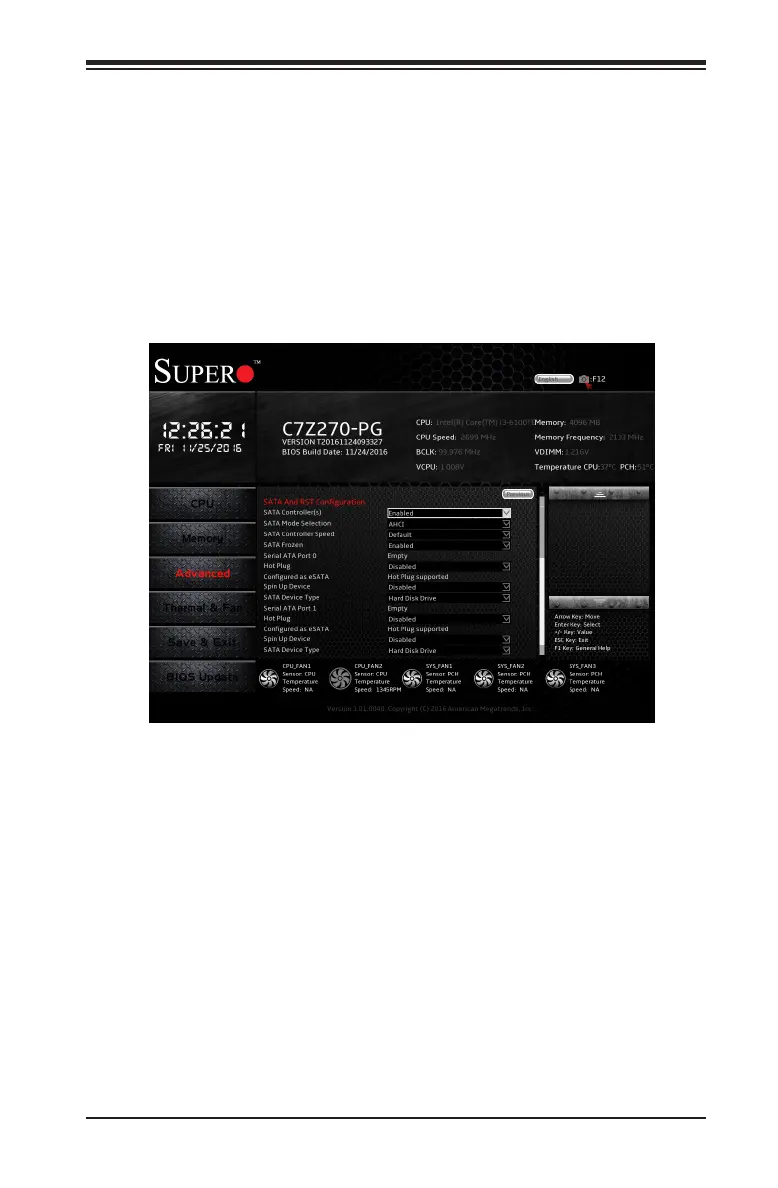

SATA and RST Configuration
SATA Controllers
Select Disabled to disable the onboard SATA Controllers. The settings
are Enabled and Disabled.
SATA Mode Selection
This item selects the mode for the installed SATA drives. The options are
AHCI and Intel RST Premium.
SATA Controller Speed
Use this option to specify the maximum speed the SATA controller can
support. The options are Default, Gen 1, Gen 2, and Gen 3.
