Chapter 4: AMI BIOS
4-59
4-6

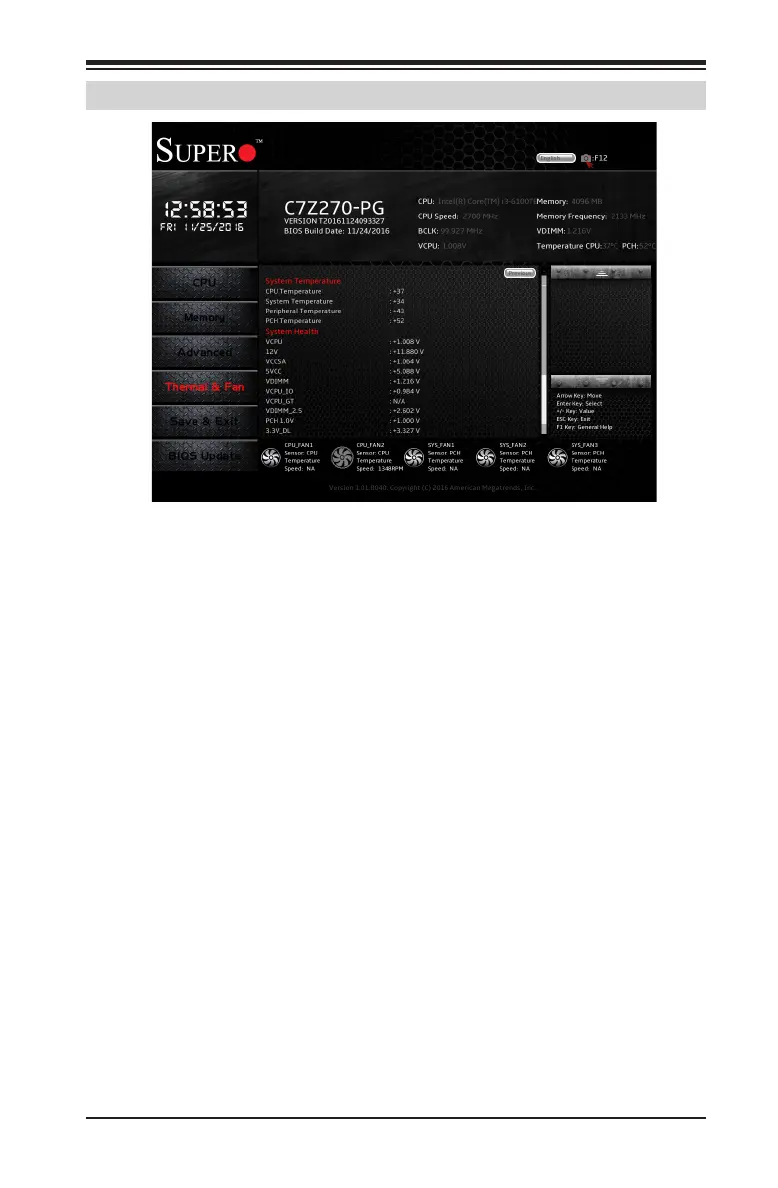

Thermal & Fan
System
T
emperature
The following items will be displayed:
•
CPU Temperature
- displays the CPU temperatur
e detected by
PECI.
•
System Temperature
- indicates the system internal tempera
-
ture.
•
Peripheral Temperature
- displays the detected peripheral d
e
-
vice temperature.
•
PCH Temperature
- indicates the detected PCH chip temperatur
e.
System
Health
The following items will be displayed (V
oltage):
•
VCPU
•
12V
•
VCCSA
•
5VCC
130
132
