Supero C7Z270-PG User Manual

Chapter 2: Installation
2-19
Power Button
OH/Fan Fail
LED
1
NIC1 LED
Reset Button
2
HDD LED
Power LED
Reset
PWR
Vcc
Ground
Ground
X
X
Vcc
Vcc
Vcc
1516
NIC2 LED
Vcc

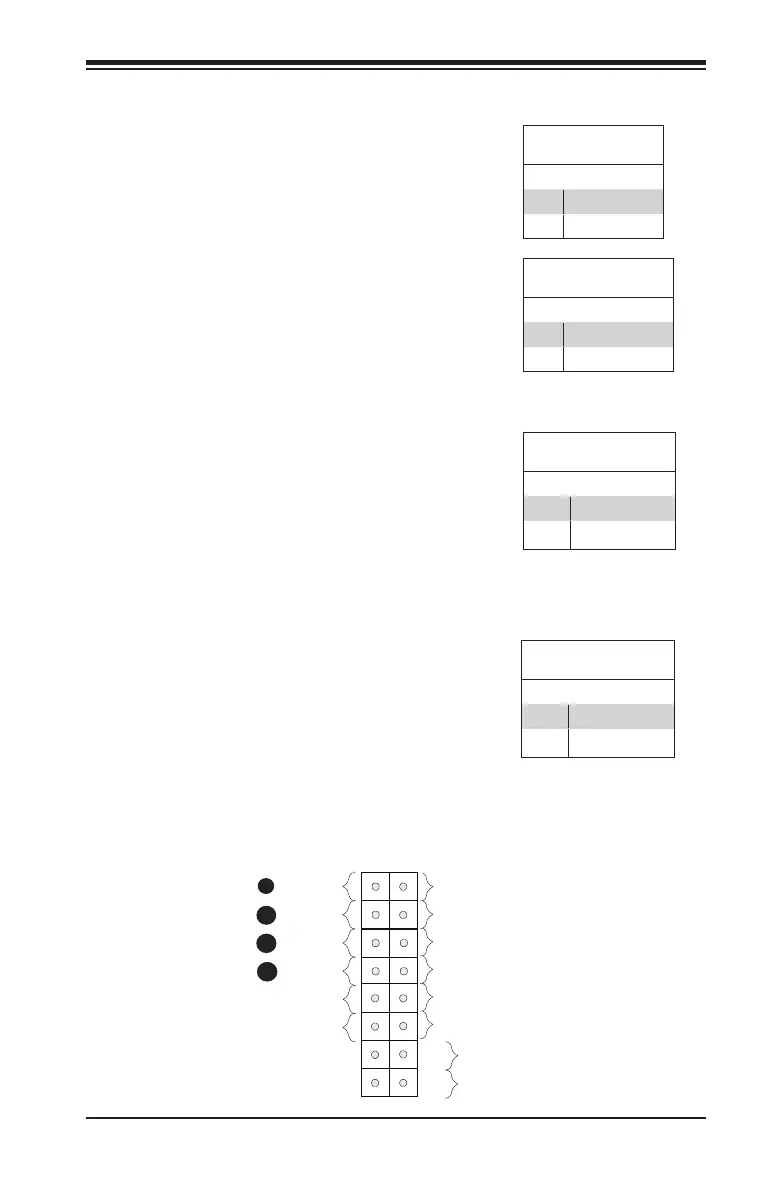

Front Control Panel Pin Definitions
Power LED
The Power LED connection is located on
pins 15 and 16 of JF1. Refer to the table
on the right for pin denitions.
Power LED
Pin Denitions (JF1)
Pin# Denition
15 +5V
16 Vcc
A. PWR LED
B. HDD LED
C. NIC1 LED
D. NIC2 LED
A
HDD LED
The HDD LED connection is located on
pins 13 and 14 of JF1. Attach a cable
here to indicate the status of HDD-
related activities, including IDE, SATA
activities. See the table on the right for
pin denitions.
HDD LED
Pin Denitions (JF1)
Pin# Denition
13 Vcc
14 HDD LED
NIC1 (LAN)
The NIC (Network Interface Controller)
LED connection for LAN port 1 is located
on pins 11 and 12 of JF1. Attach an
LED indicator to this header to display
network activity. Refer to the table on
the right for pin denitions.
LAN LED
Pin Denitions (JF1)
Pin# Denition
11 Vcc
12 NIC2 LED
C
D
NIC2 (LAN)
The NIC (Network Interface Controller)
LED connection for LAN port 2 is located
on pins 9 and 10 of JF1. Attach an LED
indicator to this header to display net-
work activity. Refer to the table on the
right for pin denitions.
LAN LED
Pin Denitions (JF1)
Pin# Denition
9 Vcc
10 NIC2 LED
B
