Chapter 2: Installation
2-21
PRESS FIT
J*
MH15
MH14
MH13
MH12
MH11
MH10
S12
JTBT
B1
JBT1
U6
JSTBY1
SP1
JD1
JF1
JSD1
FAN5
FAN1
FAN4
FAN2
FAN3
S8
JTPM1
JPW1
LED3
A
C
LED2
LED1
JPW2
JL2
JSPDIF_OUT
JI2C2
JI2C1
JL1
LED4
JPAC1
JPL2
JBR1
JVR1
JLED1
JPL1
JWD1
JPME2
DESIGNED IN USA
C7Z270-PG
REV:1.00
BIOS LICENSE
MAC CODE
BAR CODE
2
2-3:DISABLE
1-2:ENABLE
JPL2:LAN2
LAN2
LAN1
ON
PWR
RST
XOH/FF
NIC
NIC
1LED
HDD
LED
PWR
OFF:DISABLE
ON :ENABLE
JI2C1/JI2C2
AUDIO FP
3 PIN POWER LED
JLED1:
ON:BIOS RECOVERY
COM1
JTPM1:
TPM/PORT80
OFF:NORMAL
JBR1
JL1:
CHASSIS
INTRUSION
USB6/7
USB4/5
USB2/3
USB 14/15 (3.0)
PCIE M.2 CONNECTOR 1
CPU SLOT1 PCI-E 3.0 X8 (IN X16)
1-2:RST
2-3:NMI
WATCH DOG
JWD1:
CPU SLOT3 PCI-E 3.0 X16
U.2 CONNECTOR 1
U.2 CONNECTOR 2
I-SATA4
I-SATA5
BUZZER:3-4
JD1:
SPEAKER:1-4
PCH SLOT4 PCI-E 3.0 X4
I-SATA2
I-SATA3
2-3:ME MANUFACTURING MODE
1-2:NORMAL
JPME2:
CPU SLOT5 PCI-E 3.0 X8 (IN X 16)
1-2:ENABLE
2-3:DISABLE
JPAC1:AUDIO
I-SATA0
I-SATA1
CPU SLOT7 PCI-E 3.0 X16
SYS_FAN2
PCIE M.2 CONNECTOR 2
SYS_FAN3
HD AUDIO
USB 12/13 (3.1)
USB 10/11(3.1)
2-3:DISABLE
JPL1:LAN1
1-2:ENABLE
USB8/9(3.0)
POWER BUTTON
DIMMB1
DIMMB2
DIMMA1
DIMMA2
HDMI/DP
RESET BUTTON
KB/MOUSE USB 0/1
SYS_FAN1
CPU_FAN1
CLEAR CMOS
CPU_FAN2
CPU

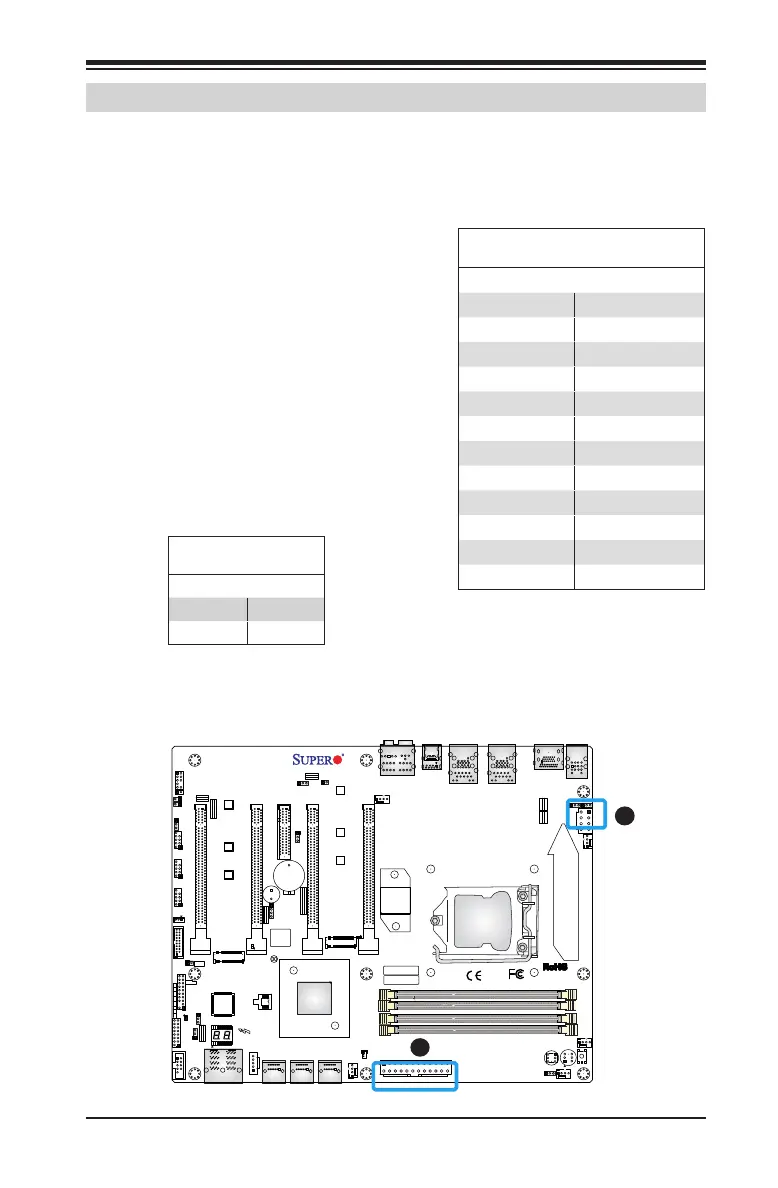

2-7 Connecting Cables
This section provides brief descriptions and pinout denitions for onboard
headers and connectors. Be sure to use the correct cable for each header
or connector.
A. 24-Pin ATX Main PWR
B. 8-Pin PWR
ATX Power 24-pin Connector
Pin Denitions (JPW1)
Pin# Denition Pin # Denition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 COM 3 COM
16 PS_ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.3V
(Required)
12V 8-pin Power Connec-
tor Pin Denitions
Pins Denition
1 through 4 Ground
5 through 8 +12V
ATX Main PWR & CPU PWR
Connectors (JPW1 & JPW2)
The 24-pin main power connector (JPW1)
is used to provide power to the moth-
erboard. The 8-pin CPU PWR connector
(JPW2) is also required for the processor.
These power connectors meet the SSI
EPS 12V specication. See the table on
the right for pin denitions.
A
B
