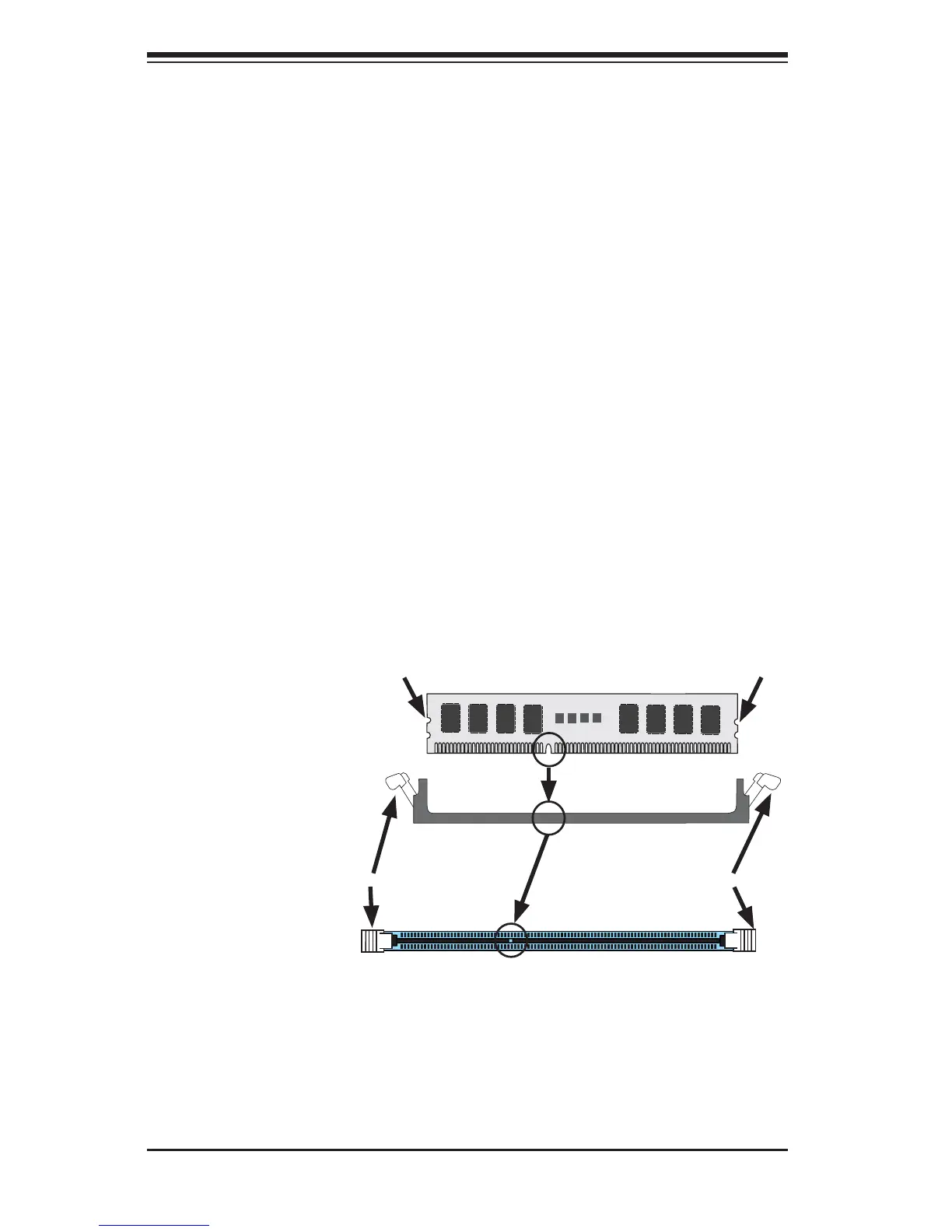

Figure 5-3. Installing DIMM into Slot
5-5 Installing Memory
Caution! Exercise extreme care when installing or removing DIMM modules to prevent
any possible damage.
Memory Support
The X9DRi-F supports up to 512 GB of DDR3 1866/1600/1333/1066/800 MHz
speed registered ECC 1GB, 2GB, 4GB, 8GB, 16GB and 32GB size SDRAM in 16
DIMM slots. See the following table for memory installation.
Memory speed support is dependent on the type of CPU used on the board.
Installing Memory Modules
1. Insert the desired number of DIMMs into the memory slots, starting with
DIMM 1A. For best memory performance, please install memory modules
of the same type and same speed on the memory slots as indicated on the
tables below.
2. Insert each DIMM module vertically into its slot. Pay attention to the notch
along the bottom of the module to avoid installing incorrectly (see Figure 5-3).
3. Gently press down on the DIMM module until it snaps into place in the slot.
Repeat for all modules.
To Install: Insert
module vertically and
press down until it
snaps into place.
Pay attention to the
alignment notch at
the bottom.
To Remove: Use
your thumbs to gently
push the release tabs
near both ends of the
module. This should
release it from the
slot.
Top View of DDR3 Slot
Release Tab Release Tab
Note: Notch should align with
the receptive key point on
the slot.
Notch
Notch
Front View
