Installing the LGA2011 Processor

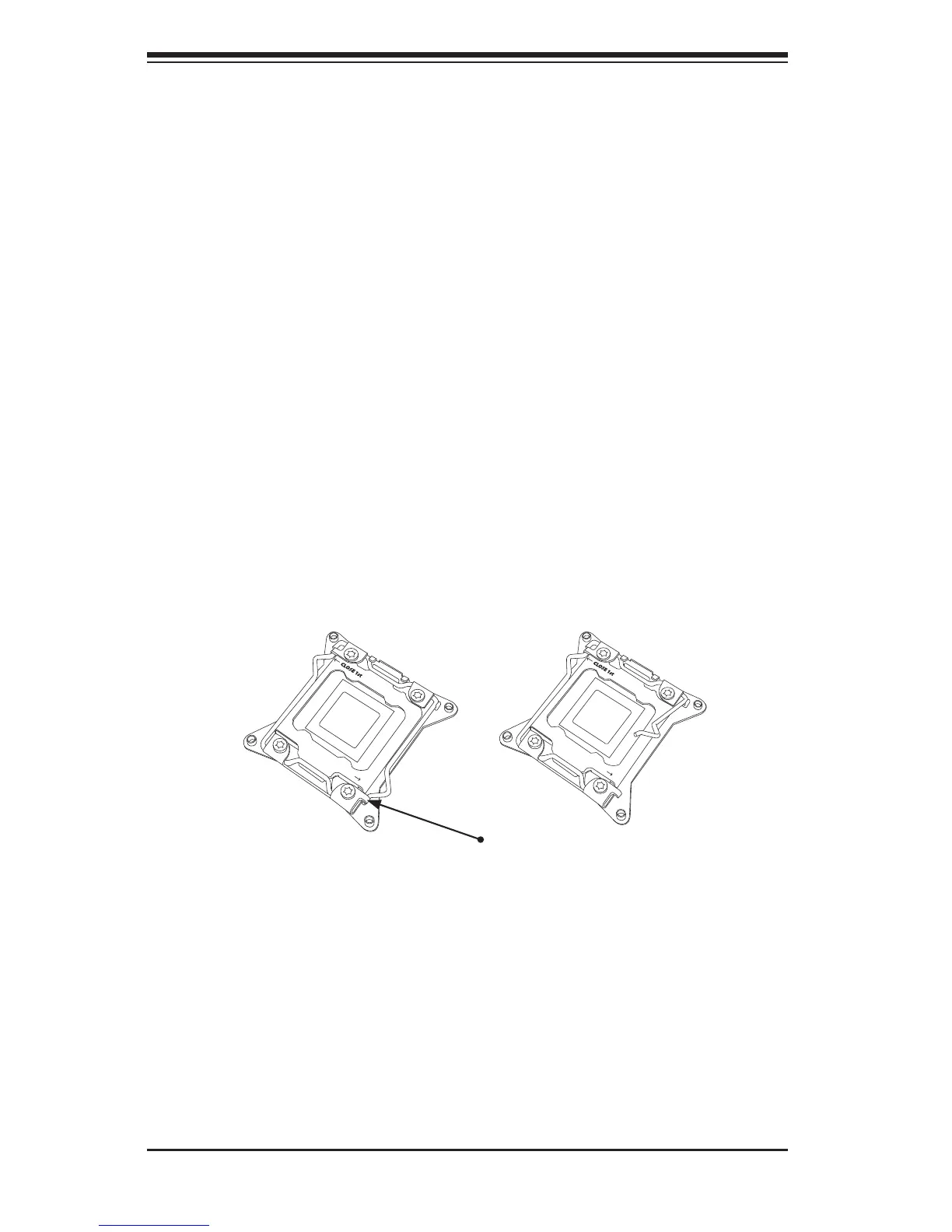

1. There are two load levers on the LGA2011 socket. To open the socket cover,
fi rst press and release the load lever labeled 'Open 1st'.
OPEN 1st
5-2 Processor and Heatsink Installation
Warning! When handling the processor package, avoid placing direct pressure on
the label area.
Warning! Always connect the power cord last, and always remove it before adding,
removing or changing any hardware components. Make sure that you install the
processor into the CPU socket before you install the CPU heatsink.
Important! If you buy a CPU separately, make sure that you use an Intel-certifi ed
multi-directional heatsink only.
Warning! Make sure to install the system board into the chassis before you install
the CPU heatsink.
Warning! When receiving a server board without a processor pre-installed, make
sure that the plastic CPU socket cap is in place and none of the socket pins are bent;
otherwise, contact your retailer immediately.
Refer to the Supermicro website for updates on CPU support and memory options.
