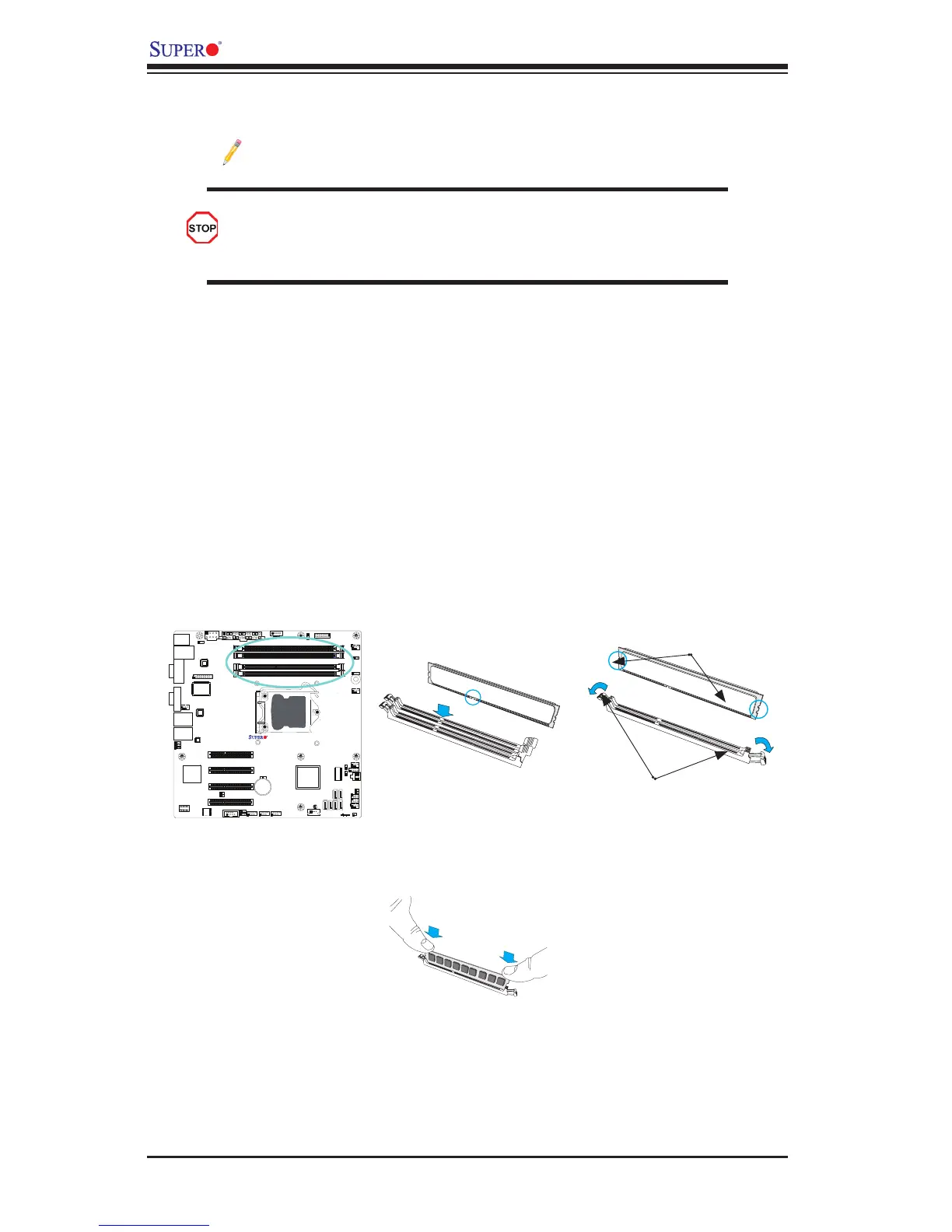

2-3 Installing DDR3 Memory
Note: Check the Supermicro website for recommended memory mod-
ules.
CAUTION
Exercise extreme care when installing or removing DIMM
modules to prevent any possible damage.
DIMM Installation
Insert the desired number of DIMMs into the memory slots, starting with 1.
DIMM1A (Slot 1, Channel 1). (For best performance, please use the memory
modules of the same type and speed in the same bank.)
Push the release tabs outwards on both ends of the DIMM slot to unlock it.2.
Align the key of the DIMM module with the receptive point on the memory 3.
slot.
Align the notches on both ends of the module against the receptive points on 4.
the ends of the slot.
Release Tabs
Notches
Use two thumbs together to press the notches on both ends of the module 5.
straight down into the slot until the module snaps into place.
Press both notches
straight down into
the memory slot.
Press the release tabs to the lock positions to secure the DIMM module into 6.
the slot.
Removing Memory Modules
Reverse the steps above to remove the DIMM modules from the motherboard.
