Supero X9SCM User Manual

Chapter 2: Installation
2-23

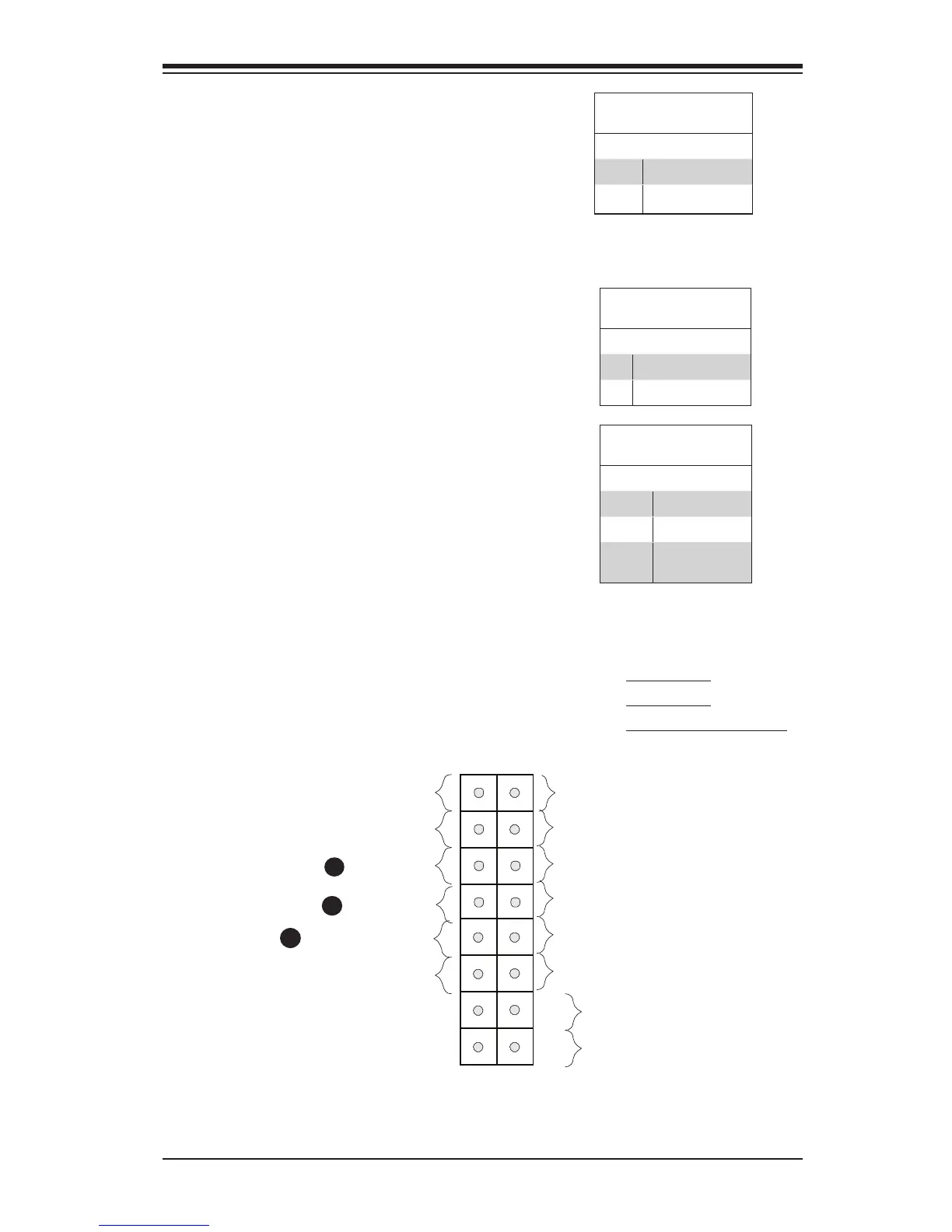

NIC1/NIC2 (LAN1/LAN2)
The NIC (Network Interface Controller)
LED connection for LAN port 1 is located
on pins 11 and 12 of JF1, and the LED
connection for LAN Port 2 is on Pins 9
and 10. NIC1 LED and NIC2 LED are
2-pin NIC LED headers. Attach NIC LED
cables to NIC1 and NIC2 LED indicators
to display network activities. Refer to the
table on the right for pin denitions.
LAN1/LAN2 LED
PinDenitions(JF1)
Pin# Denition
9/11 Vcc
10/12 LAN Active
A. NIC1 LED
B. NIC2 LED
C. OH/Fan Fail/UID LED
Overheat (OH)/Fan Fail/Front UID LED
Connect an LED cable to the Front UID and
OH/Fan Fail connections on pins 7 and 8
of JF1 to display UID (Unit ID) signals or
to provide advanced warnings for chassis
overheat/fan failure. Refer to the table on
the right for pin de nitions.
OH/Fan Fail LED
PinDenitions(JF1)
Pin# Denition
7 Vcc/Blue UID LED
8 OH/Fan Fail LED
OH/Fan Fail Indicator
Status
State Denition
Off Normal
On Overheat
Flash-
ing
Fan Fail
C
A
B
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
HDD LED
Power LED
Reset
PWR
LED_Anode+
LED_Anode+
LED_Anode+
UID LED
Ground
Ground
Power Fail LED
NIC2 LED
LED_Anode+
LED_Anode+
