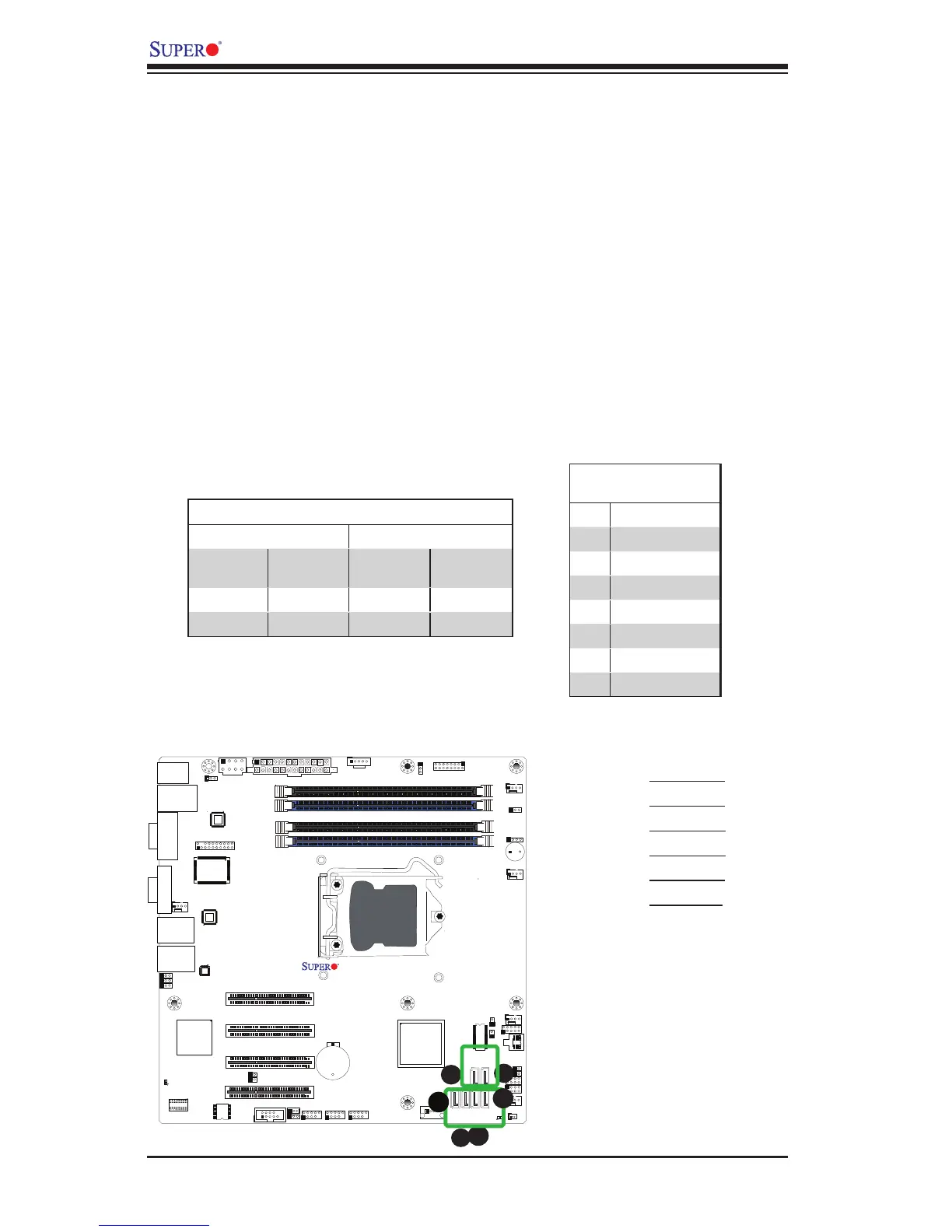

2-9 SATA Connections
Note the following conditions when connecting the Serial ATA disk drive cables:
• Be sure to use the correct cable for each connector. Refer to Page 1-1 for cables
that came with your shipment.
• A red mark on a wire indicates the location of pin 1.
A
SATA Connections
Six Serial ATA (SATA) connectors (I-SATA 0~5) are located on the motherboard.
For the X9SCM series, I-SATA Ports 0/1 support SATA-III, and I-SATA Ports 2~5
support SATA-II. For the X9SCL models, all SATA ports support SATAII. These
Serial Link connections provide faster data transmission than legacy Parallel ATA.
See the table on the right for pin denitions.
SATA Connectors
PinDenitions
Pin# Signal
1 Ground
2 SATA_TXP
3 SATA_TXN
4 Ground
5 SATA_RXN
6 SATA_RXP
7 Ground
B
A. I-SATA 0
B. I-SATA 1
C. I-SATA 2
D. I-SATA 3
E. I-SATA 4
F. I-SATA 5
E
D
SATA Connector Types
X9SCM/X9SCM-F X9SCL/X9SCL-F
Port# Connection
Type
Port# Connection
Type
I-SATA 0/1 SATA-III I-SATA 0~5 SATA-II
I-SATA 2~5 SATA-II
C
To Next Page
