Chapter 2: Installation
2-15
X9SCM/X9SCL(-F) Rev.1.0
2-5 Connectors/IO Ports
The I/O ports are color coded in conformance with the PC 99 specication. See the
gure below for the colors and locations of the various I/O ports.

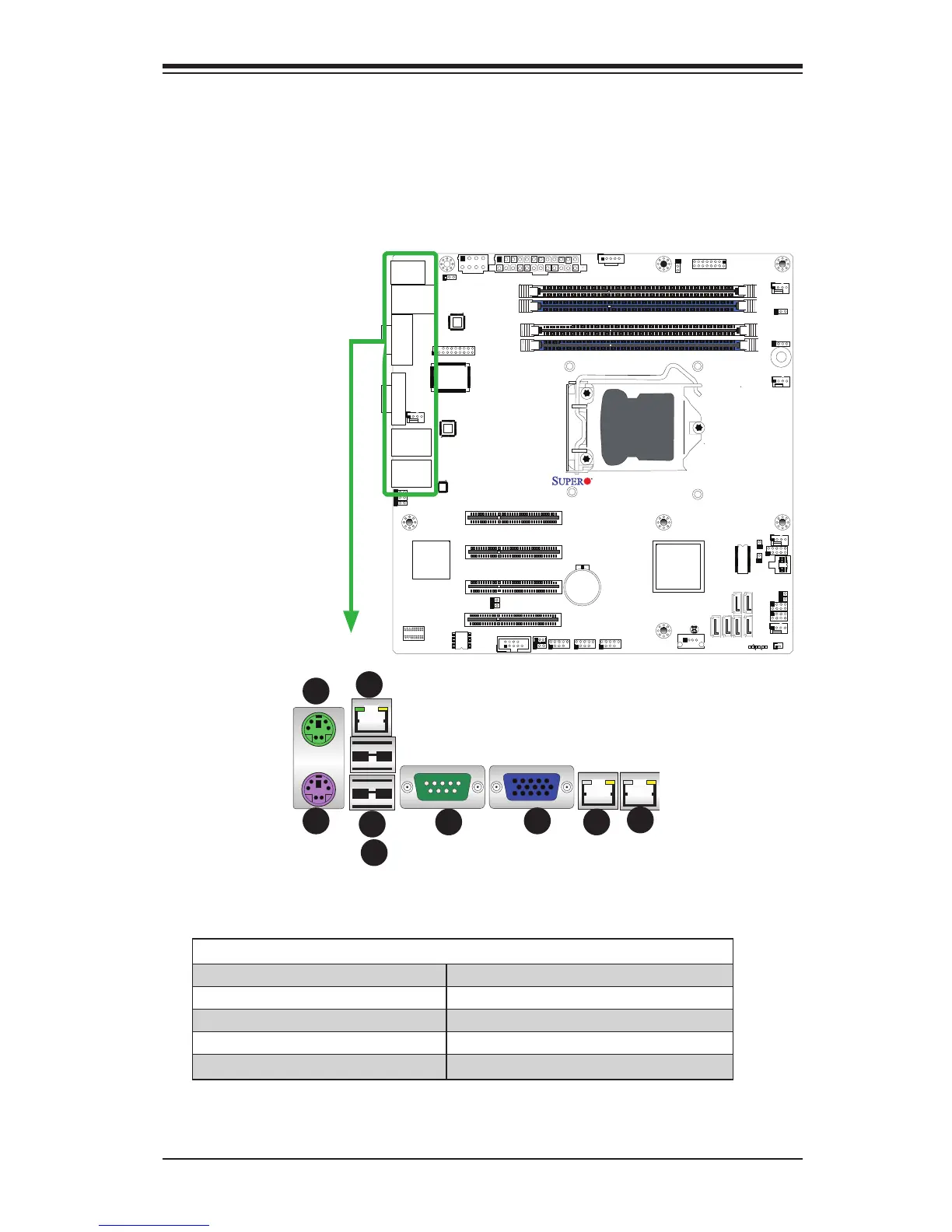

Backplane I/O Panel
1
2
3
4
5
6
7
8
9
Backplane I/O Panel
1. Keyboard (Purple) 6. COM 1
2. PS/2 Mouse (Green) 7. VGA
3. USB Port 0 8. LAN1
4. USB Port 1 9. LAN2
5. IPMI LAN (X9SCM-F/X9SCL-F Only)
