X9SCM/X9SCM-F/X9SCL/X9SCL-F User's Manual
Proper Battery Disposal
Warning! Please handle used batteries carefully. Do not damage the bat-
tery in any way; a damaged battery may release hazardous materials into
the environment. Do not discard a used battery in the garbage or a public
landll. Please comply with the regulations set up by your local hazardous
waste management agency to dispose of your used battery properly.
Battery Installation
To install an onboard battery, follow the steps 1& 2 above and continue 1.
below:
Identify the battery's polarity. The positive (+) side should be facing up.2.
Insert the battery into the battery holder and push it down until you hear a 3.
click to ensure that the battery is securely locked.
Warning: When replacing a battery, be sure to only replace it with the
same type.

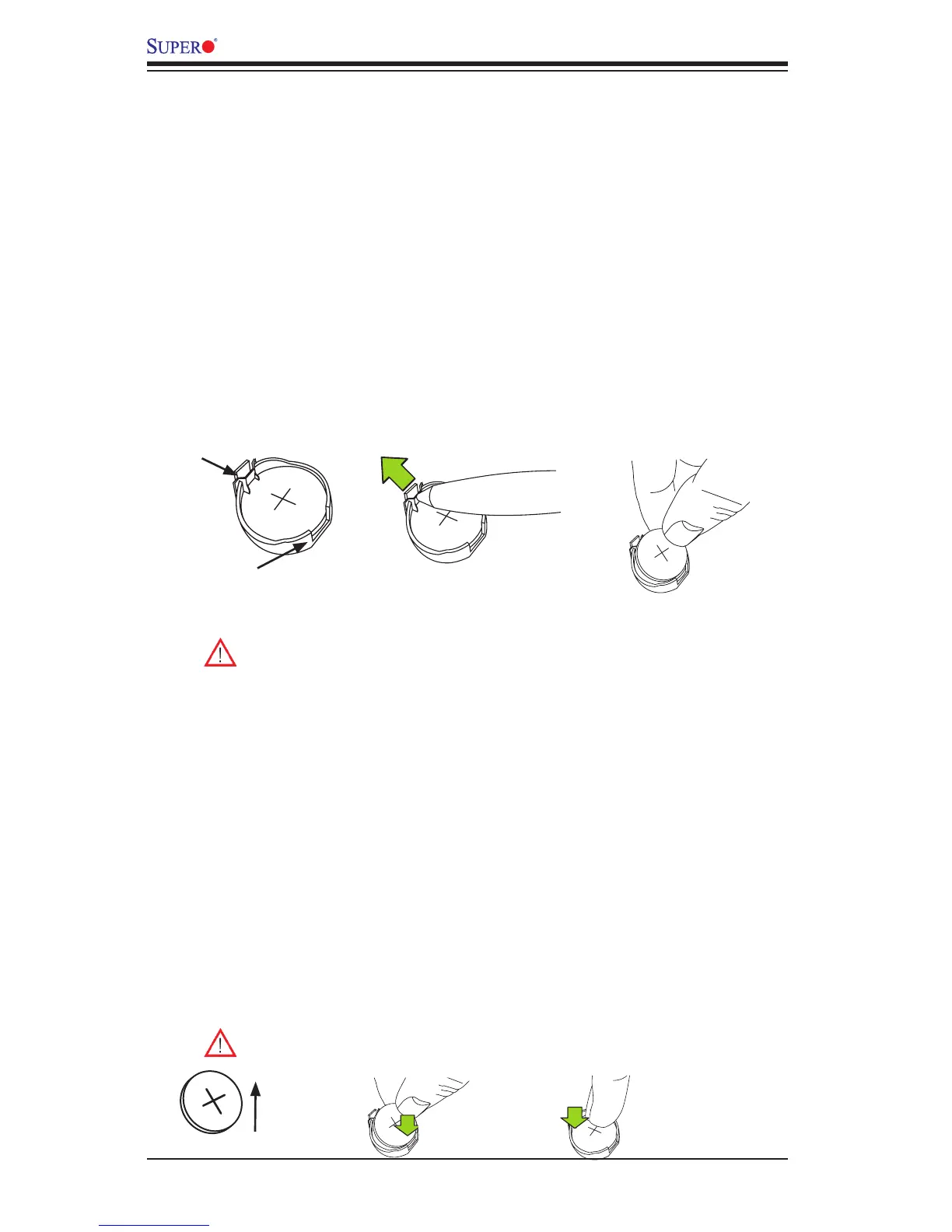

Battery
Lock
Battery
Battery Holder
1
2
3-4 Battery Removal and Installation
Battery Removal
To remove the onboard battery, follow the steps below:
Power off your system and unplug your power cable.1.
Locate the onboard battery as shown below.2.
Using a tool such as a pen or a small screwdriver, push the battery lock out-3.
wards to unlock it. Once unlocked, the battery will pop out from the holder.
Remove the battery.4.
This side up
Press down until
you hear a click.
