Sutron TesiMod TP22 - CAN Bus Fieldbus Interface

Interfaces of the Device
4-8
4.2 Field Bus Interfaces
4.2.1 CAN (X2.1/X2.2)
The opto decoupled interface for CAN bus connections is available to integrate the
device into a CAN structure. The CAN bus is a high speed bus in accordance with
ISO-DIS 11898.

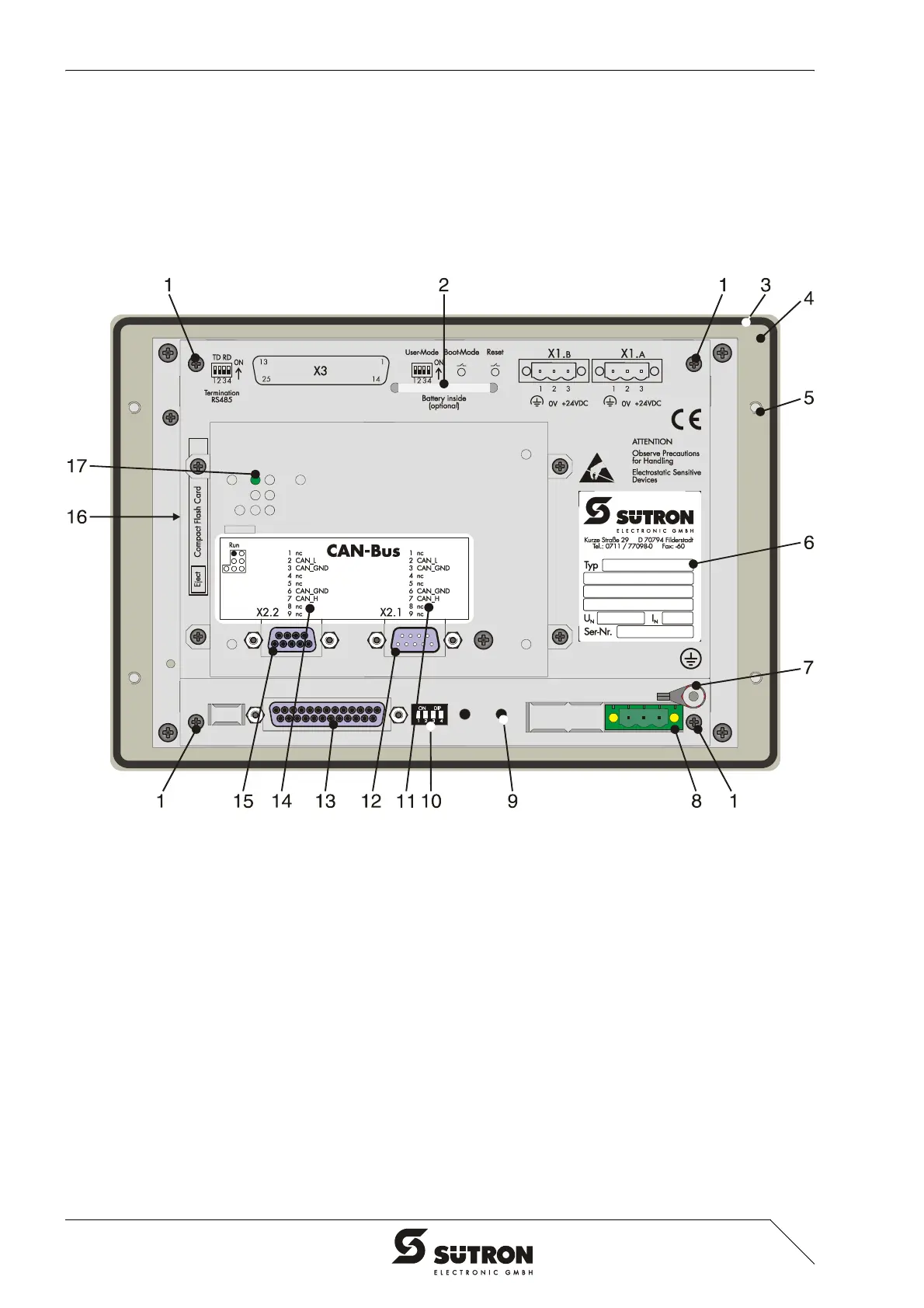

Figure 4-7 Rear view CAN
