Interfaces of the Device
4-20
4.2.5 MPI (X2)
The device can be integrated into a Siemens MPI bus structure using the interface
available for Siemens MPI connections.

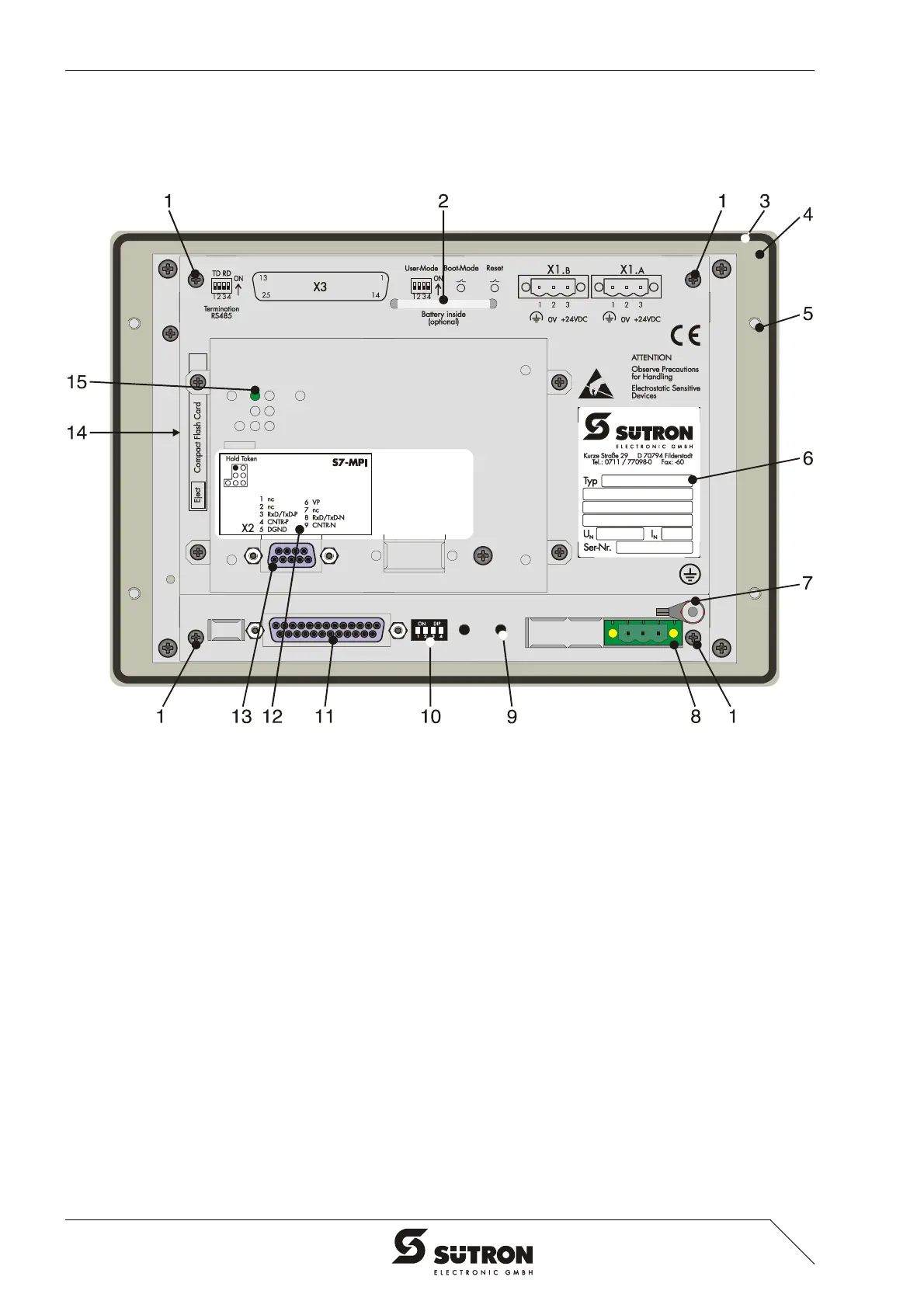

Figure 4-18 Rear View MPI
1. Fastening Screw
2. Cable Fastener for Battery
3. Seal
4. Front Panel
5. Mounting Bolt
6. Nameplate
7. Threaded Bolt for Protective Grounding
8. Connector X1.A (Supply Voltage)
9. Reset Key
10. User Mode Switch
11. Female Connector X3 (SER2 RS232c)
12. Assignment Female Connector X2 (MPI)
13. Female Connector X2 (MPI)
14. Compact Flash, Inserted on the Side (Option)
15. Diagnostics LED
