Structure of the control system and the component introduction NICE3000 User Manual
38
3.3.1.2 Appearance and measurement
CN1
89S52
70.2mm
56.2mm
mm
62.5mm
JP1
JP3
JP5
JP2
JP4
JP6
CN2
K1K2K3K4
S2
S1
A1A2AMB2
B1
BM
F5
TEST
BL1
BL2
IMPE
F4
F3
F2
F1
F0
C1
C2 C3 C4 C5 C6
84.0

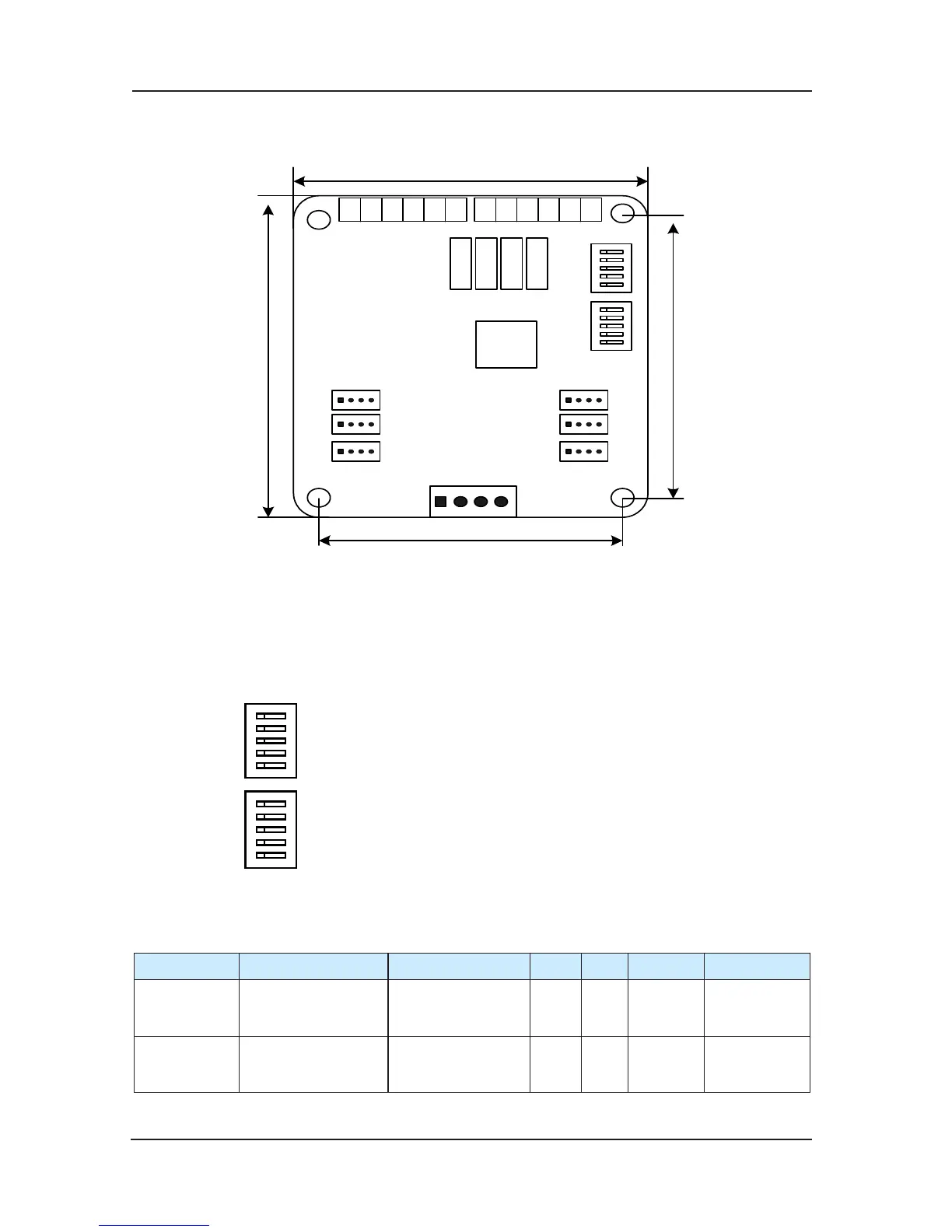

Fig 3-8 Installation measurement of MCTC-HCB-B
3.3.1.3 Installation and using introduction
Dial-code setting1)
3.3.1.4 Function specication
S1.1~S1.5 S2.1 S2.2 S2.3 S2.4 S2.5
HCB-B
Floor address
setting,range:031
MOD bus
terminal matching
resistance setting
OFF ON Detection
Floor address
setting
HPB
Floor address
setting,range:031
MOD bus
terminal matching
resistance setting
ON OFF Detection
Floor address
setting
S2
S1
F5
TEST
BL1
BL2
IMPE
F4
F3
F2
F1
F0
F5--- oor 5
TEST--- testing dial-code
BAOLIU1---reserved 1, used for function select
BAOLIU2----reserved 2, used for function select
IMPE--- matched resistance
F4---oor 4
F3---oor 3
F2--- Floor 2/voice station report oor selection 2
F1--- Floor 1/voice station report oor selection 1
F0--- Floor 0/voice station report oor selection 0
