Suzhou Monarch Control Technology MCTC-GCB-A User Manual

NICE3000 User Manual Structure of the control system and the component introduction
43
Name designation and model 3)
CTC is the short name of Suzhou Monarch Control Technology Co., Ltd, the HCB is the hall, car
display communication board, D means the segment LCD display, 1 means that this is the fi rst
kind of segment LCD hall call board, more display board of this series will be added follow-up.
Main function 4)

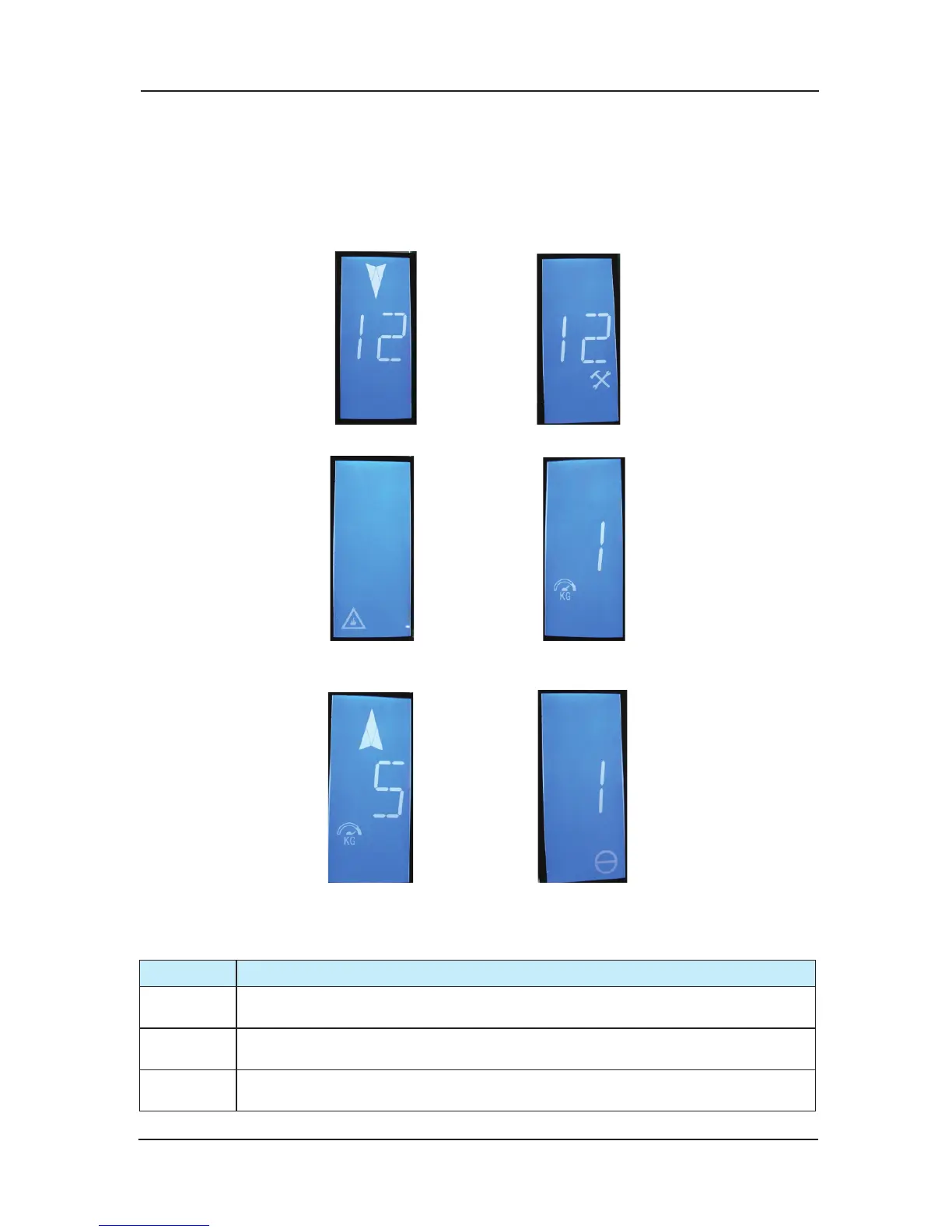

(1) Floor arrow display 2) Inspection display
(3) Fire-emergency state display:
the backlight display the fi re-control mark.
(5) Over-load display (6) Error display
Terminal specifi cation and electric wiring diagram 5)
Terminal Function
J1
Interface of lift-locked switch，2、3 are the switch value wiring pin，4 is the up
arrival light output
J2
Interface of fi re-control switch，2、3 are the switch value wiring pin，4 is the down
arrival light output
J3
Interface of up call button, 2、3 are the input switch value wiring pin，1、4 are the
power wiring pin，used to control button light
(4) Full display

Suzhou Monarch Control Technology MCTC-GCB-A Specifications

General

Brand	Suzhou Monarch Control Technology
Model	MCTC-GCB-A
Category	Controller
Language	English
