Suzuki drz 400E Service Manual

6-28 CHASSIS
INSPECTION
REAR SPROCKET

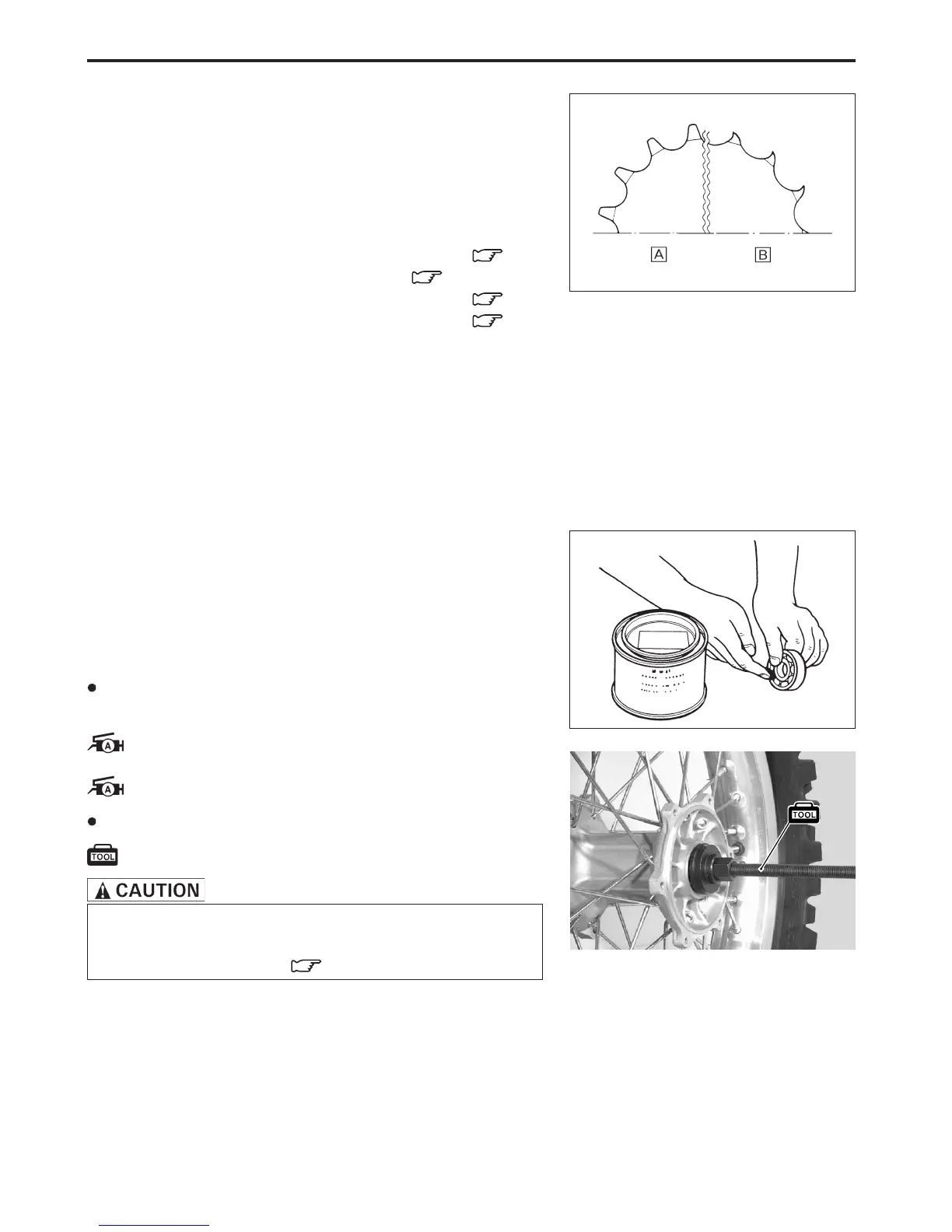

Inspect the rear sprocket for wear and damage. If any damages
are found, replace the sprocket and drive chain as a set.
È Normal wear
É Excessive wear
WHEEL HUB DUST SEALS...................................... 6-6
WHEEL BEARINGS .....................................
6-6 and 6-7
REAR WHEEL ...........................................................
6-7
REAR AXLE...............................................................
6-7
REASSEMBLY AND REMOUNTING
Reassemble and remount the rear wheel in the reverse order
of removal and disassembly. Pay special attention to the follow-
ing points:
WHEEL BEARINGS
Apply SUZUKI SUPER GREASE “A” to the wheel bearings.
For USA
99000-25030: SUZUKI SUPER GREASE “A”
For the other countries
99000-25010: SUZUKI SUPER GREASE “A”
Install the wheel bearings using the special tool.
09941-34513: Bearing installer set
First, install the right wheel bearing, and then install
the left wheel bearings. The sealed cover on the wheel
bearing must face out. ( 6-26)
