Suzuki drz 400E Service Manual

ENGINE 3-11
ENGINE DISASSEMBLY

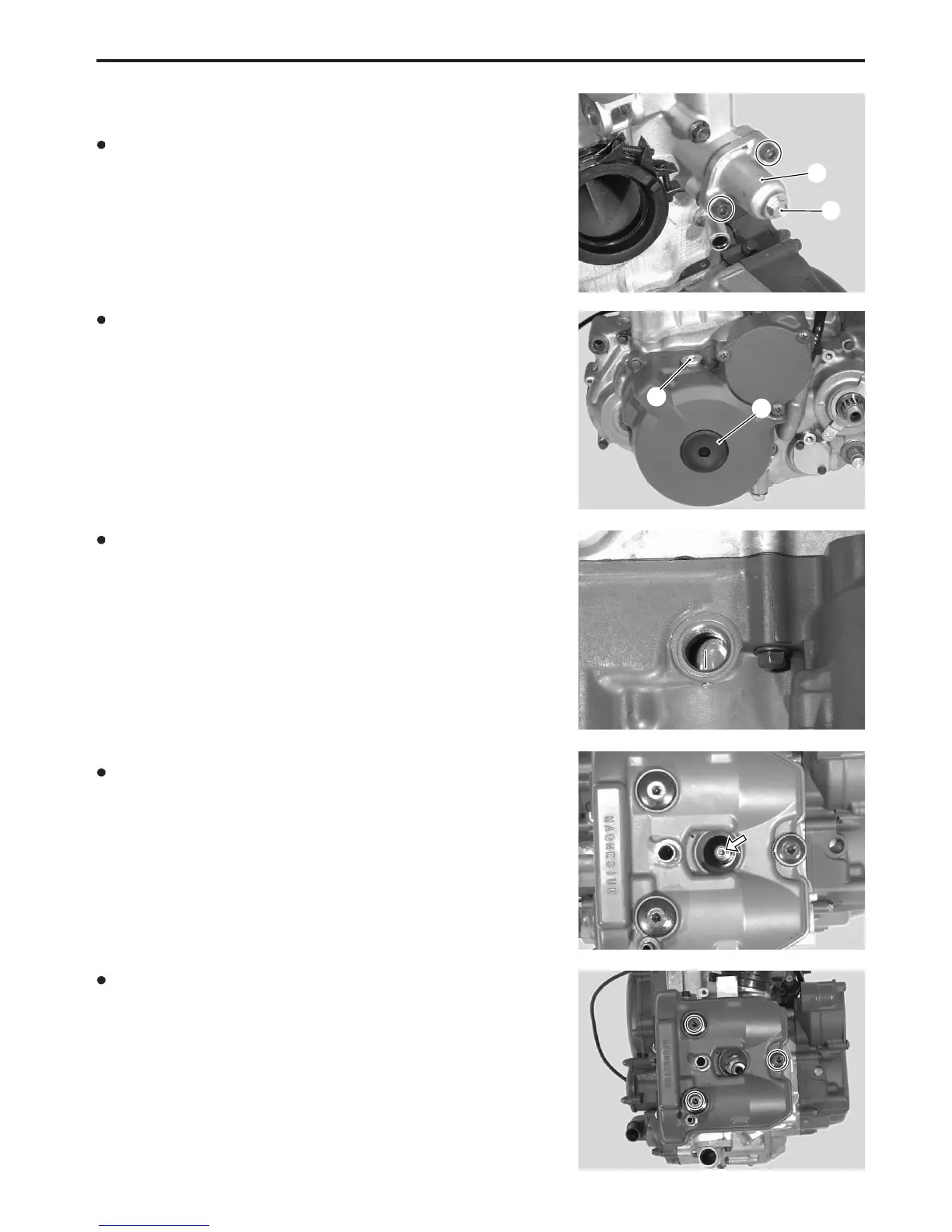

Remove the cap bolt 1 and cam chain tension adjuster 2.
Remove the top-dead-center (TDC) plug 3 and generator
cover cap 4.
Turn the generator rotor until the “T” line on the generator
rotor is aligned with the center of the hole in the generator
cover.
NOTE:
When removing the cylinder head cover, the piston must be at
TDC of the compression stroke.
Remove the spark plug.
Remove the cylinder head cover bolts in diagonal stages,
and then remove the cylinder head cover.
2
1
4
3
T
T

Suzuki drz 400E Specifications

General

Displacement	398 cc
Compression Ratio	12.2:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	110/100-18
Engine Type	4-stroke, DOHC
Bore x Stroke	90.0 mm x 62.6 mm
Fuel System	Mikuni BSR36 carburetor
Front Brakes	Disc
Rear Brakes	Disc
Fuel Tank Capacity	10.0 L (2.6 US gallons)
Overall Width	825mm (32.5 inches)
Ground Clearance	315 mm (12.4 in)
Seat Height	935 mm (36.8 in.)
Curb Weight	138 kg (304 lbs)
Dry Weight	119 kg (262 lbs.)
