Suzuki drz 400E Service Manual

ELECTRICAL SYSTEM 7-7

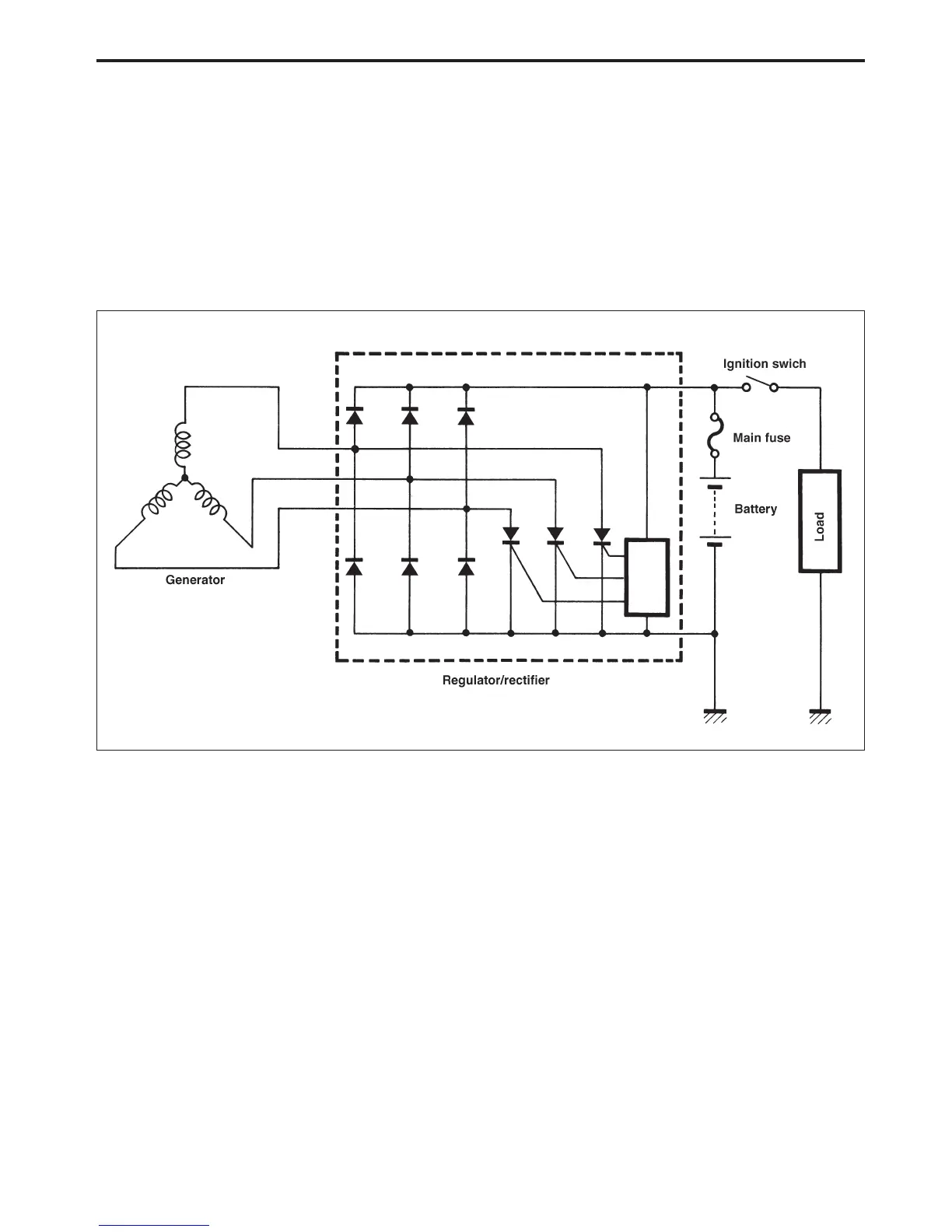

CHARGING SYSTEM (DR-Z400E)
DESCRIPTION
The charging system consists of a generator, regulator/rectifier, and battery. The AC current, which is gener-
ated by the generator, is converted by the regulator/rectifier into DC current. The regulator/rectifier is one
unit with two functions. The regulator prevents overcharging of the battery by grounding the excessive AC
current. The rectifier changes the AC current, which is produced by the generator, to the DC current.
All of these components work together to maintain a correct and constant voltage and to prevent the battery
from overcharging.

Suzuki drz 400E Specifications

General

Displacement	398 cc
Compression Ratio	12.2:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	110/100-18
Engine Type	4-stroke, DOHC
Bore x Stroke	90.0 mm x 62.6 mm
Fuel System	Mikuni BSR36 carburetor
Front Brakes	Disc
Rear Brakes	Disc
Fuel Tank Capacity	10.0 L (2.6 US gallons)
Overall Width	825mm (32.5 inches)
Ground Clearance	315 mm (12.4 in)
Seat Height	935 mm (36.8 in.)
Curb Weight	138 kg (304 lbs)
Dry Weight	119 kg (262 lbs.)
