Suzuki drz 400E Service Manual

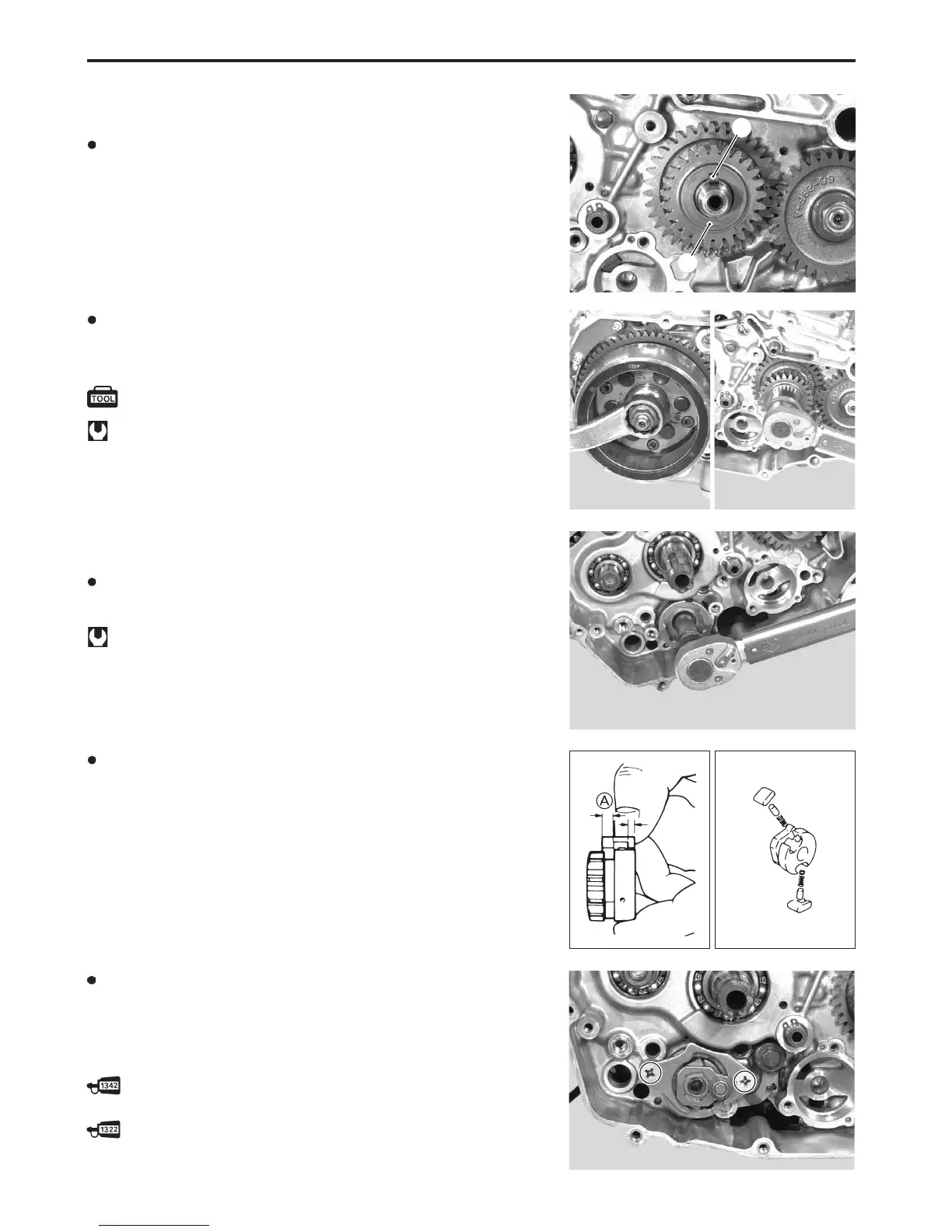

3-52 ENGINE
Apply a small quantity of THREAD LOCK “1342” or THREAD
LOCK SUPER “1322” to the pawl lifter screws, and then tighten
them securely.
For USA
99000-32050: THREAD LOCK “1342”
For the other countries
99000-32110: THREAD LOCK SUPER “1322”
PRIMARY DRIVE GEAR
Install the key 1 and primary drive gear 2.
Hold the generator rotor using the special tool (DR-Z400) or
a 26-mm offset wrench (DR-Z400E), and then tighten the
primary drive gear nut to the specified torque.
09930-44913: Rotor holder
Primary drive gear nut: 110 N·m (11.0 kgf-m, 79.5 lb-ft)
GEARSHIFT CAM DRIVEN GEAR
Tighten the gearshift cam driven gear bolt to the specified
torque.
Gearshift cam driven gear bolt:
24 N·m (2.4 kgf-m, 17.5 lb-ft)
Install each pawl lifter into the gearshift cam driven gear. The
large shoulder A must face to the outside.
1
2

Suzuki drz 400E Specifications

General

Displacement	398 cc
Compression Ratio	12.2:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	110/100-18
Engine Type	4-stroke, DOHC
Bore x Stroke	90.0 mm x 62.6 mm
Fuel System	Mikuni BSR36 carburetor
Front Brakes	Disc
Rear Brakes	Disc
Fuel Tank Capacity	10.0 L (2.6 US gallons)
Overall Width	825mm (32.5 inches)
Ground Clearance	315 mm (12.4 in)
Seat Height	935 mm (36.8 in.)
Curb Weight	138 kg (304 lbs)
Dry Weight	119 kg (262 lbs.)
