Suzuki GSF1200S User Manual

Starting System: 1I-3
Schematic and Routing Diagram

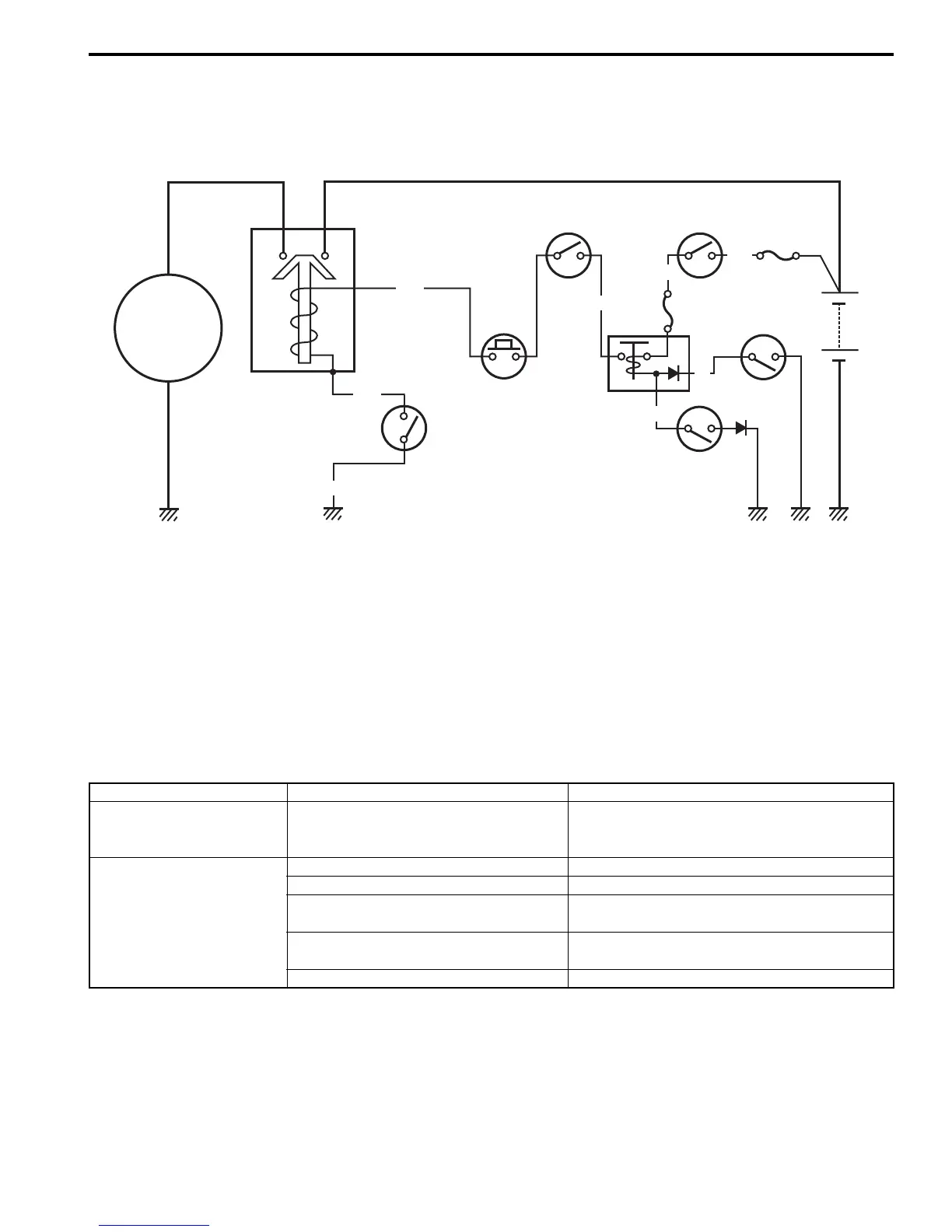

Starting System Diagram
B649G11902001
Refer to “Wire Color Symbols: in Section 0A”.
Component Location
Starting System Components Location
B649G11903001
Refer to “Electrical Components Location: in Section 0A”.
Diagnostic Information and Procedures
Starting System Symptom Diagnosis
B649G11904004
B/Bl
Bl/B
Bl
G
B/O
B/R
Starter
motor
Ignition
switch
Fuse (30 A)
Side-stand
switch
Starter relay
Engine stop
switch
Starter
button
Turn signal/
side-stand relay
Fuse
(15 A)
Gear
position
switch
Battery
Clutch lever
position switch
B/W
B/Y
I649G1190001-01
Condition Possible cause Correction / Reference Item
Engine does not turn
though the starter motor
runs
Faulty starter clutch Replace.
Starter button is not
effective
Run down battery. Repair or replace.
Defective switch contacts. Replace.
Brushes not seating properly on starter
motor commutator.
Repair or replace.
Defective starter relay or starter interlock
switch.
Replace.
Defective main fuse. Replace.
