Suzuki GSF1200S User Manual

2D-4 Wheels and Tires:
Front Wheel Assembly Removal and Installation
B649G12406005

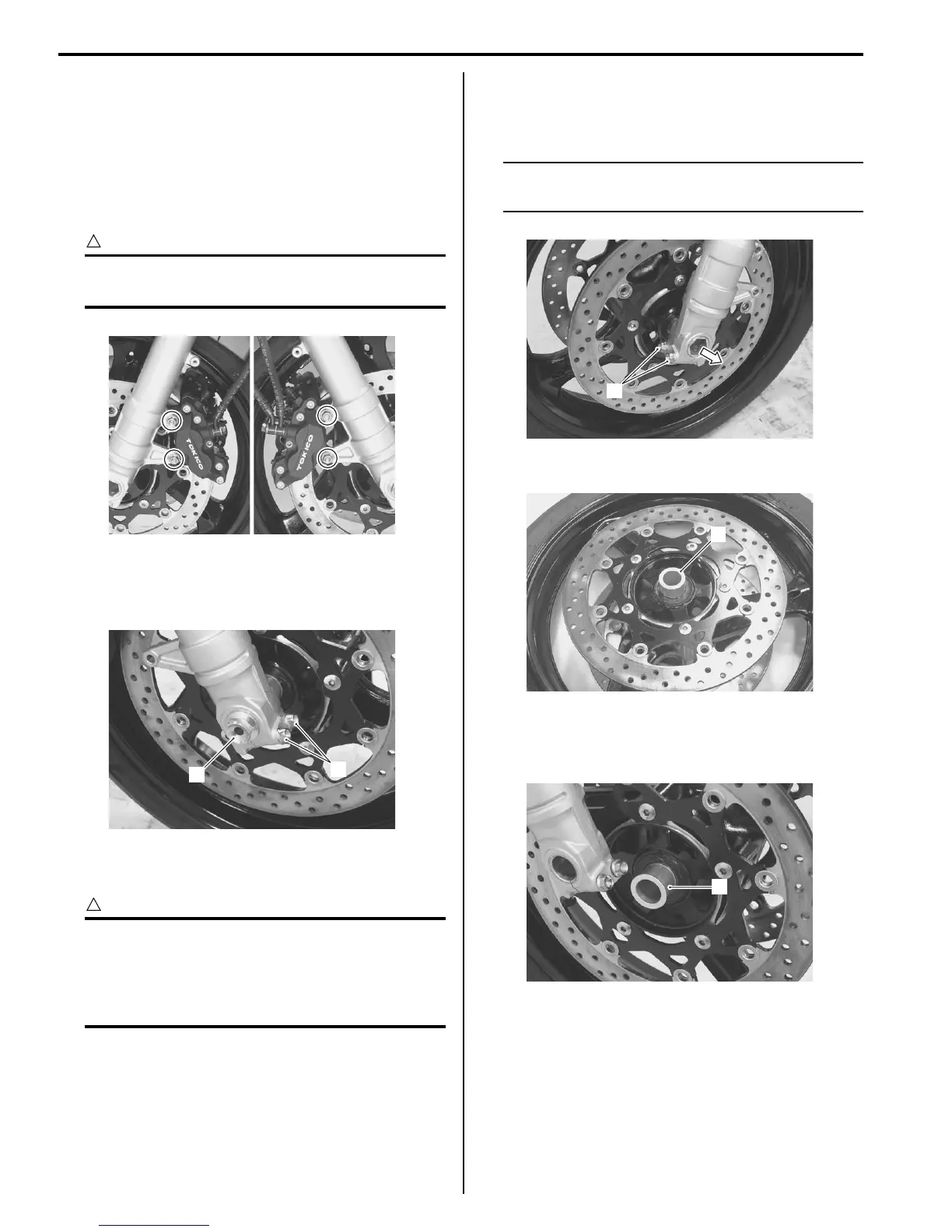

Removal
1) Support the motorcycle with a jack or a wooden
block.
2) Remove the brake calipers. Refer to “Front Brake
Caliper Removal and Installation: in Section 4B”.
CAUTION
!
Do not operate the brake lever while
removing the caliper.
3) Loosen two axle pinch bolts (1) on the right front fork
leg.
4) Remove the front axle bolt (2).
5) Raise the front wheel off the ground and support the
motorcycle with a jack or a wooden block.
CAUTION
!
Do not carry out the work with the
motorcycle resting on the side-stand. Do not
support the motorcycle with the exhaust
pipe. Make sure that the motorcycle is
supported securely.
6) Loosen two axle pinch bolts (3) on the left front fork
leg.
7) Draw out the front axle and remove the front wheel.
NOTE
After removing the front wheel, fit the
calipers temporarily to the original positions.
8) Remove the collar (4).
Installation
1) Install the collar (1) into the right side of the wheel.
I649G1240001-01
2
1
I649G1240002-01
3
I649G1240003-01
4
I649G1240004-01
1
I649G1240008-01
