Suzuki GSF1200S User Manual

Exterior Parts: 9D-5
Fastener Removal and Installation

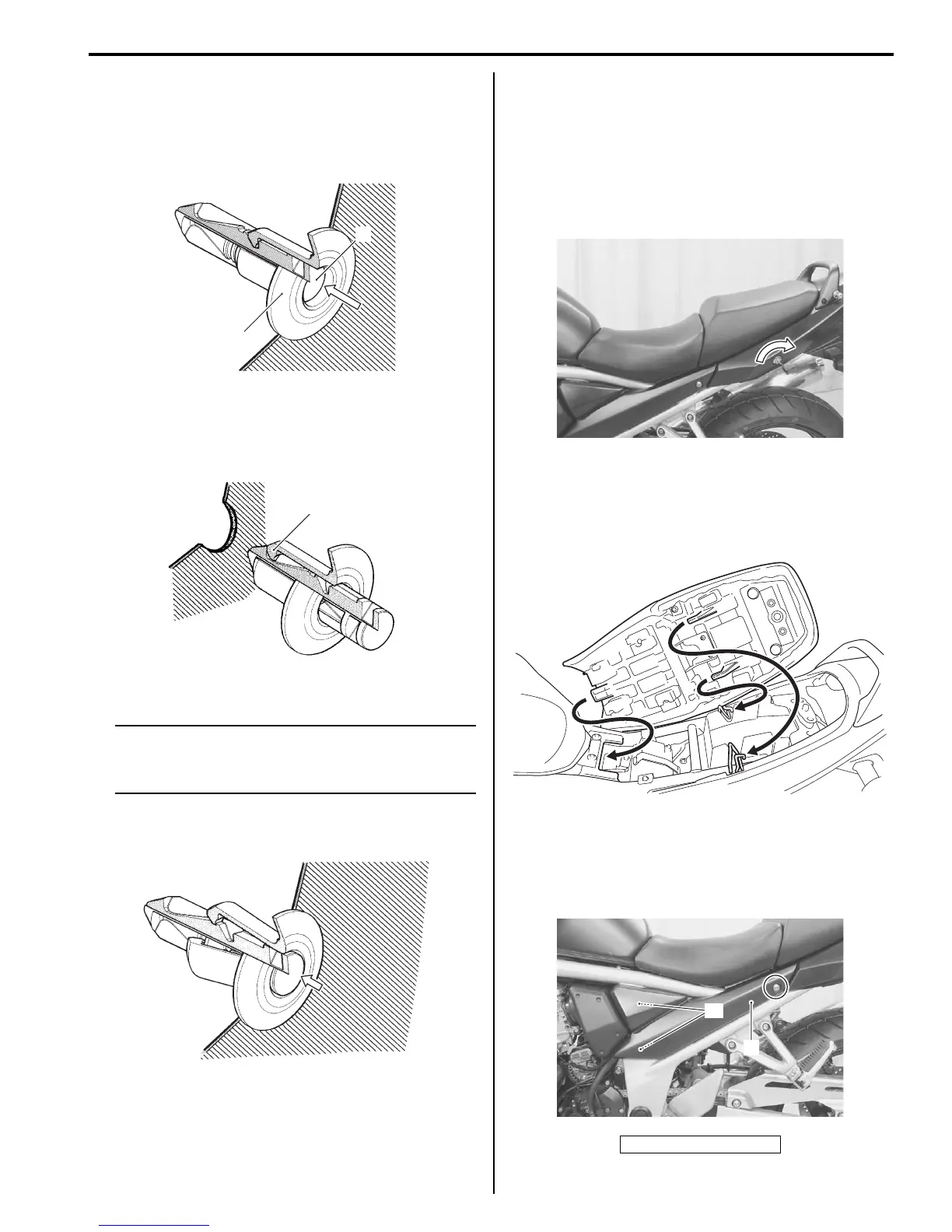

B649G19406003
Removal
1) Depress the head of fastener center piece (1).
2) Pull out the fastener (2).
Installation
1) Let the center piece stick out toward the head so that
the pawls “A” close.
2) Insert the fastener into the installation hole.
NOTE
To prevent the pawl “A” from damage, insert
the fastener all the way into the installation
hole.
3) Push in the head of center piece until it becomes
flush with the fastener outside face.
Exterior Parts Removal and Installation
B649G19406004
Seat
Removal
1) Unlock the seat with the ignition key.
2) Remove the front and rear seats as an assembly.
Installation
Slide the seat hooks into the seat hook retainers and
push down firmly until the seat snaps into the locked
position.
Frame Cover
Removal
Remove the frame covers (1), left and right.
1
2
I649G1940005-01
“A”
I649G1940006-01
I649G1940007-01
“A”: Hooked point
I649G1940008-01
I649G1940009-01
1
“A”
I649G1940010-03

Suzuki GSF1200S Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Overall Width	790 mm (31.1 in)
Seat Height	790 mm (31.1 in)
Lubrication	Wet sump
Final Drive	Chain
Starter	Electric
Engine Type	4-stroke, 4-cylinder, DOHC
Rear Suspension	Link-type, coil spring, oil damped
Front Brakes	Dual disc
Fuel Tank Capacity	20 liters
Rear Suspension Adjustability	Preload adjustable
Ground Clearance	135 mm
Overall Length	2, 130 mm
