Wheels and Tires: 2D-11

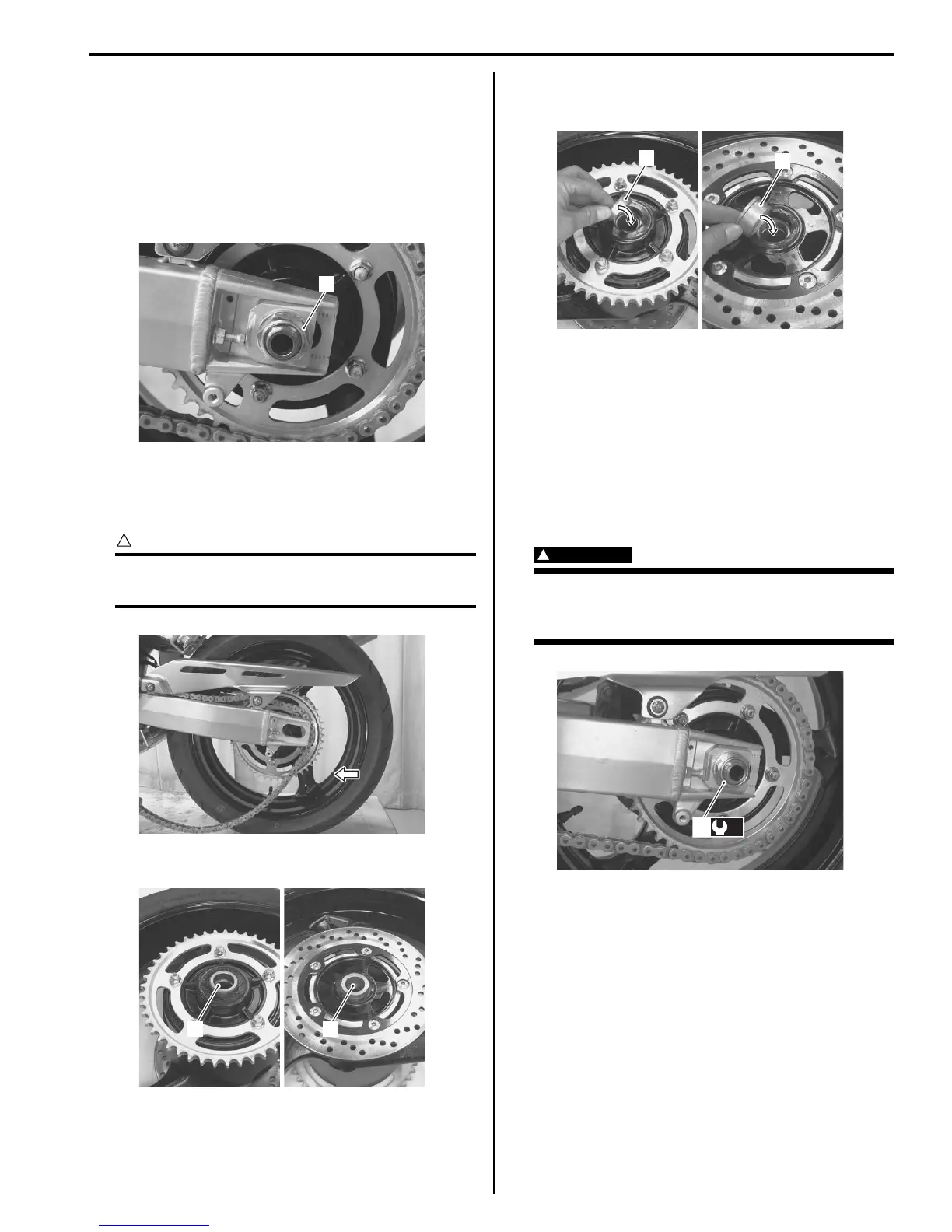

Rear Wheel Assembly Removal and Installation
B649G12406010
Removal
1) Support the motorcycle with the center stand.
2) Remove the cotter pin. (For E-28)
3) Remove the rear axle nut (1) and draw out the rear
axle.
4) Remove the rear axle and disengage the drive chain
from the rear sprocket.
5) Remove the rear wheel assembly.
CAUTION
!
Do not operate the rear brake pedal with the
rear wheel removed.
6) Remove the spacer (2) and collar (3).
Installation
1) Install the spacer (1) and collar (2).
2) Install the rear wheel with the rear axle and tighten
the rear axle nut temporarily.
3) Adjust the drive chain slack after installing the rear
wheel. Refer to “Drive Chain Inspection and
Adjustment: in Section 0B”.
4) Tighten the rear axle nut (3) to the specified torque.
Tightening torque
Rear axle nut (a): 100 N·m (10.0 kgf-m, 72.5 lb-
ft)
WARNING
!
After remounting the rear wheel, pump the
brake pedal a few times to check for proper
brake operation.
5) Install a new cotter pin. (For E-28)
1
I649G1240024-02
I649G1240025-01
2 3
I649G1240026-01
1
2
I649G1240027-01
(a)
3,
I649G1240028-02
