Suzuki GSF1200S User Manual

6B-1 Steering / Handlebar:
Steering / Handlebar
Repair Instructions

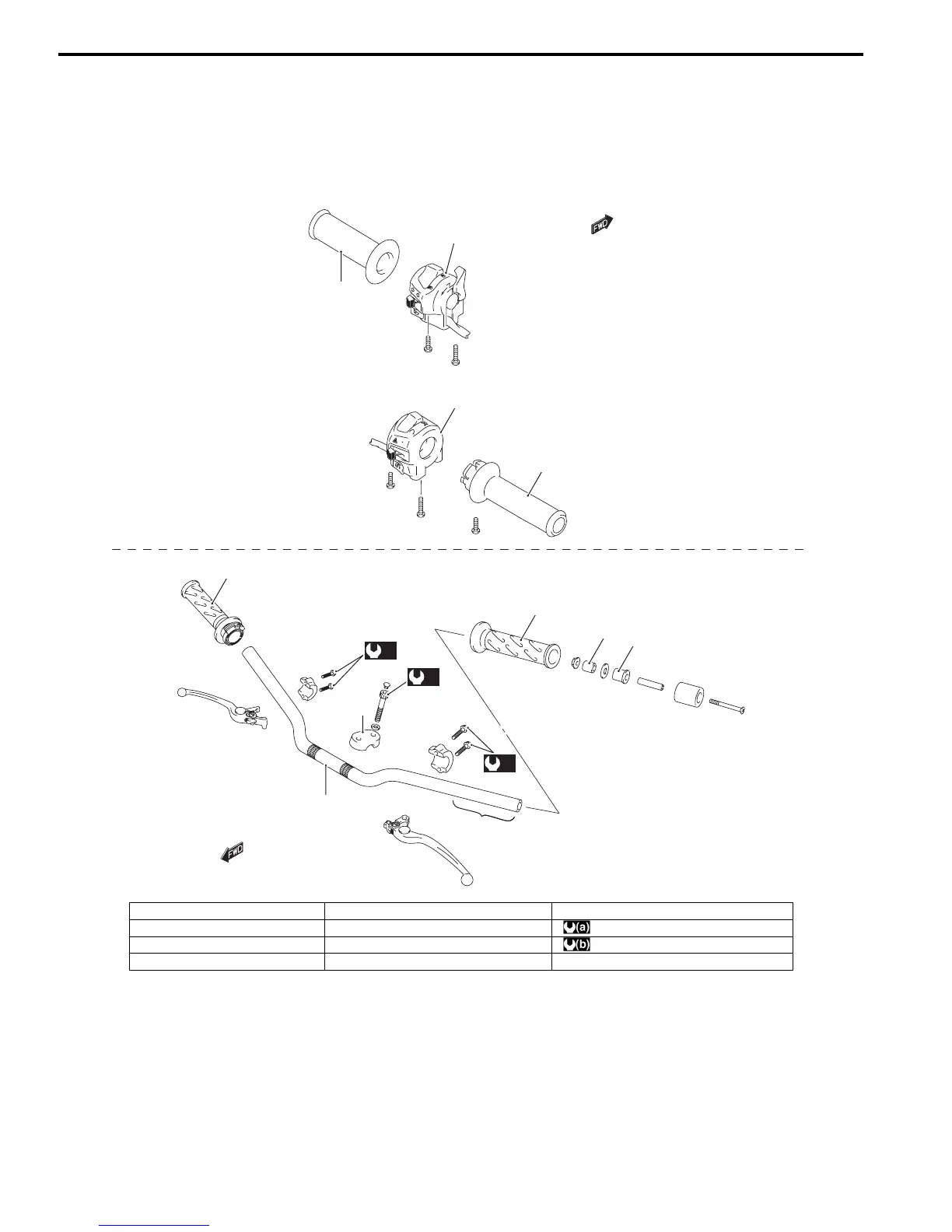

Handlebars Components
B649G16206001
1
4
7
8
4
5
6
1
(b)
3
(a)
“A”
2
(b)
I649G1620001-04
1. Throttle grip 5. Handle expander “A”: Apply handle grip bond.
2. Handlebars 6. Handle balancer expander : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
3. Handlebar holder (Upper) 7. Right handlebar switch box : 10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
4. Grip rubber 8. Left handlebar switch box.

Suzuki GSF1200S Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Overall Width	790 mm (31.1 in)
Seat Height	790 mm (31.1 in)
Lubrication	Wet sump
Final Drive	Chain
Starter	Electric
Engine Type	4-stroke, 4-cylinder, DOHC
Rear Suspension	Link-type, coil spring, oil damped
Front Brakes	Dual disc
Fuel Tank Capacity	20 liters
Rear Suspension Adjustability	Preload adjustable
Ground Clearance	135 mm
Overall Length	2, 130 mm
