Suzuki GSF1200S User Manual

9B-4 Lighting Systems:

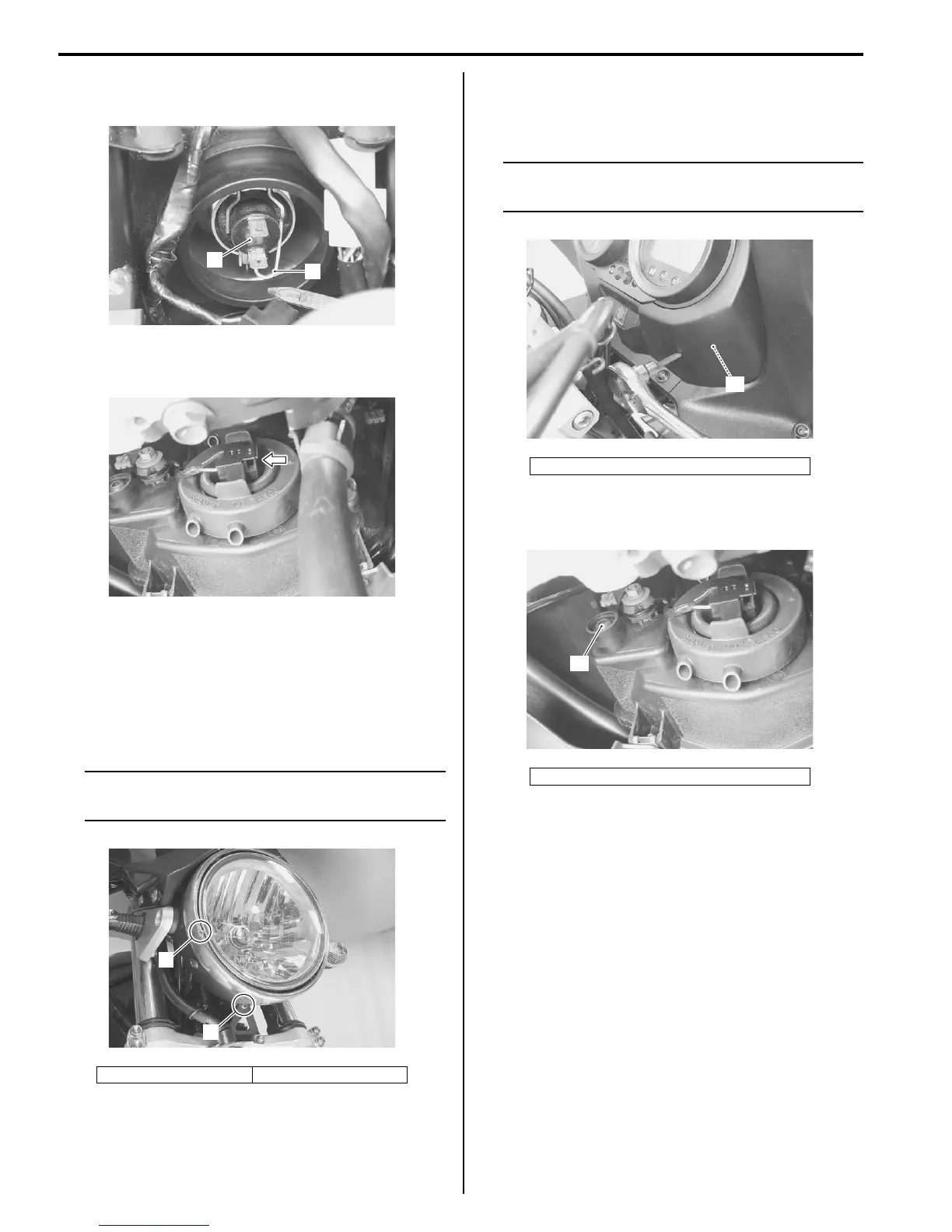

4) Replace the headlight bulb (Low beam) (4) by
unhooking the bulb holder spring (5).
5) Replace the headlight bulb (High beam) in the same
way as that of the low beam one.
6) Reinstall the removed parts.
Headlight Beam Adjustment
B649G19206003
GSF1200
Adjust the headlight beam, both horizontally and
vertically.
NOTE
To adjust the headlight beam, adjust the
beam horizontally first, then vertically.
GSF1200S
1) Insert 5 mm hexagon wrench as shown and adjust
the Low and High headlight beam horizontally.
NOTE
To adjust the headlight beam, adjust the
beam horizontally first, then vertically.
2) Adjust the Low and High headlight beam vertically
from the lower side.
1. Horizontal adjuster 2. Vertical adjuster
4
5
I649G1920012-01
I649G1920013-01
1
2
I649G1920014-01
“A”: Horizontal adjuster (For both Low and Hi beam)
“B”: Vertical adjuster (For both Low and High beam)
“A”
I649G1920015-01
“B”
I649G1920016-01

Suzuki GSF1200S Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Overall Width	790 mm (31.1 in)
Seat Height	790 mm (31.1 in)
Lubrication	Wet sump
Final Drive	Chain
Starter	Electric
Engine Type	4-stroke, 4-cylinder, DOHC
Rear Suspension	Link-type, coil spring, oil damped
Front Brakes	Dual disc
Fuel Tank Capacity	20 liters
Rear Suspension Adjustability	Preload adjustable
Ground Clearance	135 mm
Overall Length	2, 130 mm
