3A-4 Drive Chain / Drive Train / Drive Shaft:
Installation

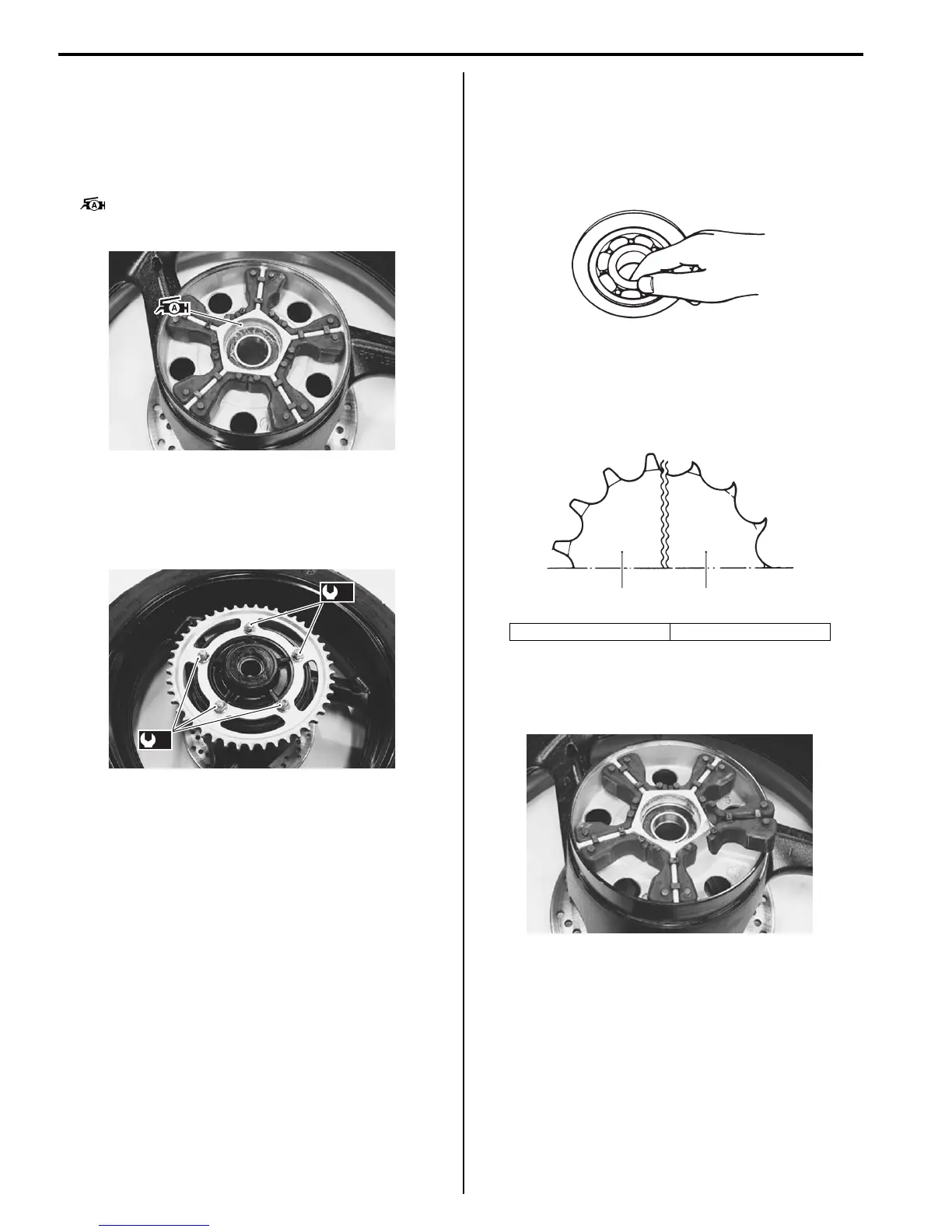

Install the rear sprocket and rear sprocket mounting
drum in the reverse order of removal. Pay attention to
the following points:
• Apply grease to the contacting surface between the
rear wheel hub and the mounting drum.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Tighten the rear sprocket nuts to the specified torque.
Tightening torque
Rear sprocket nut (a): 60 N·m (6.0 kgf-m, 43.5 lb-
ft)
• Install the rear wheel assembly. Refer to “Rear Wheel
Assembly Removal and Installation: in Section 2D”.
Drive Chain Related Parts Inspection
B649G13106010
Refer to “Rear Sprocket / Rear Sprocket Mounting Drum
Removal and Installation: ”
Dust Seal
Inspect the sprocket mounting drum dust seal for wear
or damage. If any damage is found, replace the dust
seal with a new one.
Bearing
Inspect the play of the sprocket mounting drum bearings
by hand while they are in the wheel and drum. Rotate
the inner race by hand to inspect for abnormal noise and
smooth rotation. Replace the bearing if there is anything
unusual.
Engine Sprocket and Rear Sprocket
Inspect the sprocket teeth for wear. If they are worn as
shown, replace the engine sprocket, rear sprocket and
drive chain as a set.
Wheel Damper
Inspect the dampers for wear and damage. Replace the
damper if there is anything unusual.
Drive Chain
Refer to “Drive Chain Inspection and Adjustment: in
Section 0B”.
I649G1310013-01
(a)
(a)
I649G1310014-02
“A”: Normal wear “B”: Excessive wear
I649G1310015-01
“A” “B”
I649G1310016-01
I649G1310017-01

Suzuki GSF1200S Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Overall Width	790 mm (31.1 in)
Seat Height	790 mm (31.1 in)
Lubrication	Wet sump
Final Drive	Chain
Starter	Electric
Engine Type	4-stroke, 4-cylinder, DOHC
Rear Suspension	Link-type, coil spring, oil damped
Front Brakes	Dual disc
Fuel Tank Capacity	20 liters
Rear Suspension Adjustability	Preload adjustable
Ground Clearance	135 mm
Overall Length	2, 130 mm
