1J-15 Charging System:
Battery Removal and Installation
B649G11A06014
Refer to “Electrical Components Location: in Section
0A”.
Removal
1) Remove the seat. Refer to “Exterior Parts Removal
and Installation: in Section 9D”.
2) Disconnect the battery (–) lead wire (1).
3) Disconnect the battery (+) lead wire (2).
NOTE
Be sure to disconnect the battery (–) lead
wire (1) first, then disconnect the battery (+)
lead wire (2).
4) Remove the rubber band (3).
5) Remove the battery (4) from the motorcycle.
Installation
Install the battery in the reverse order of removal.
Pay attention to following points:
CAUTION
!
Never use anything except the specified
battery.
• Tighten the battery lead wire mounting bolts securely.
Battery Visual Inspection
B649G11A06017
Inspect the battery in the following procedures:
1) Remove the seat. Refer to “Exterior Parts Removal
and Installation: in Section 9D”.
2) Visually inspect the surface of the battery container.
If any signs of cracking or electrolyte leakage from
the sides of the battery have occurred, replace the
battery with a new one.
If the battery terminals are found to be coated with
rust or an acidic white powdery substance, clean the
battery terminals with sandpaper.
3) Install the seat. Refer to “Exterior Parts Removal and
Installation: in Section 9D”.

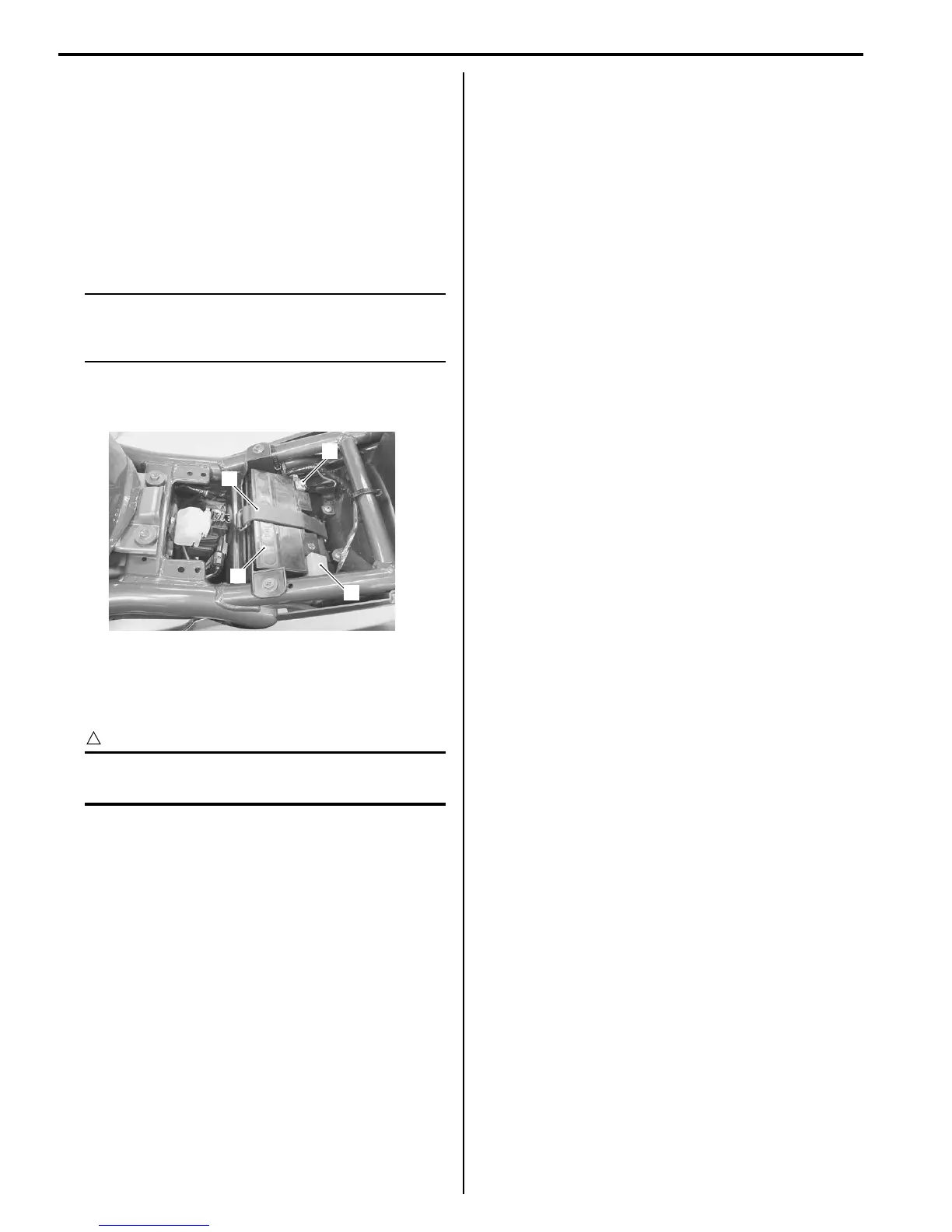

1
2
3
4
I649G11A0044-02
