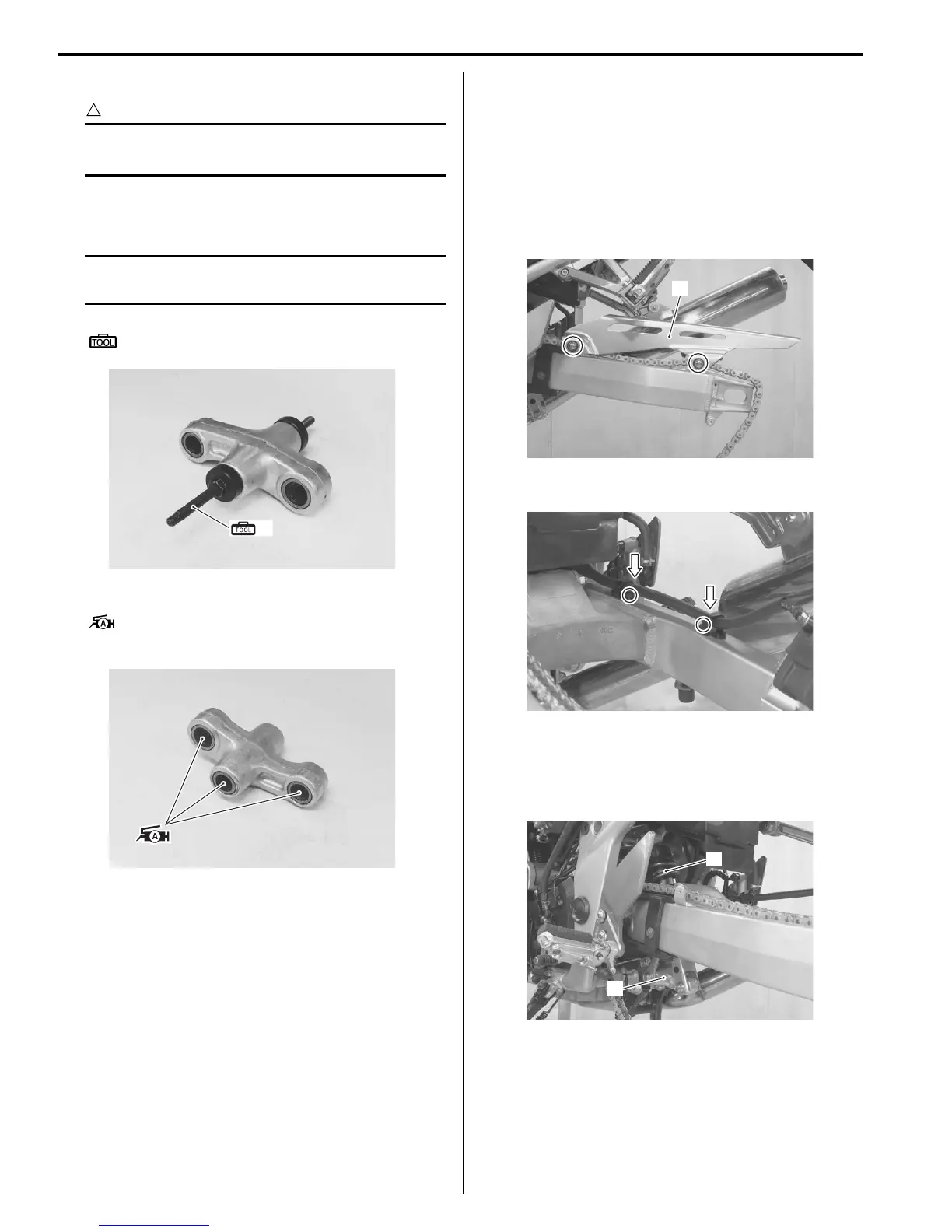

2C-7 Rear Suspension:
Installation
CAUTION
!
The removed bearings must be replaced with
new ones.
1) Press the bearings into the cushion lever with the
special tool.
NOTE
When installing the bearing, stamped mark
on the bearing must face outside.
Special tool
(A): 09924–84521 (Bearing installer set)
2) Apply SUZUKI SUPER GREASE “A” to the bearings.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
3) Install the cushion lever. Refer to “Rear Shock
Absorber Removal and Installation: ”.
Swingarm / Cushion Rod Removal and
Installation
B649G12306016
Removal
1) Remove the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation: in
Section 2D”.
2) Remove the drive chain cover (1).
3) Remove the brake hose clamps.
4) Remove the cushion lever (2) and rear shock
absorber (3). Refer to “Rear Shock Absorber
Removal and Installation: ” and “Cushion Lever
Removal and Installation: ”.
(A)
I649G1230016-02
I649G1230017-01
1
I649G1230018-01
I649G1230019-01
2
3
I649G1230020-01
