Suzuki GSF1200S User Manual

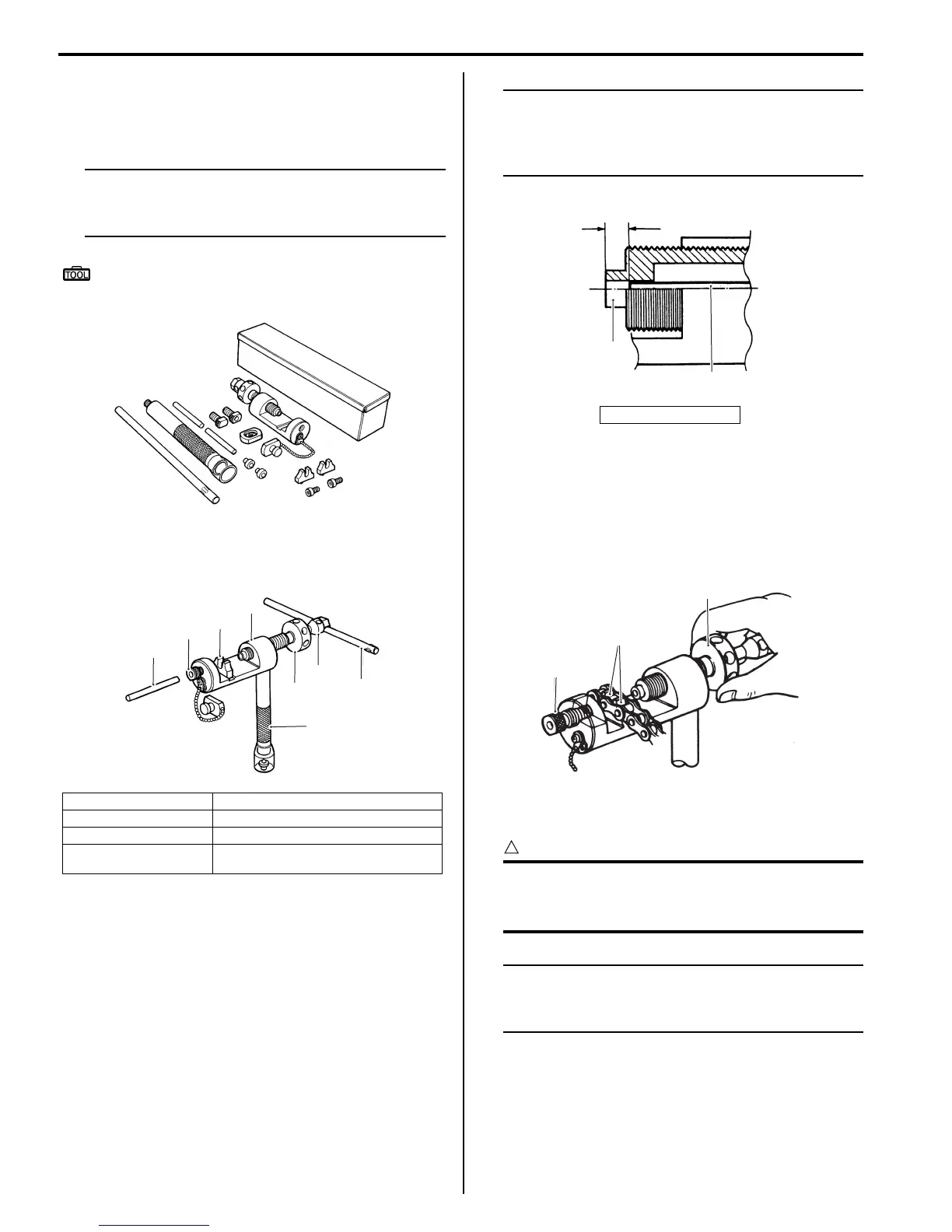

3A-6 Drive Chain / Drive Train / Drive Shaft:
Drive Chain Replacement
B649G13106012
Use the special tool in the following procedures, to cut
and rejoin the drive chain.
NOTE
When using the special tool, apply a small
quantity of grease to the threaded parts of
the special tool.
Special tool
: 09922–22711 (Drive chain cutting and joining
tool)
Drive Chain Cutting
1) Set up the special tool as shown in the illustration.
NOTE
The tip of pin remover (1) should be
positioned inside “a” approximately 5 mm
(0.2 in) from the end face of pressure bolt [A]
(2) as shown in the illustration.
2) Place the drive chain link being disjointed on the
holder part (8) of the tool.
3) Turn in both the adjuster bolt (6) and pressure bolt
[A] (3) so that each of their end hole fits over the
chain joint pin properly.
4) Tighten the pressure bolt [A] (3) with the bar.
5) Turn in the pressure bolt [B] (4) with the bar (5) and
force out the drive chain joint pin (9).
CAUTION
!
Continue turning in the pressure bolt [B] (4)
until the joint pin has been completely
pushed out of the chain.
NOTE
After the joint pin (9) is removed, loosen the
pressure bolt [B] (4) and then pressure bolt
[A] (3).
1. Tool body 5. Bar
2. Grip handle 6. Adjuster bolt (With through hole)
3. Pressure bolt [A] 7. Pin remover
4. Pressure bolt [B] 8. Chain holder (Engraved mark 500)
with reamer bolt M5 x 10
I649G1310023-01
1
2
3
4
5
6
7
8
I649G1310024-01
“a”: 5 mm (0.2 in)
1
2
“a”
I649G1310025-01
3
6
8
I649G1310026-01

Suzuki GSF1200S Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Overall Width	790 mm (31.1 in)
Seat Height	790 mm (31.1 in)
Lubrication	Wet sump
Final Drive	Chain
Starter	Electric
Engine Type	4-stroke, 4-cylinder, DOHC
Rear Suspension	Link-type, coil spring, oil damped
Front Brakes	Dual disc
Fuel Tank Capacity	20 liters
Rear Suspension Adjustability	Preload adjustable
Ground Clearance	135 mm
Overall Length	2, 130 mm
