Suzuki LT-A400 - Final Gear Construction

Differential: 3B-20

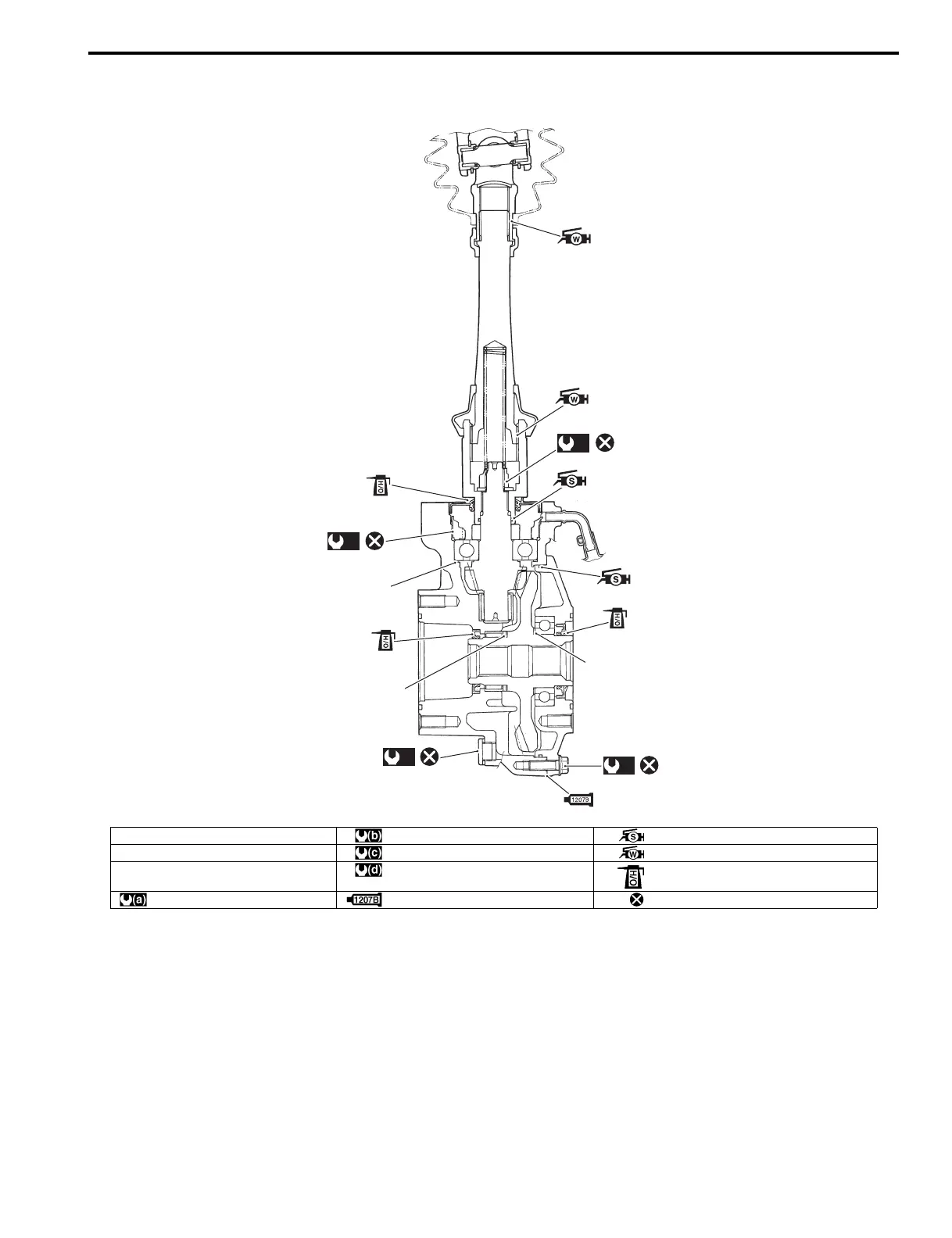

Final Gear Construction
B827H13206013
1. Shim(-s) (LH) : 80 N⋅m (8.0 kgf-m, 58.0 lb-ft) : Apply silicone grease.
2. Shim(-s) (RH) : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft) : Apply water resistance grease.
3. Final drive gear shim(-s) : 33 N⋅m (3.3 kgf-m, 24.0 lb-ft) : Apply hypoid gear oil.
: 100 N⋅m (10.0 kgf-m, 72.5 lb-ft) : Apply bond to the mating surface. : Do not reuse.
(a)
2
3
1
(b)
(c)
(d)
I827H1320063-04
