Maintenance and Lubrication: 0B-2

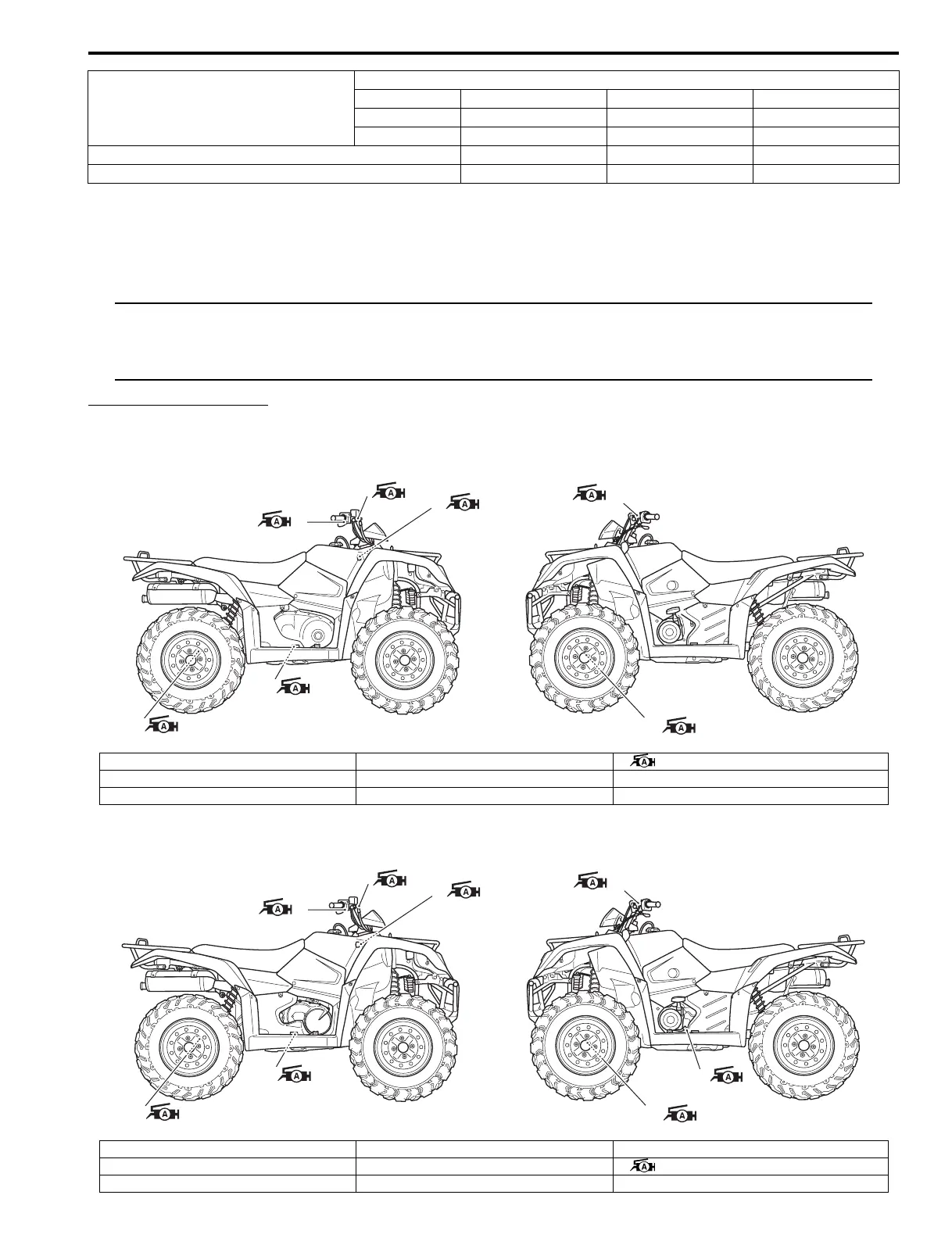

Lubrication Points
B827H10205002
Proper lubrication is important for smooth operation and long life of each working part of the vehicle.
Major lubrication points are indicated as follows.
NOTE
• Before lubricating each part, clean off any rusty spots and wipe off any grease, oil, dirt or grime.
• Lubricate exposed parts which are subject to rust, with a rust preventative spray whenever the
vehicle has been operated under wet or rainy conditions.
Lubricate exposed parts
Every 1 000 km (600 miles, 3 months)
LT-A400/F
LT-F400/F
Chassis nuts and bolts T T T
General lubrications — L L
Item
Interval
km Initial 200 Every 1 000 Every 2 000
miles Initial 100 Every 600 Every 1 200
months 1 3 6
5
1
4
2
3
1
6
I827H1020033-02
1. Brake lever holder 4. Brake pedal : Apply grease.
2. Throttle lever 5. Brake cam
3. Steering shaft holder 6. Drive shaft joint spline (LT-A400F)
5
1
4
2
3
1
6
7
I827H1020034-03
1. Brake lever holder 4. Brake pedal 7. Gearshift pedal
2. Throttle lever 5. Brake cam : Apply grease.
3. Steering shaft holder 6. Drive shaft joint spline (LT-F400F)
