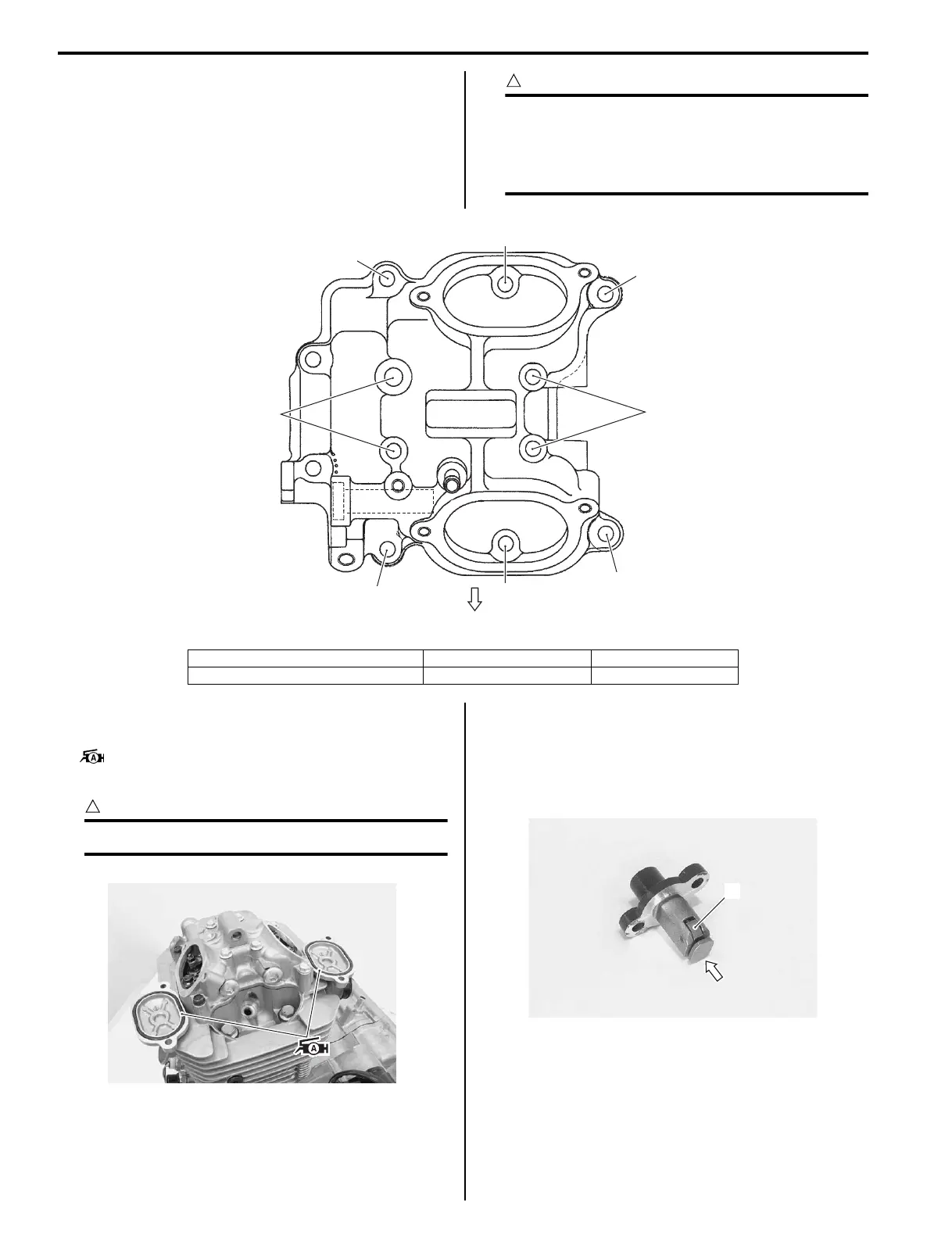

1D-18 Engine Mechanical:
• Lightly tighten the cylinder head cover bolts
diagonally, and then tighten them to the specified
torque.
Tightening torque
Cylinder head cover bolt: 10 N·m (1.0 kgf-m, 7.0
lb-ft)
CAUTION
!
• When tightening the cylinder head cover
bolts, the piston must be at top dead
center on the compression stroke.
• Fit new gasket to the bolts (1).
• Apply grease to the new O-rings and install the valve
timing inspection caps.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
CAUTION
!
Replace the O-ring with new ones.
Cam Chain Tension Adjuster
• With the spring holder bolt and spring removed from
the cam chain tension adjuster, release locking of the
ratchet mechanism (1) and push the push rod all the
way in.
FWD
1
5
4
2
6
5
3
3
I827H1140035-02
1. Bolt (L55, stainless) and gasket 3. Bolt (L25) 5. Bolt (L35)
2. Bolt (L115, stainless) 4. Bolt (L40, stainless) 6. Bolt (L30)
I827H1140037-01
1
I827H1140038-01
