6-1-64 ENGINE GENERAL INFORMATION AND DIAGNOSIS (SFI FOR G13)

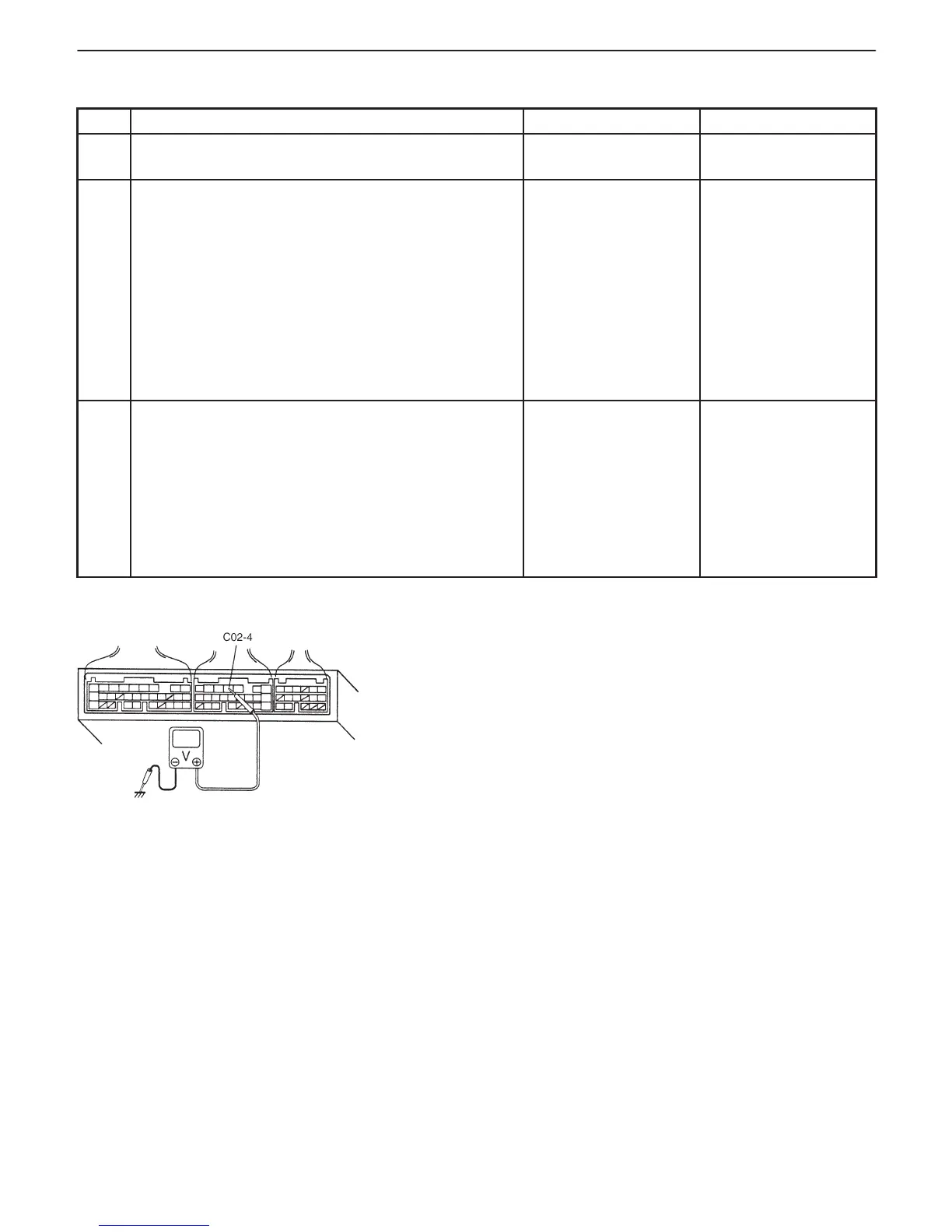

Fig. 1 for Step 2
INSPECTION
STEP ACTION YES NO
1 Was “ENGINE DIAG. FLOW TABLE” performed? Go to Step 2. Go to “ENGINE DIAG.
FLOW TABLE”.
2 Check HO2S-2 Heater and Its Circuit.
1) Warm up engine to normal operating temperature.
2) Stop engine.
3) Turn ignition switch ON and check voltage at
terminal C02-4 See Fig. 1. Voltage should be
over 10 V.
4) Start engine, run it at idle and check voltage at the
same terminal after 1 min. from engine start.
Voltage should be below 1.9 V.
Are check result as specified?
Intermittent trouble.
Check for intermittent
referring to
“Intermittent and
Poor Connection”
in Section 0A.
Go to Step 3.
3 Check Heater or Sensor-2.
1) Disconnect HO2S-2 coupler with ignition switch
OFF.
2) Check for proper connection to HO2S-2 at “B/W”
and “Lg/B” wire terminals.
3) If OK, then check heater resistance.
Is it 11.7 – 14.3 Ω at 20_C, 68_F?
“Lg/B” wire open or
shorted to ground or
poor connection at
C02-4. If wire and
connection are OK,
substitute a
known-good ECM
(PCM) and recheck.
Replace HO2S-2.
To Next Page
