ENGINE GENERAL INFORMATION AND DIAGNOSIS (SFI FOR G13) 6-1-77
GND
Vout
B+
Magnetic substance (iron)
Mirror
STEP ACTION YES NO
7 Check signal rotor for the following, using mirror.
See Fig. 4.
D Damage
D No foreign material attached
Is it in good condition?
Intermittent trouble or
faulty ECM (PCM).
Check for intermittent
referring to
“Intermittent and
Poor Connection” in
Section 0A.
Clean rotor teeth or
replace CMP sensor.

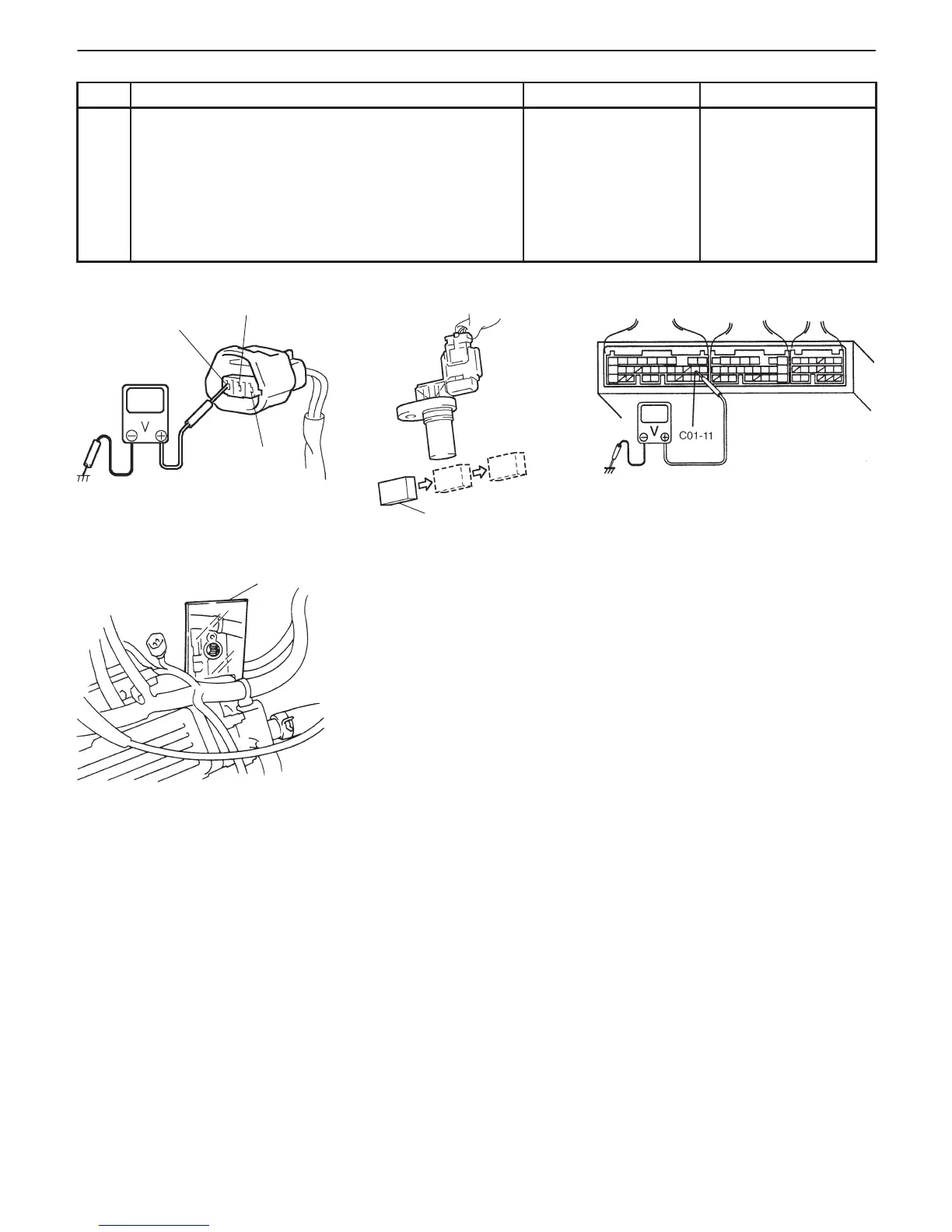

Fig. 1 for Step 3 Fig. 2 for Step 4 Fig. 3 for Step 6
Fig. 4 for Step 7
