6-1-104 ENGINE GENERAL INFORMATION AND DIAGNOSIS (SFI FOR G13)
Power steering
pressure
switch
Power steering
pump

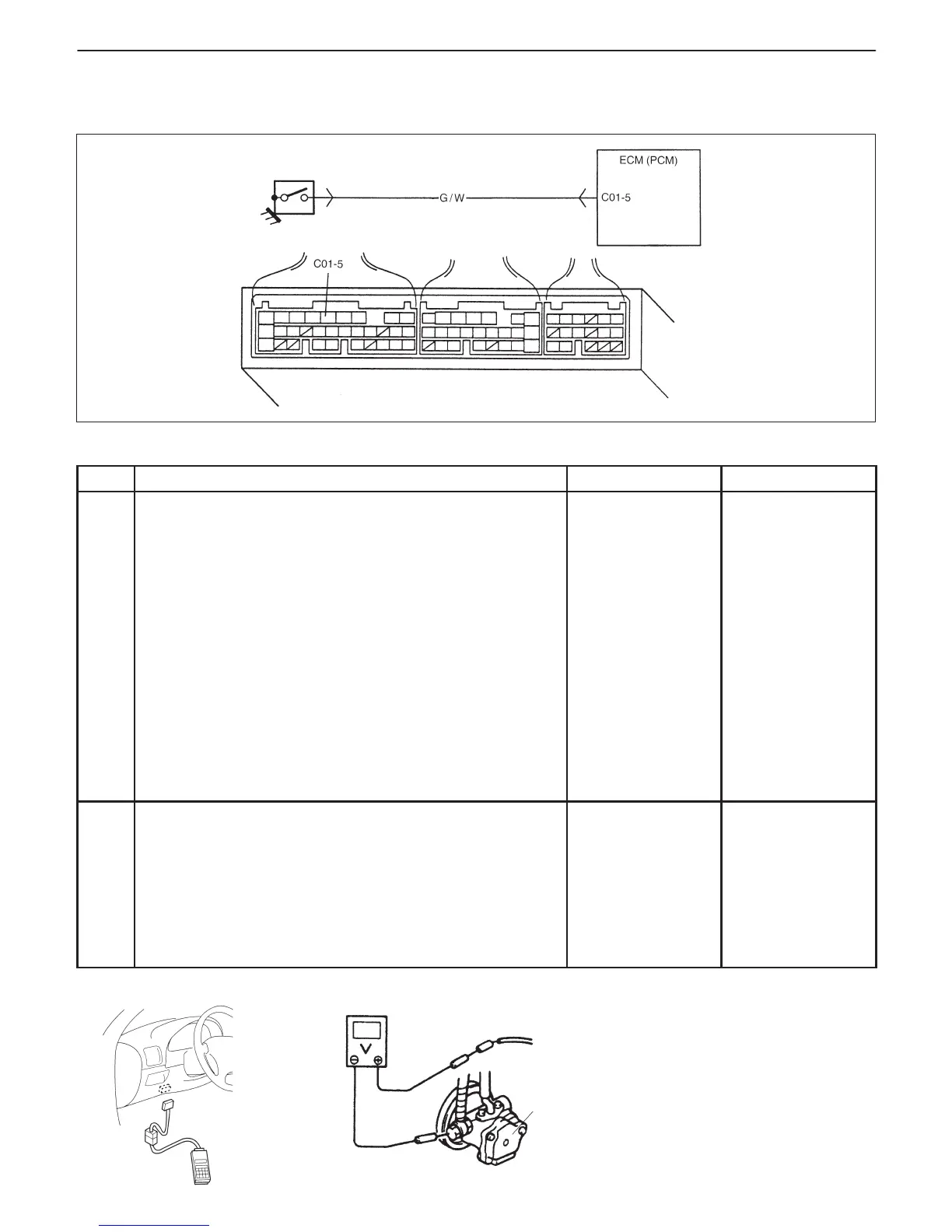

Fig. 1 for Step 1 Fig. 2 for Step 2
TABLE B-5 POWER STEERING PRESSURE (PSP) SWITCH SIGNAL CIRCUIT
CHECK (If equipped)
INSPECTION
STEP ACTION YES NO
1 Check PSP Switch Signal Circuit.
When using SUZUKI scan tool:
1) Connect SUZUKI scan tool to DLC with ignition switch
OFF.
2) Start engine and select “DATA LIST” mode on scan tool.
3) Check power steering pressure switch. See Fig. 1.
Engine running and steering
wheel at straight-ahead position : OFF, 10 – 14 V
Engine running and steering
wheel turned to the right or
left as far as it stops : ON, 0 – 1 V
Is it in good condition?
When not using SUZUKI scan tool:
1) Turn ignition switch ON.
2) Check for voltage at terminal C01-5 of ECM
connector connected, under above each condition.
Is each voltage as specified?
Signal circuit is in
good condition.
Go to Step 2.
2 Check Wire Harness.
1) Turn ignition switch OFF and disconnect PSP switch
connector.
2) Check for proper connection to PSP switch.
3) If OK, then check voltage at PSP switch wire terminal
with ignition switch ON. See Fig. 2.
Is it 10 – 14V?
Power steering
switch malfunction
or power steering
system
malfunction.
“G/W” wire open
or shorted to
ground or poor
C01-5 connection.
If wire and
connection are
OK, substitute a
known-good ECM
and recheck.
To Next Page
