ENGINE MECHANICAL (G10, 1-CAM 6-VALVES ENGINE) 6A-9
INSTALLATION

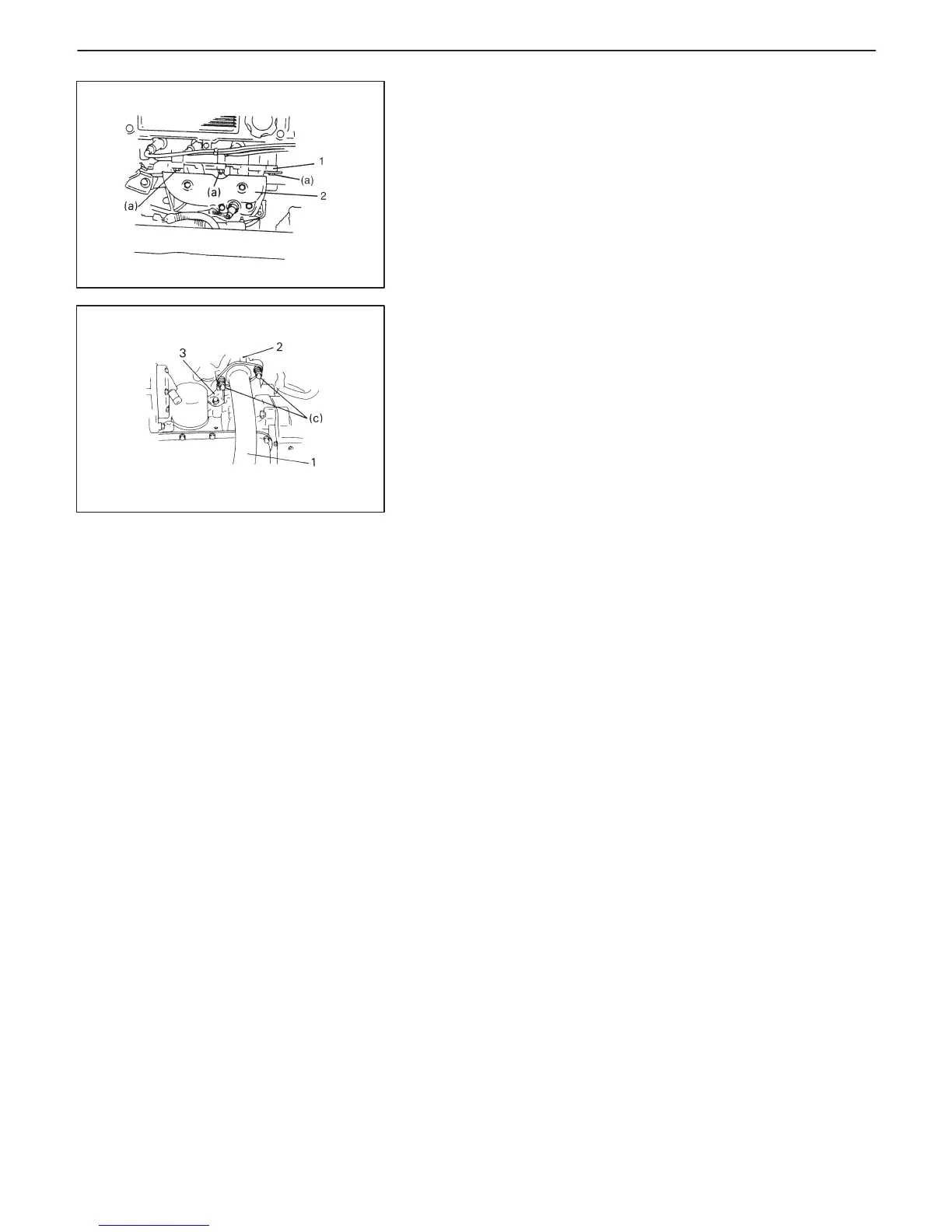

1) Install manifold gasket to cylinder head.
Before installing gasket, check it for deterioration or damage,
and replace as necessary.
2) Install exhaust manifold (1).
Tighten manifold bolts and nuts to specified torque.
Tightening Torque
(a): 23 N
.
m (2.3 kg-m, 17.0 lb-ft)
3) Install exhaust manifold cover (2).
4) Install pipe seal, and then connect exhaust pipe (1).
Before installing pipe seal, check it for deterioration or damage,
and replace as necessary.
Tighten pipe bolts to specified torque.
Tightening Torque
(c): 43 N
.
m (4.3 kg-m, 31.5 lb-ft)
5) Install WU-TWC stiffener (3). (if equipped)
6) Connect heated oxygen sensor coupler.
7) Clamp its wire securely.
8) Connect negative cable at battery.
9) Check exhaust system for exhaust gas leakage.
