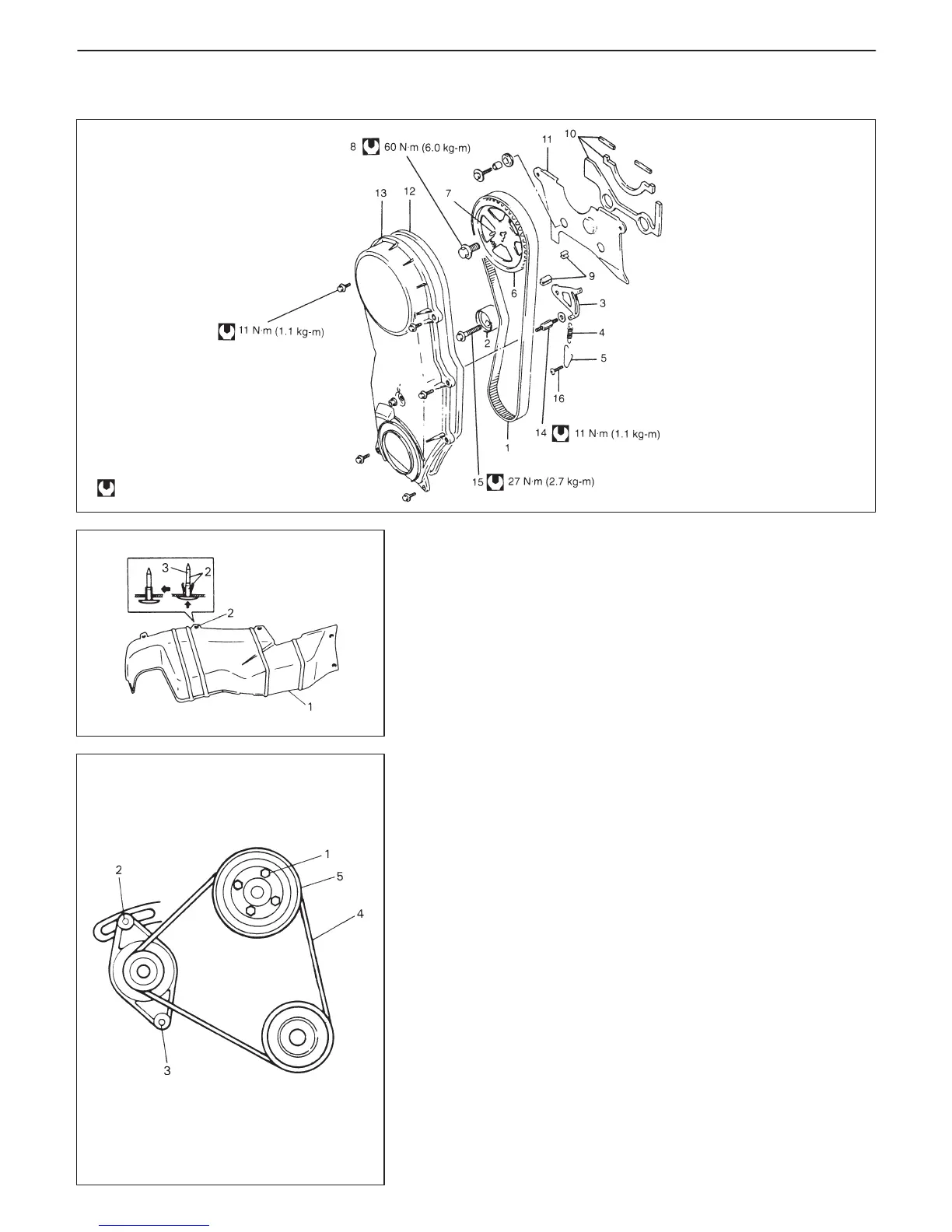

1. Timing belt
2. Tensioner
3. Tensioner plate
4. Tensioner spring
5. Spring damper
6. Camshaft timing pulley
7. Pin
8. Pulley bolt
9. Seal
10. Inside cover seal
11. Inside cover
12. Outside cover seal
13. Outside cover
14. Tensioner stud
15. Tensioner bolt
16. Tensioner spring screw
: Tightening Torque
6A-10 ENGINE MECHANICAL (G10, 1-CAM 6-VALVES ENGINE)
TIMING BELT AND BELT TENSIONER
REMOVAL
1) Disconnect negative cable at battery.
2) Hoist vehicle.
3) Remove clip (2) after pushing center pin, and then remove fend-
er apron extension (1) on right side.
NOTE:
Do not push center pin (3) too far in, or it will fall off into
fender.
4) Remove air cleaner assembly as previously outlined.
5) Remove A/C compressor drive belt, if equipped.
6) Loosen water pump pulley bolts (1).
7) Loosen generator pivot bolts (3) and its adjusting bolt (2) and re-
move water pump belt (4) and its pulley (5).
