1. “V” mark on cylinder head cover
2. Timing mark on camshaft timing belt pulley
3. Arrow mark on oil pump case
4. Punch mark on crankshaft timing belt pulley
ENGINE MECHANICAL (G10, 1-CAM 6-VALVES ENGINE) 6A-11

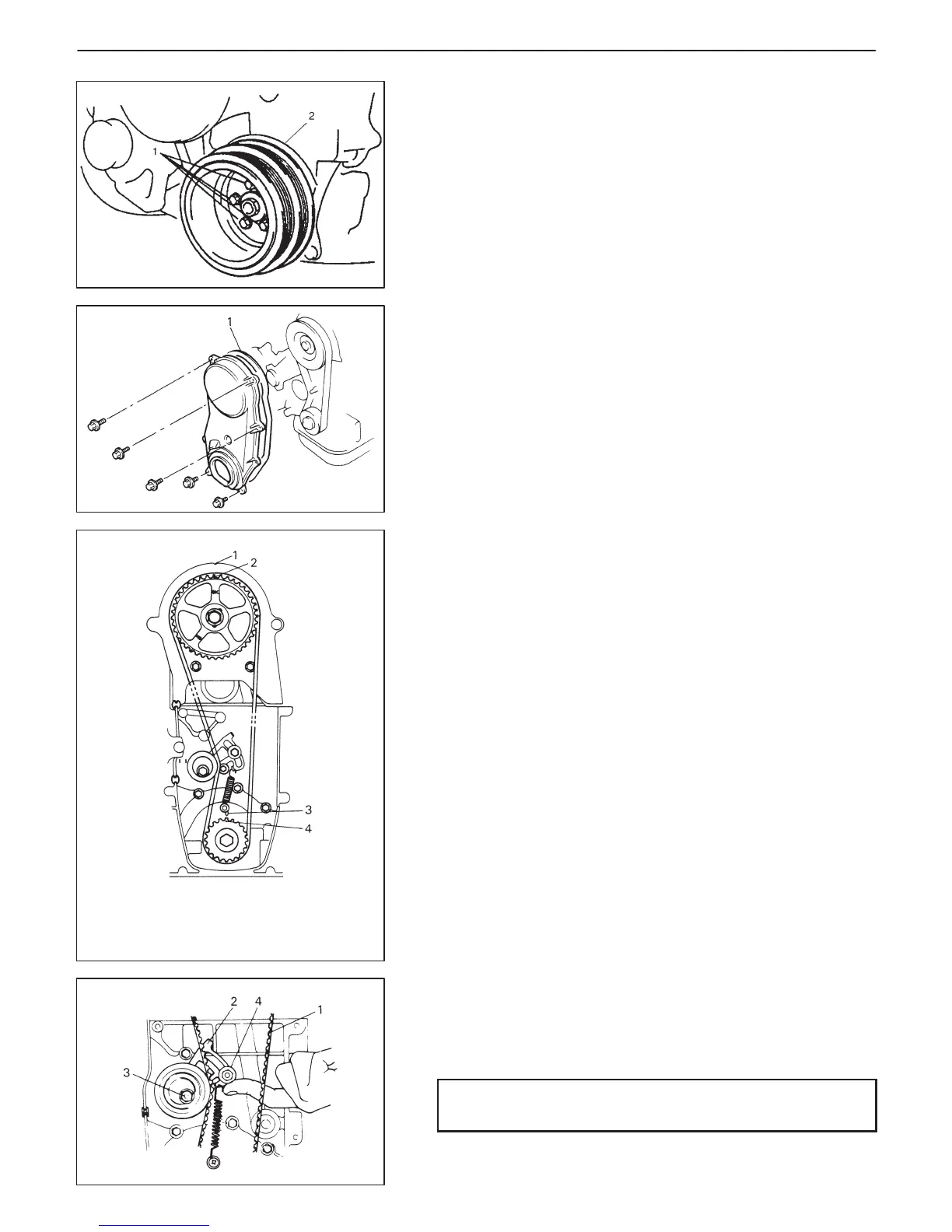

8) Loosen crankshaft pulley bolts (1) and remove crankshaft
pulley (2).
9) Remove timing belt outside cover (1).
10) Align 4 timing marks as shown in figure to facilitate its installa-
tion.
11) Loosen tensioner bolt (3) and stud (4), and remove belt (1) from
crankshaft timing belt pulley and camshaft timing belt pulley af-
ter pushing up the tensioner plate (2) fully by finger as shown
figure.
CAUTION:
Never bend timing belt.
To Next Page
