6A-14 ENGINE MECHANICAL (G10, 1-CAM 6-VALVES ENGINE)

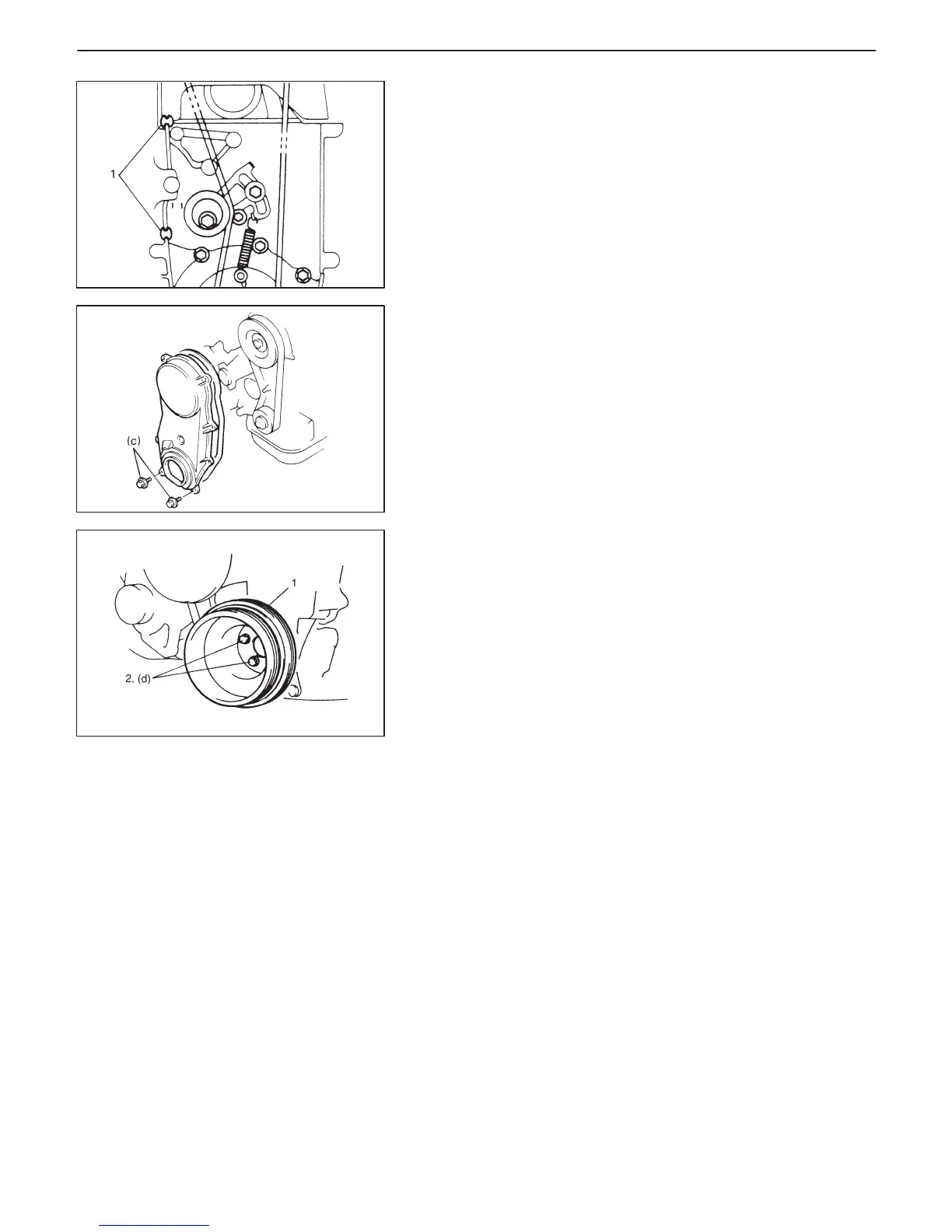

7) Install timing belt outside cover.
Before installing, make sure that rubber seal (1) is between wa-
ter pump and oil pump case and another between water pump
and cylinder head.
Tightening Torque
(c): 11 N
.
m (1.1 kg-m, 8.0 lb-ft)
8) Install crankshaft pulley (2).
Tighten crankshaft pulley bolts (1).
Tightening Torque
(d): 16 N
.
m (1.6 kg-m, 11.5 lb-ft)
9) Install water pump pulley and water pump belt.
Adjust the belt tension to the specification.
Refer to Section 6B for procedure to adjust the belt tension.
10) Install air cleaner assembly.
11) Install fender apron extension of right side.
12) Connect negative cable at battery.
