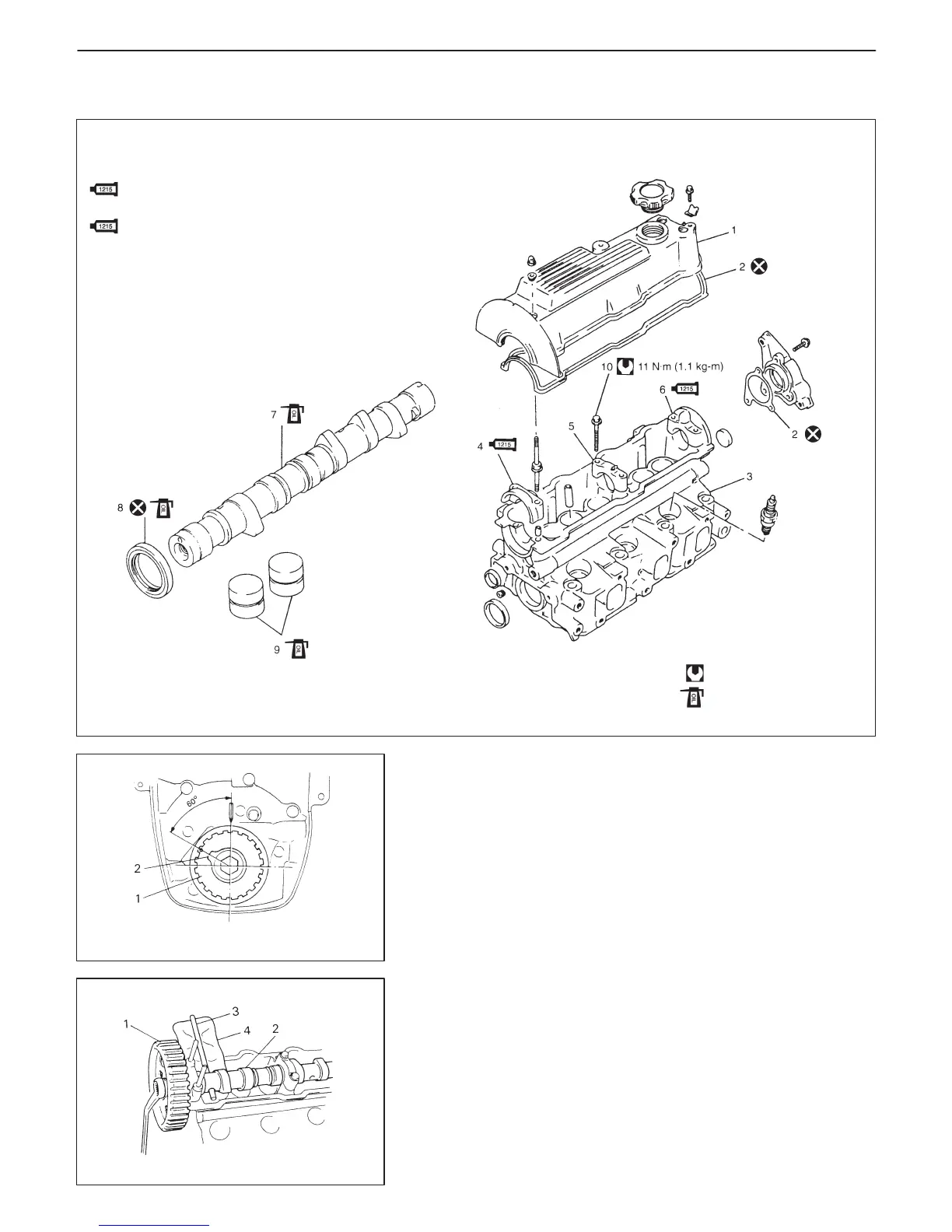

1. Cylinder head cover
2. Gasket
3. Cylinder head
4. Camshaft housing No.1:
Apply sealant 99000-31110 to mating surface.
5. Camshaft housing No.2
6. Camshaft housing No.3:
Apply sealant 99000-31110 to mating surface.
7. Camshaft
8. Oil seal
9. Valve lash adjuster
10. Camshaft housing bolt
1. Crankshaft timing belt pulley
: Tightening Torque
: Apply engine oil to sliding
: surfaces of each part.
ENGINE MECHANICAL (G10, 1-CAM 6-VALVES ENGINE) 6A-15
CAMSHAFT AND HYDRAULIC VALVE LASH ADJUSTER
REMOVAL
1) Disconnect negative cable at battery.
2) Remove cylinder head cover as previously outlined.
3) Remove distributor and then its case from cylinder head.
4) Remove crankshaft pulley, timing belt outside cover and timing
belt as previously outlined.
After removing timing belt, set key (2) on crankshaft in position
as shown in figure by turning crankshaft. This is to prevent inter-
ference between valves and piston when reinstalling camshaft.
5) Remove camshaft timing belt pulley (1).
Lock camshaft (2) with a proper size rod (3) inserted into hole (10
mm, 0.39 in.) in it as shown and then loosen camshaft timing belt
pulley bolt.
NOTE:
Mating surfaces of cylinder head and cover must not be
damaged in this work. So, put clean shop cloth (4) between
rod and mating surfaces, and use care not to bump rod
against mating surfaces hard when loosening bolt.
