1. Clamp
1. Long bolt
2. Short bolt
ENGINE MECHANICAL (G13B, 1-CAM 16-VALVES ENGINE) 6A1-23

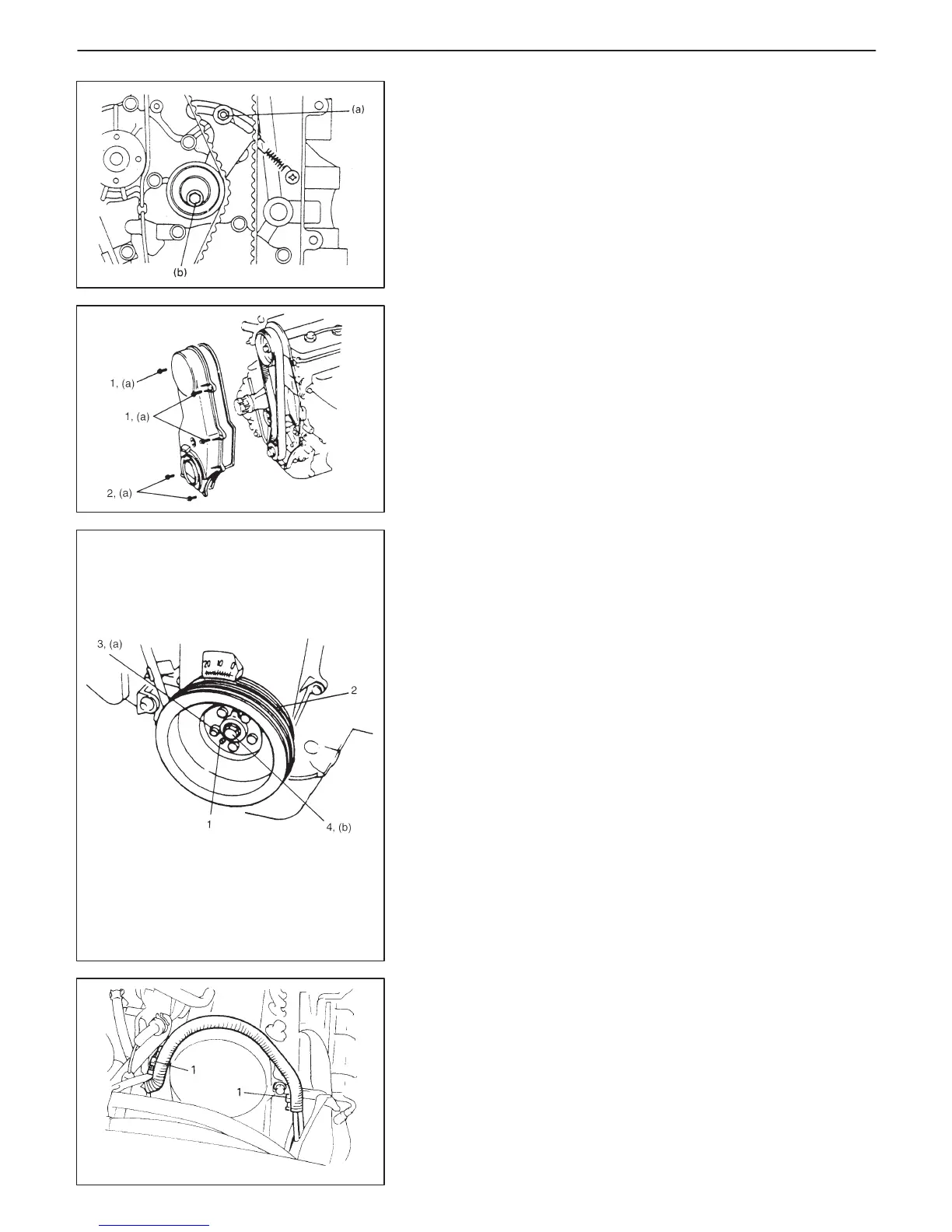

6) To take up slack of timing belt, turn crankshaft two rotations
clockwise after installing it. After making sure that belt is free
from slack, tighten tensioner stud first and then tensioner bolt
to each specified torque.
Then confirm again that two sets of marks are aligned respec-
tively.
Tightening Torque
(a): 11 N
.
m (1.1 kg-m, 8.0 lb-ft)
(b): 25 N
.
m (2.5 kg-m, 18.0 lb-ft)
7) Install timing belt outside cover.
Before installing, make sure that seal is between water pump
and oil pump case.
Tightening Torque
(a): 11 N
.
m (1.1 kg-m, 8.0 lb-ft)
8) With crankshaft locked, remove crankshaft timing belt pulley
bolt (4).
9) Install crankshaft pulley (2).
Fit hole of pulley to pin (1) on crankshaft timing belt pulley, and
tighten pulley bolts (3) to specified torque.
Tightening Torque
(a): 16 N
.
m (1.6 kg-m, 11.5 lb-ft)
10) With crankshaft locked using flat end rod or the like, tighten
crankshaft timing belt pulley bolt (4).
Tightening Torque
(b): 130 N
.
m (13.0 kg-m, 94.0 lb-ft)
11) Clamp harness securely.
To Next Page
