6A1-24 ENGINE MECHANICAL (G13B, 1-CAM 16-VALVES ENGINE)

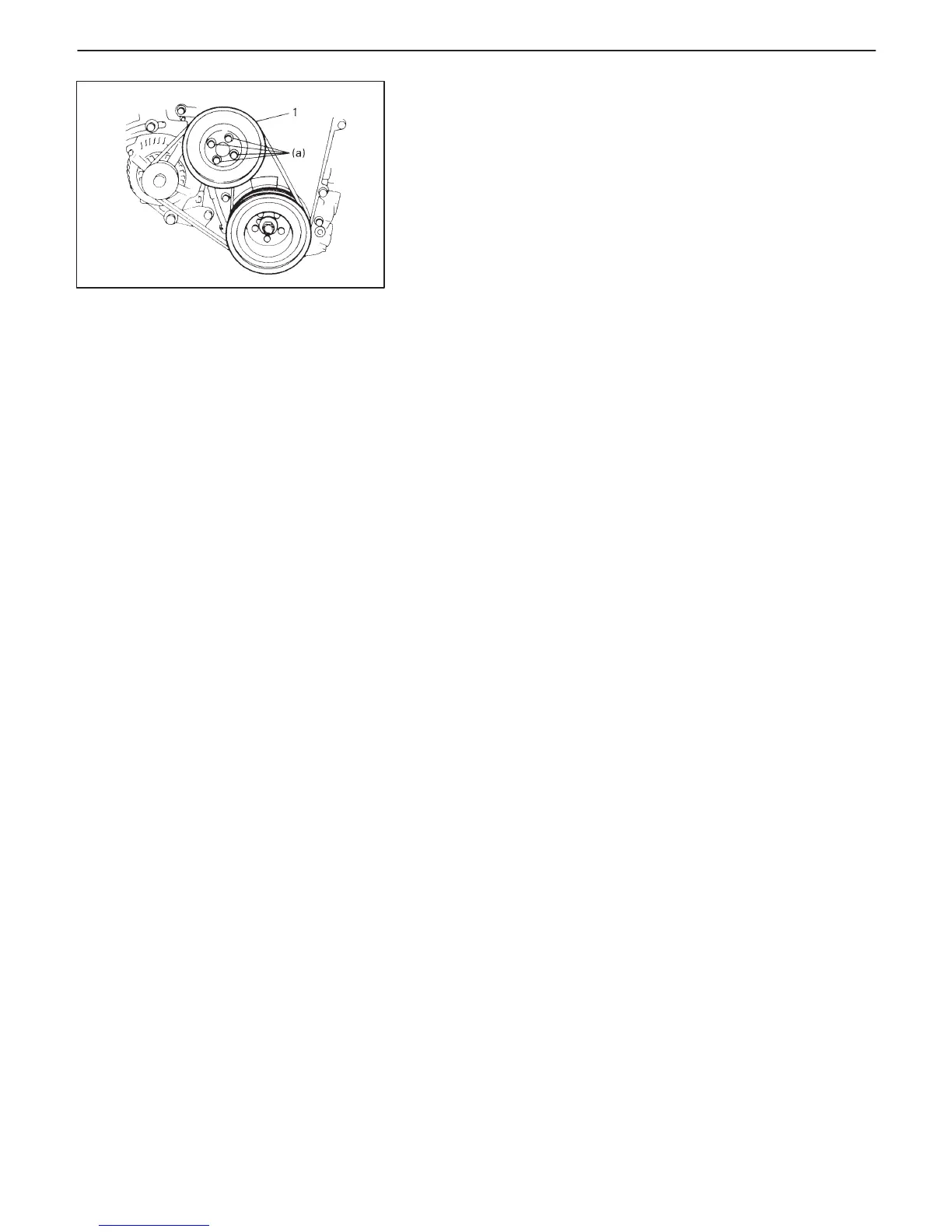

12) Install water pump pulley (1) and drive belt.
Tightening Torque
(a): 11 N
.
m (1.1 kg-m, 8.0 lb-ft)
13) Adjust drive belt tension referring to Section 6B.
14) Adjust power steering pump belt tension or A/C compressor
belt tension, if equipped.
Refer to Section 0B.
15) Install P/S hose stay (if equipped).
16) Install air cleaner case with air cleaner outlet hose.
17) Install right side of engine under cover.
18) Install clutch housing (torque converter housing for A/T) lower
plate.
19) Connect negative cable at battery.
To Next Page
