1. Accelerator cable
3. Lock nut
ENGINE AND EMISSION CONTROL SYSTEM (SFI FOR G13) 6E2-13
ON-VEHICLE SERVICE

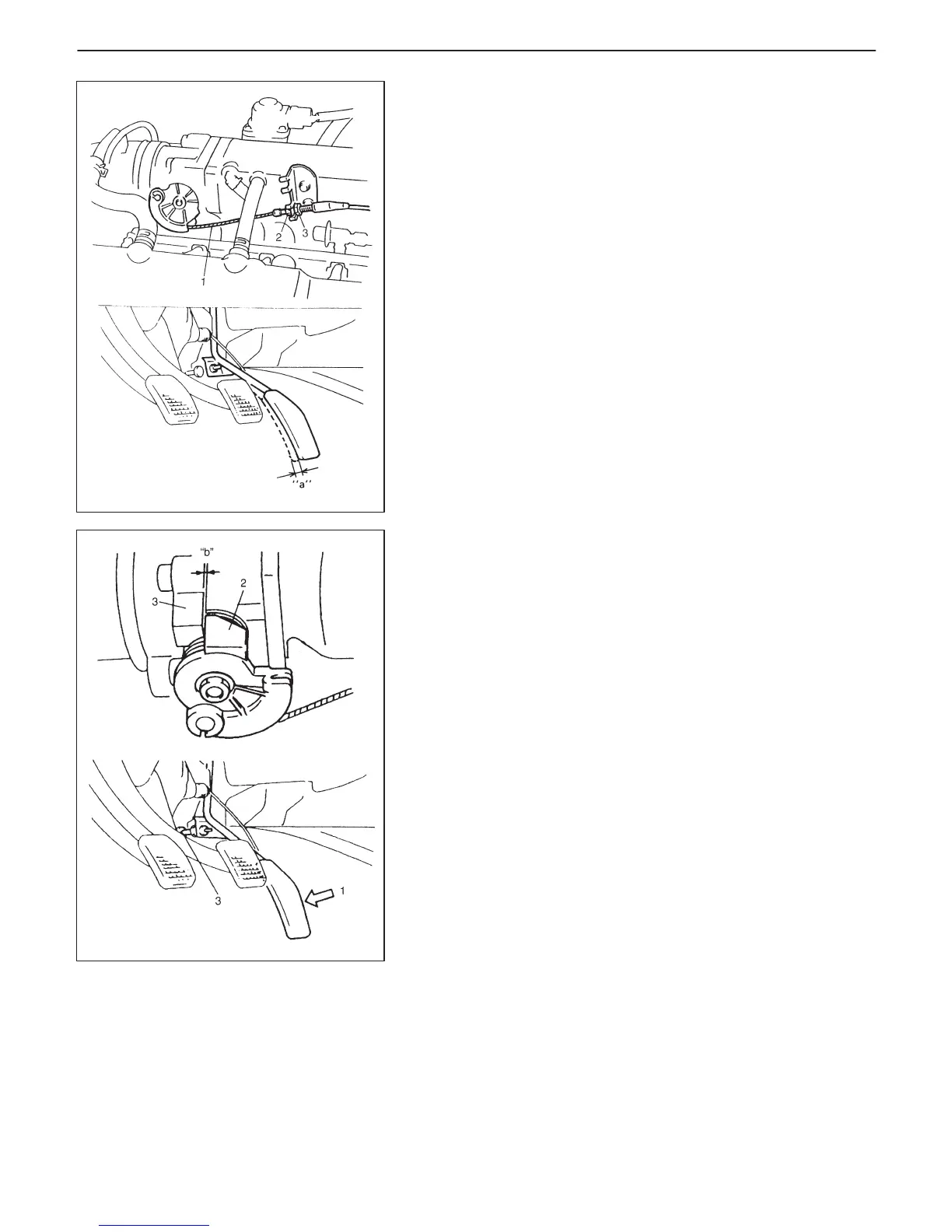

ACCELERATOR CABLE ADJUSTMENT
1) With throttle valve closed, check accelerator pedal play which
should be within following specification.
Pedal play “a”: 2 – 7 mm (0.08 – 0.27 in.)
If measured value is out of specification, adjust it to specification
with cable adjusting nut (2).
2) With accelerator pedal depressed fully (1), check clearance be-
tween throttle lever (2) and lever stopper (3) (throttle body)
which should be within following specification.
Clearance “b” : 0.5 – 2.0 mm (0.02 – 0.07 in.)
(With pedal
depressed fully)
If measured value is out of specification, adjust it to specification
with cable adjusting nut.
