ENGINE AND EMISSION CONTROL SYSTEM (SFI FOR G13) 6E2-15
CAUTION:
Do not disassemble IAC
valve. Disassembly spoils
its original performance
CAUTION:
Do not remove or adjust
throttle stop screw as it is
factory adjusted precisely

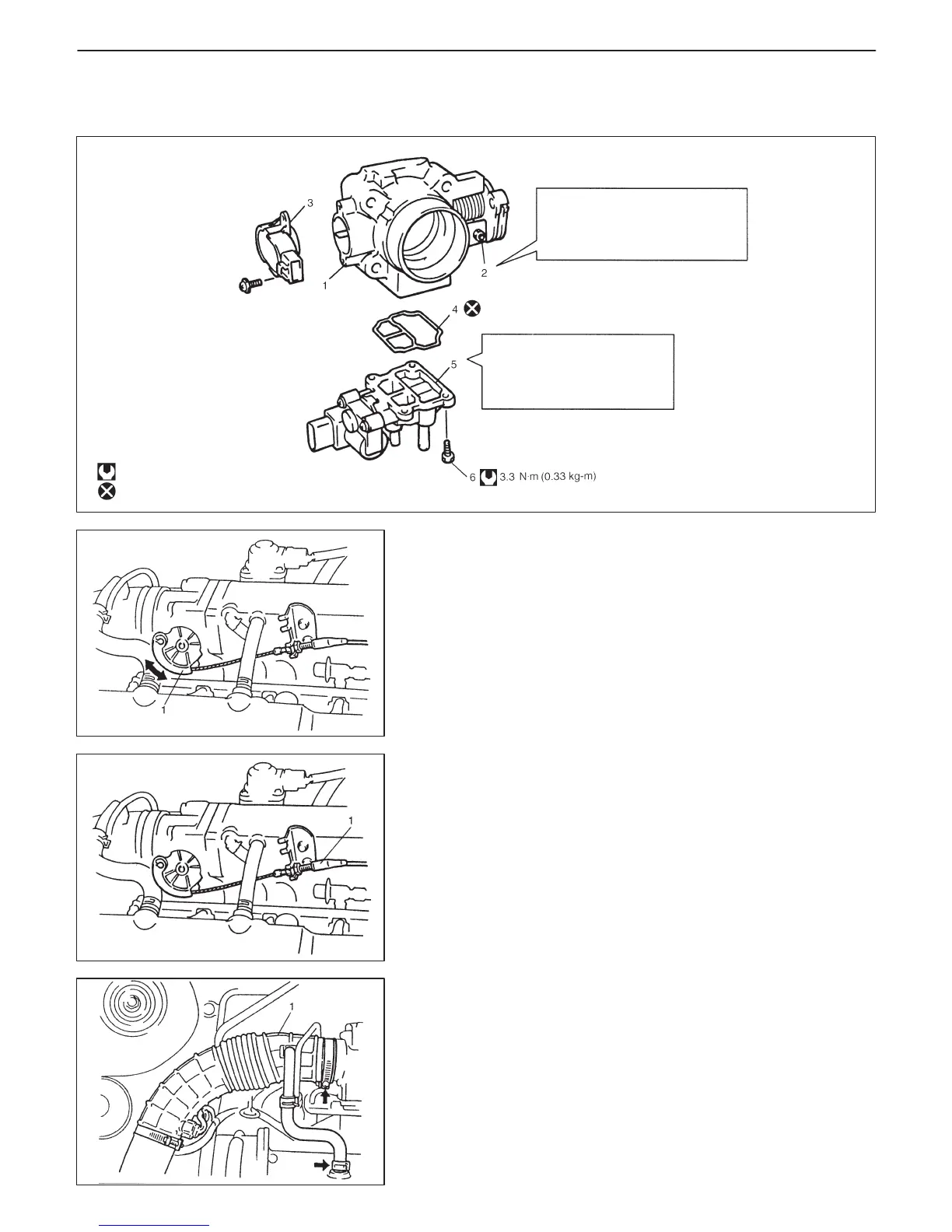

1. Throttle body
2. Throttle stop screw
3. TP sensor
4. O-ring
5. Idle air control valve
6. IAC valve screws
: Tightening torque
: Do not reuse
AIR INTAKE SYSTEM
THROTTLE BODY
On-Vehicle Inspection
D Check that throttle valve lever (1) moves smoothly.
Removal
1) Disconnect negative cable at battery.
2) Drain cooling system.
3) Disconnect accelerator cable (1) from throttle body.
4) Disconnect air cleaner outlet hose (1) from throttle body.
To Next Page
