6E2-16 ENGINE AND EMISSION CONTROL SYSTEM (SFI FOR G13)
1
2

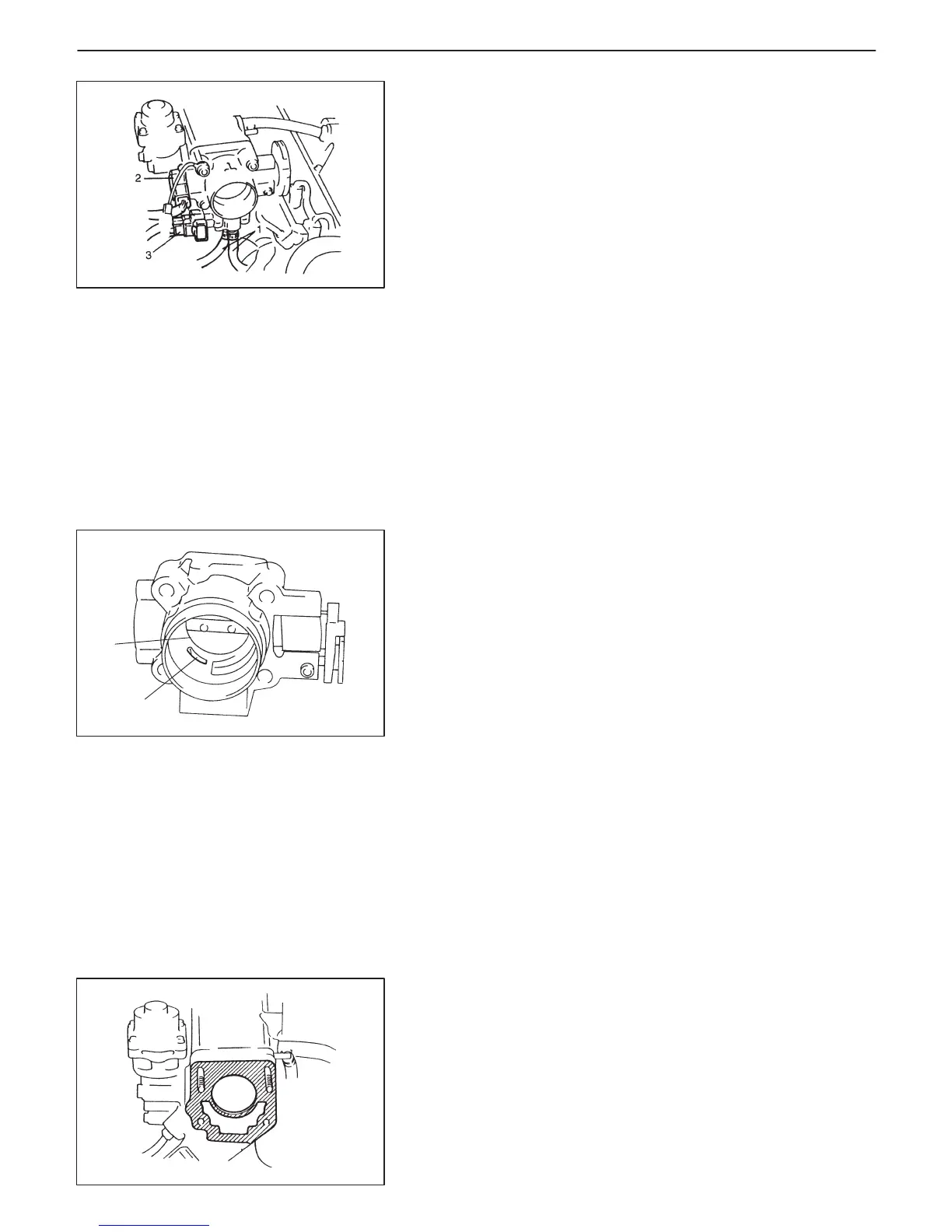

5) Disconnect electric coupler from TP sensor (2) and IAC valve
(3).
6) Remove throttle body from intake manifold.
7) Disconnect engine coolant hoses (1) from throttle body.
Disassembly
NOTE:
While disassembling and assembling throttle body, use spe-
cial care not to deform levers on throttle valve shaft or cause
damage to any other parts.
1) Remove TP sensor and IAC valve from throttle body.
Cleaning
Clean throttle body bore (1) and idle air passage (2) by blowing
compressed air.
NOTE:
TP sensor, idle air control valve or other components contain-
ing rubber must not be placed in a solvent or cleaner bath. A
chemical reaction will cause these parts to swell, harden or get
distorted.
Reassembly
1) Install IAC valve to throttle body referring to “IAC valve Installa-
tion” section.
2) Install TP sensor to throttle body referring to “TP sensor Installa-
tion” section.
Installation
1) Clean mating surfaces and install throttle body gasket to intake
manifold.
Use new gasket.
To Next Page
