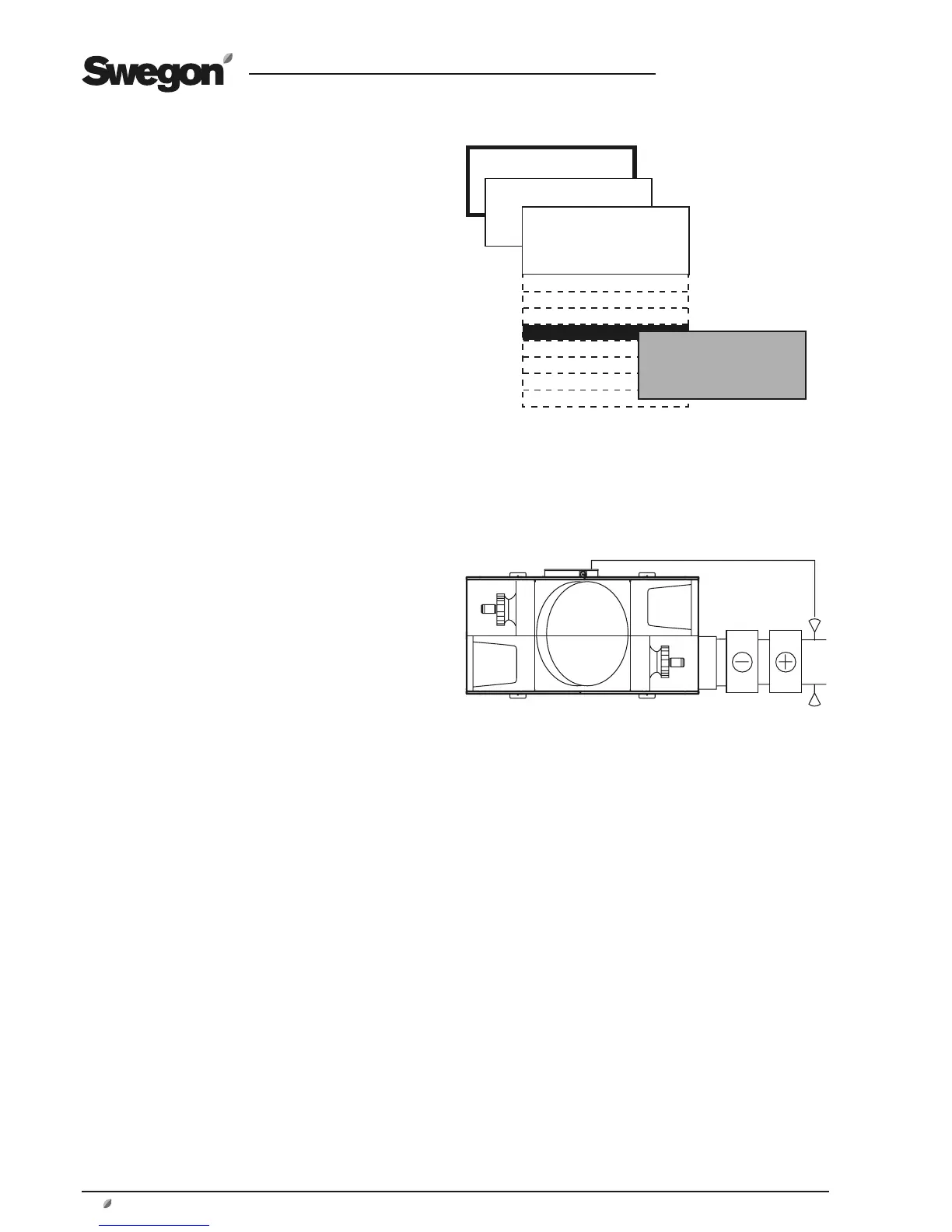

Example of dehumidification control
9.8 Humidity
Dehumidification control
The dehumidification function controls the moisture in the
supply air duct by switching in and switching out a cooling coil
and a postheating coil.
The function requires that a cooling coil be mounted upstream of
a postheating coil in the supply air duct, see the example to the
right.
The TBLZ-1-31-1 moisture sensor is mounted in the supply air
duct and its cable is connected to the appropriate terminal on
the GOLD unit.
Cooling energy is emitted to condense the moisture in the supply
air flow, which then is heated to the desired supply air tempe-
rature. This causes a reduction in the moisture content of the
supply air.
The cooling unit used must be sized so that the temperature of
the supply air will be below the dew point, otherwise no conden-
sation will arise and no dehumidification will occur.
Settings:
Value Setting Factory
range settings
Dehumidification Inactive/active Inactive
Supply air – rel. humidity (%RH) 10-90% 50%
