EXTRACTOR HOOD 524
1
2
3

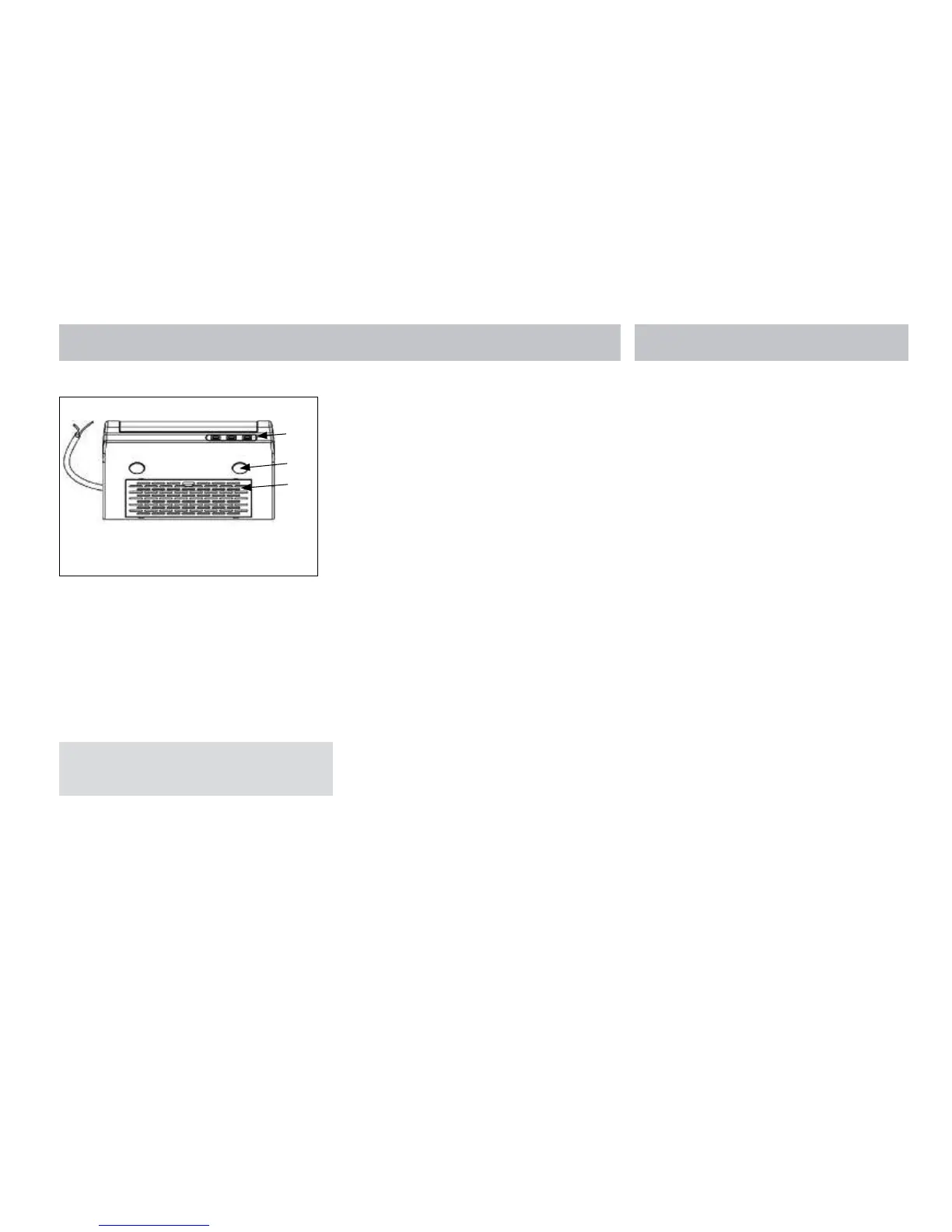

1 Operating panel
2 Light
3 Filter holder with grease filter
The extractor hood 524 serves to extract
water vapour from cooking areas in caravans
or campers. The integrated halogen lamps (2)
serve to illuminate the work surface.
The fan and the lighting (2) can be switched
independently via the operating panel (1). At
the same time. The integrated grease filter (3)
prevents the extraction system from being
contaminated from inside.
Safety information, always refer to
the user instructions provided with
your motorhome
Replacing the lamps
Lamp type: max. 10W /12V halogen with
UVStop
Always switch off the lights before replacing the
lamps! The lamps get very hot during operation.
There is a risk of being burnt. Wait until the
lamp has cooled down.
There is a risk of injury if the lamp is broken.
Remove the remainder of the lamp using
suitable tools only.
Replacing or cleaning the grease filter
Flip the front part of the grease filter downwards.
Pull it out towards you.
Remove the filter holder
You can now exchange the filter. Fix the new
filter in place with the filter holder. Finally,
reinstall the filter unit in the reverse order.
Always switch off the fan motor before
replacing the grease filter! There is a risk of
injury when reaching inside the running fan.
Replacing the grease filter
To replace the filter, proceed according to
figures 8 & 9.
Flip the front part of the grease filter downwards.
Pull it out towards you.
Remove the filter holder
You can now exchange the filter. Fix the new
filter in place with the filter holder. Finally,
reinstall the filter unit in the reverse order.
DOMETIC CK 155 COOKER HOOD
The fan filter
The fan filter that absorbs grease in cooking
fumes requires cleaning now and then, how
often depends on how much the cooker is used
and for how much the fan is in operation.
Do not wait until the suction power of the fan
begins to decrease noticeably.
Cleaning can easily be carried out with hot
water to which some synthetic detergent has
been added.
Technical data
Motor power 30 W
Voltage 12 V
Capacity 125 m3/h
Light 2 x 10W, 12V GU4
Spare part number for fuse: 385 80 65-01.
