6. Secure by tightening the Mast Locking
Collar and Wall Bracket

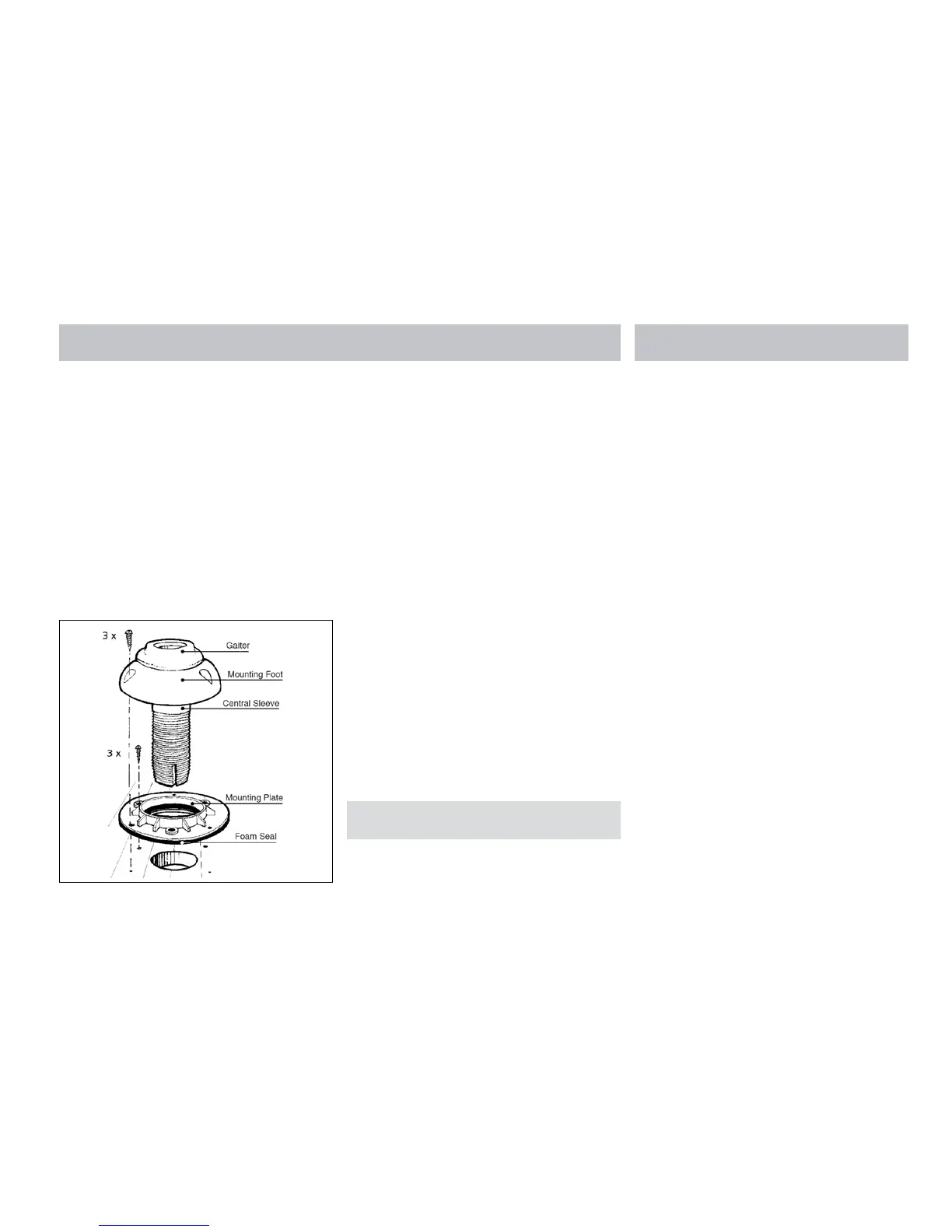

Removing the antenna
A permanently fitted Status can be easily
removed leaving only the Mounting Foot and
rubber gaiter.
1. Unplug the antenna from the Power Pack.
2. Loosen the Mast Locking Collar and
Wall Bracket and lift off whilst feeding
out the cable.
3. Push the Blanking Cap supplied into place.
IMPORTANT – The Blanking Cap is a temporary
seal and is not for long term use.
CD/MP3 PLAYER
Please refer to the separate instructions supplied
with the head unit for details of its operation.
REVERSE CAMERA FUNCTION
On vehicles fitted with a split rear view mirror,
the reverse camera image is displayed
constantly, when the ignition is on, even if the
vehicle is in a forward gear. The image can be
turned off, by switching off the mirror unit.
LCD TV/DVD/CD/MP3/DVB unit
Please refer to the separate instructions
supplied with the unit for details of its
operation.
With regard to Freeview TV and radio reception,
please note that the number of channels
available will vary according to the area,
and also on the signal strength available at
the location. Please ensure that the fitted
directional aerial is switched on, and raised and
directed toward the nearest transmitter before
scanning for channels.
It is illegal for the monitor to be used
whilst travelling in the forward direction.
MOTORHOMES WITH EXTERNAL
CO-AX CONNECTION
Depending on specification, the motorhome
may be fitted with an external co-ax connection
in place of, or in addition to, a roof mounted TV
aerial. The external co-ax connection point will
be within the battery box (Escape models) or
the mains inlet enclosure (Bolero, E500 series).
Co-ax connection within battery box
Within the battery box a White cover flap
conceals a push-on type co-ax connection. A
co-ax cable is fitted and connected within the
motorhome from the back of this connection to
the TV position within the motorhome.
An external TV aerial or site TV feed can be
connected to the external connection point;
signals from that connection will then be
available at the TV position co-ax socket within
the motorhome.
Co-ax connection point within the mains
inlet enclosure
A short co-ax lead featuring a screw on co-ax
connection will be present behind the Blue
mains inlet connector. A co-ax cable will be
fitted and connected within the motorhome,
from the back of this connection, to the primary
TV position within the motorhome. At the same
time, further co-ax cable or cables will be fitted
which route from a likely TV aerial position
