Equipment details
156
1
3
2
5x30 mm
Ø 10 mm

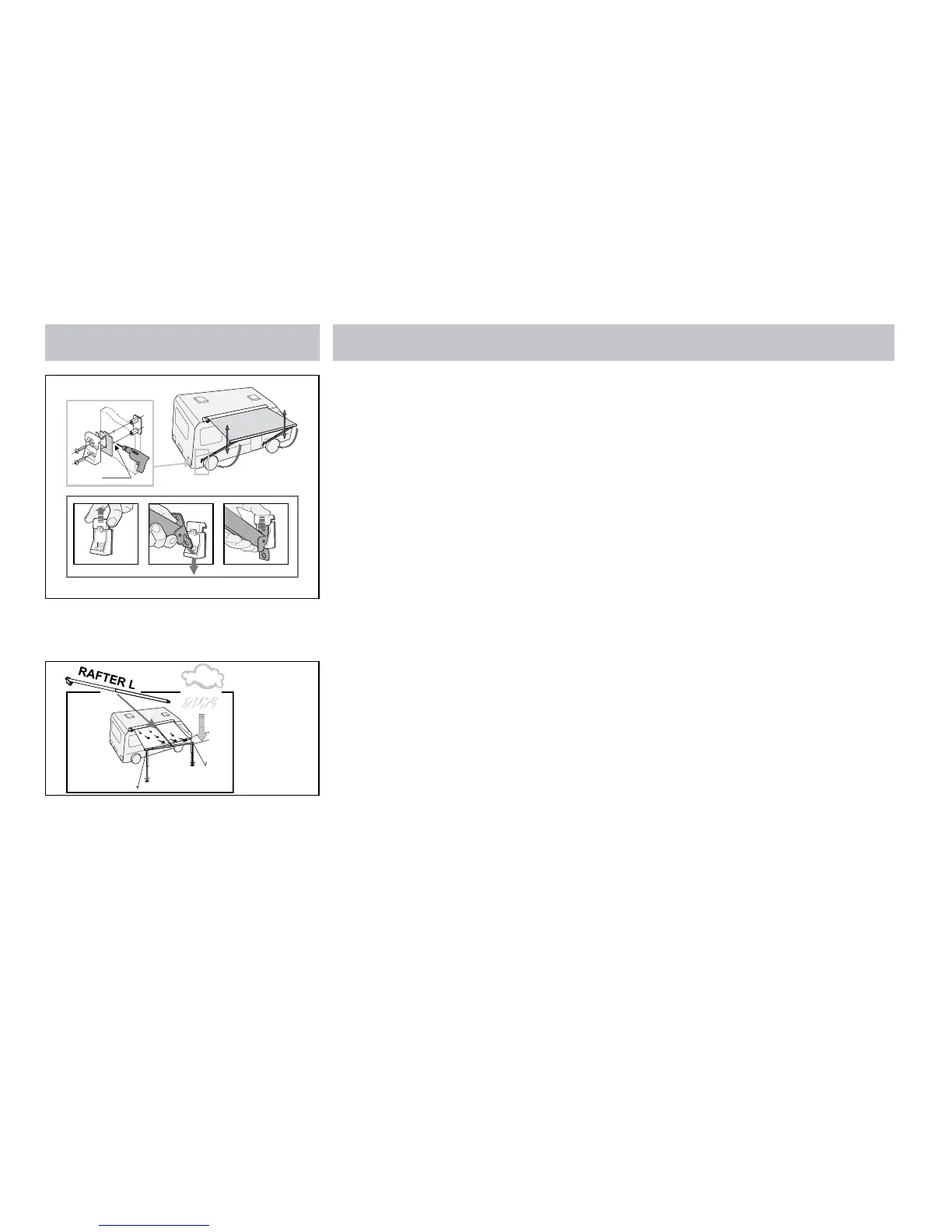

The support legs can also be fixed to the wall
brackets. The wall brackets can be fixed only in
reinforced points.
We remind you that the awning is a sun
protection, so please roll up your awning in case
of rain, wind or snow. Otherwise, please take
following precautions: Lower one side of your
awning, so that water can flow away and use
the tension rafter (not included for all awning
lengths).
Make sure that the awning can be correctly
rolled up. A damaged fabric does not allow a
correct rolling up of the awning. Never use the
awning with damaged canopy. Wash the canopy
with Fiamma BRILL. In case of problems, please
contact your nearest dealer.
STATUS 530 DIRECTIONAL TV AND
FM RADIO ANTENNA
(model dependant )
Firstly determine the approximate location
of the nearest transmitter and whether the
signals are horizontally or vertically polarized.
For assistance ask your site operator or check
antennas in the vicinity
1. Loosen the Mast Locking Collar and Wall
Bracket and raise the antenna. Turn the
mast to direct the Antenna towards the
TV transmitter.
The RED spot on the bottom of the mast
indicates the front of the Antenna.
2. When receiving vertically polarized signals,
rotate the winder anti-clockwise to cant the
antenna through 90°.
DO NOT over tighten or use undue force on
the winder.
DO NOT cant for vertically polarized signals
with the TELESCOPICS EXTENDED
3. Switch ON the Power Pack and the RED
LED will illuminate.
4. Check the gain control switch is set to
normal – NML.
5. Tune your television to the strongest signal.
You may need to adjust the direction of the
mast to achieve the best quality picture.
Fig. 7
Fig. 8
