Equipment details
151
the square connection according to fig. 5
(actions 1, 2 and 3), push the footboard in (4)
and tie it to the frame.
Current drawn
5 A. When fully extended or retracted: 14-18 A
Fig. 4
Fig. 5

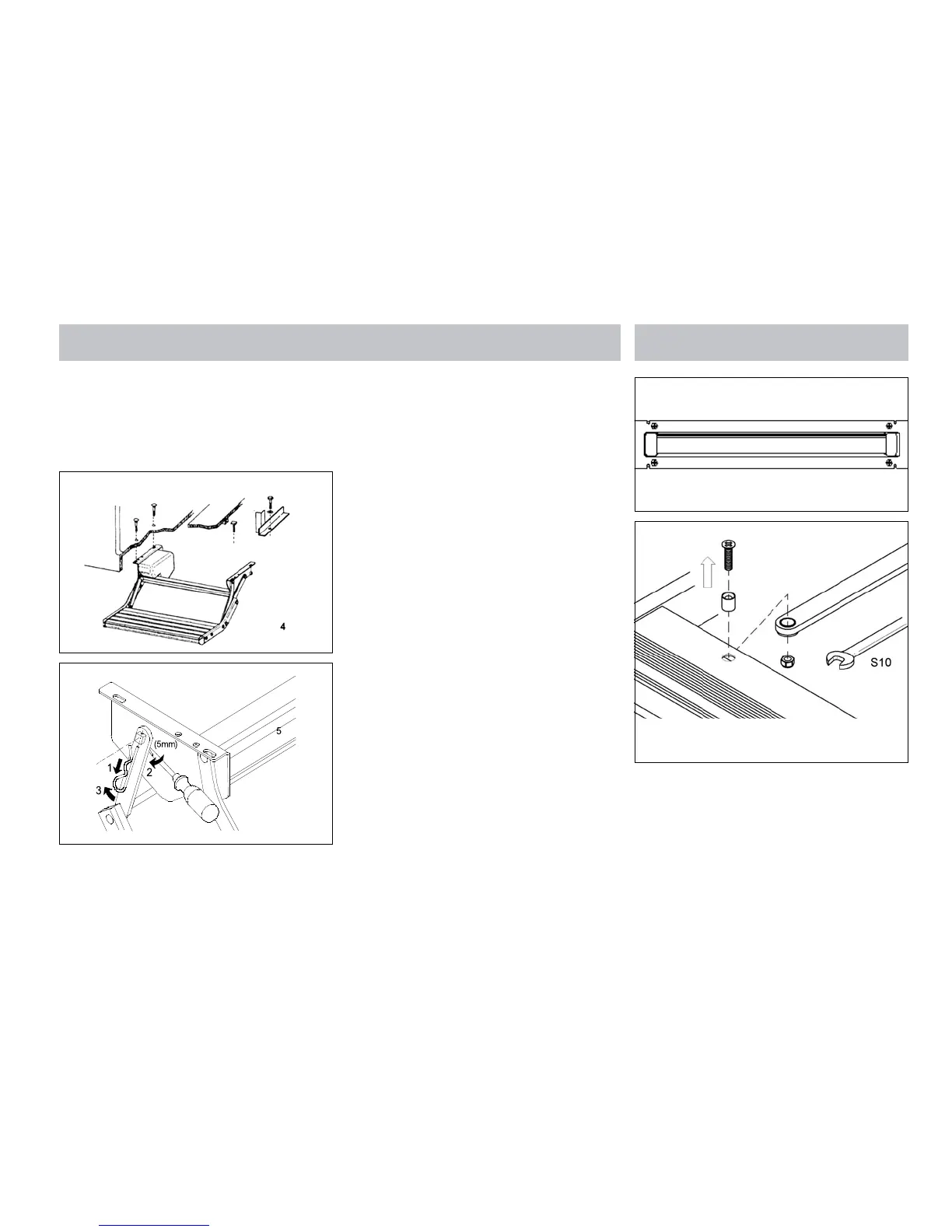

OMNISTEP SLIDE-OUT STEP
Operation
Press the “step out” key to bring the step out
until it reaches the end of its run or comes up
against an obstacle. The step does not come
out if the the engine is running. Press the “step
in” key to take the step back until it reaches the
end of its run or comes up against an obstacle.
The step goes back in automatically when the
engine is running. In this situation the buzzer
sounds until the step is fully closed.
Maintenance
Dirt and frost can prevent the step from
operating properly. In this case the rails and
moving parts should be cleaned or defrosted.
In case of electrical break down
If the step does not retract by the motor
- Remove the front plate of the step. (Fig. 1)
- Remove the connection between the
footboard and the arms (with screwdriver
and wrench S10). (Fig. 2)
- Slide out the footboard.
- Reinstall the front plate.
Current drawn
- Working current: 5 A
- Blocking current, when fully extended or
retracted: 14 A
Fig. 1
Fig. 2
